1t Mini Excavator, 2t Mini Excavator, 2t Mini Digger, 3t Mini Excavator, 3t Mini Digger
| US$34,000.00 | 1 Unit (MOQ) |
Basic Info.
Model NO.
NT28U
Type
Crawler Excavator
Usage
GM Excavator
Bucket
Grab Shovel
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.5~1.0m³
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Operating Weight
3200kg
Standard Bucket Capacity
0.10m3
Engine Model
Yanmar 3tnv88
Overall Dimensions
4460 X 1550 X26850mm
Rated Power/Speed
20kw/2400r/Min
Crawer Width
450mm
Max. Digging Height
4278mm
Max. Dumping Height
2988mm
Max. Digging Depth
2706mm
Hydraulic System
Doosan
Transport Package
Nude
Specification
CE/ ROHS/SGS/GMP
Trademark
NANTE
Origin
Luoyang, China
HS Code
84295212
Production Capacity
500 Units/Month
Product Description

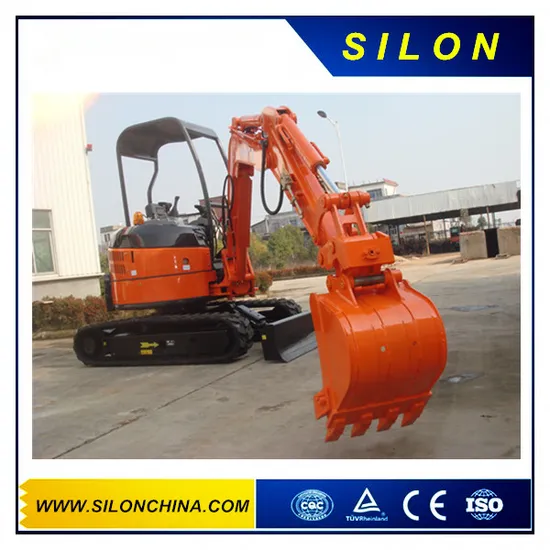

Hydraulic crawler excavators heavy machinery NT28U1. Operation weight: 3200kg
2. Standard bucket :0.10M3
3. Max. Digging height: 4278mm
4. Doosan hydraulic system
5. Engine: Janpanese Yanamr
6. Original KAWASAKI electronic system
7. Cabin with A/C, ROPS/FOPS
8. With break hammer
A. Precise matching design with advanced energy conservation control can reduce the oil consumption of the machine.
B. Low emission meets the Europe II standard.
C. The adoption of new cooling fan and large-scale silencer lowers the noise of the machine.
D. The adoption of the advanced turbocharging technique increases the highland adaptability of the machine.
E. Automatic preheating system improves the working capacity in the low temperature.
F. Unique fan cover with the shape of hopper opening greatly improves the air supply of the engine and the radiating capacity of the system, guaranteeing the successive high-efficient work of the machine.
G. Restart prevention system effectively avoids the misoperation, and improve s the use security of the machine.
Technical Parameters
Working Range | |
| Boom Length | 2281mm |
| Arm Length | 1170mm |
| Max Digging Reach | 4791mm |
| Max Digging Depth | 2706mm |
| Max Digging Height | 4278mm |
| Max Dumping Height | 2988mm |
| Mini Swing Radius | 2130mm |
| Rear Swing Radius | 800m |
| Max Ground Digging Range | 4642mm |
| Max Vertical Digging Depth | 2575mm |
Performance Parameter | |
| Machine Weight | 3200kg |
| Engine Model | YANMAR 3TNV88 |
| Power | 19.8kw/2400rpm |
| Hydraulic System | 40.5+3.5mpa |
| Swing System | 10rpm |
| Travel Speed | 0-4.5km/ |
| Bucket Digging Force | 17.8kn |
| Arm Digging Force | 13.4kn |
| Grade Ability | 30% |
| Ground Pressure | 29kp |
Overall Dimension | |
| Overall Length | 4460mm |
| Overall Width | 1550mm |
| Overall Height | 2685mm |
| Mini Ground Clearance | 225mm |
| Ground Contact Length of Track | 2125mm |
| Track Gauge | 1250mm |
| Buck Capacity | 0.10m3 |
