Save Energy High Standard TM220II Injection Molding Machinery for Auto Parts

Product Description

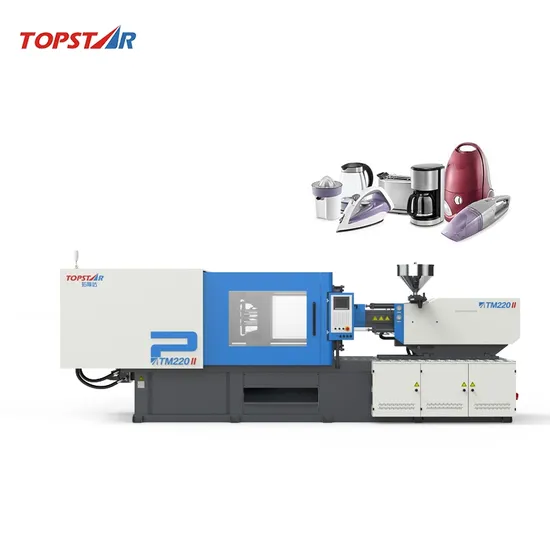

Topstar 90-470Ton Horizontal Injection Molding Machine for Households Plastic Products

Product Description:
The TM II series injection molding machine has the ability to mold dense plastic products with complex appearance, precise dimensions or metal inserts in one go. It's widely used in electronics, packaging, 3C, auto parts and FMCG industries, etc.
Product Features:
1. Strong engine, efficiency increase.
2. Configuration promoted, stable to use.
3. Optimized design, energy saving and reliable.
4. Highly integrated, accurate and efficient.
Accessory Introduction:
1. Standard KEBA controller, PHASE motor, DELTA drive, with self-developed control program, more precise production control.
2. Standard configuration of plating screw and temperature control of the offload, higher production efficiency, and wider application range of rubber materials.
3. Optimized clamping design, higher strength and more stable.
4. Diagonal double carriage cylinders and linear guide, more accurate and stable injection.
5. Pre-plasticizing adopts proportional back pressure control, easy to operate. Multi-stage back pressure setting can be realized, with higher precision and improved plasticization quality.
6. Precision PVD alloy screw head set, adapt to a wider range of plasticizing requirements.
Parameter Table:

INJECTION UNIT	UNITS	TM220II
Screw Diamete	mm	45	50	55
Screw L/D Ratio	L/D	22.2	20.0	18.2
Screw Stroke	mm	210	210	210
Shot Volume	cm3	334	412	499
Shot Weight(ps)	g	304	375	454
	oz	10.7	13.2	16.0
Injection Pressure	kgf/cm3	2299	1862	1539
Injection Rate	cm3/s	190	235	284
Injection Rate	mm/s	120	120	120
Screw Speed	rpm	200
Nozzle Contact Force	t	6.2
Nozzle Stroke	mm	340
CLAMPING UNIT	UNITS	TM220II
Clamping Force	t	220
Opening Stroke	mm	490
Platen size(H×V)	mm	790*790
Space Between Tie Bars(H×V)	mm	530*530
Mlould Thickness (Min)	mm	180
Mlould Thickness (Max)	mm	560
Max. Daylight	mm	1050
Ejector Force	t	6.7
Ejector Stroke	mm	160
Locating Ring	mm	125
POWER/HEATING UNIT	UNITS	TM220II
System Pressure	kgf/cm3	175
Pump Power	kw	26
Heating Power	kw	13.6
Number of Temp Control Zones	-	3+1
OTHERS	UNITS	TM220II
Machine Dimensions(LxWxH)	m	6.1*1.54*2.19
Oil Tank Capacity	L	300
Machine Weight	t	6.7
Platen Dimensions
Platen Dimensions

Note: Due to the continuous development of technology, improvement and update of design, the above specifications are subject to change without prior notice.
