China Best Price 1 Ton Small Excavator Micro Excavator Mini Digger
| US$3,800.00-5,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
10
Usage
Special Excavator
Bucket
Grab Shovel
Transmission
Hydraulic Transmission
Drive Type
Electric Drive
Bucket Capacity
>1.5m³
Size
Medium-Sized
Certification
CE, ISO9001: 2000
Condition
New
Rated Speed
1.5 Km/H
Maximum Digging Height
2610 mm
Maximum Digging Depth
1650 mm
Max Digging Radius
2850 mm
MOQ
One Unit
Application
Construction Digging
Engine Brand
Changchai
Power
8.2kw/3600rpm
Machine Weight
1000kg
Transport Package
Packed in Wooden Case
Specification
2775*930*2219mm(L*W*H)
Trademark
MDL
Origin
China
Product Description

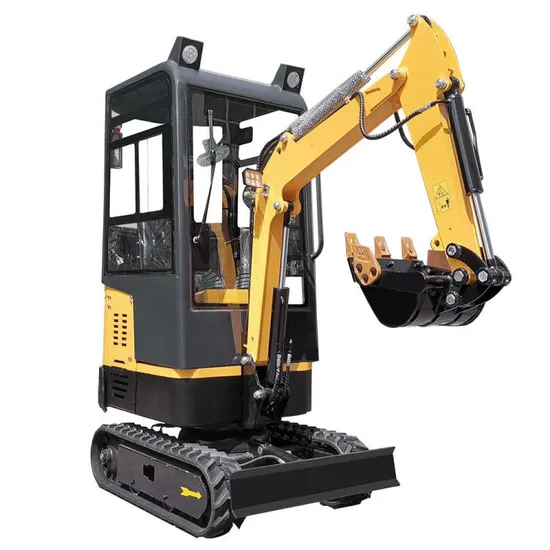

1 ton Excavator with Cabin
EPA/CE,ISO certificate Optional: Boom swing
Color can choose Red, Yellow, Blue, accept customized.
This one is Customer customized Colour and with retractable tracks
This Mini Excavator is designed for small works, small projects, in Garden, farmland ,Municipal works, vagetable greenhouse, digging trench.
It is with small engine, simple design, easy to maintain.
Product Parameters
| Performance Parameter | |
| Weight | 1000 kg |
| Digging bucket capacilty | 0.025 cbm/120kg |
| Bucket width | 380 mm |
| Engine | CHANGCHAI |
| Optional Engine | BRIGGS & STRATTON, Koop, Yanmar |
| Bore stroke | Single cylinder, fan cool |
| Rated power | 8.2 kw/3600r/min |
| Main pump | G5-6 |
| Displacement | 6.8 ml/r |
| Swing motor | SANYANG |
| Traveling motor | SANYANG |
| Travel speed | 1.5 km/h |
| Main Demensions | |
| Overall dimension ( L*W*H ) | 2775 * 930 * 2219 mm |
| Wheelbase | 910 mm |
| Total length of track | 1230 mm |
| Platiorm ground dearance | 380 mm |
| Platform back tuming radius | 784 mm |
| Chassis widh | 896 mm |
| Track width | 180 mm |
| Chassis ground clearance | 132 mm |
| Track height | 320 mm |
| Operating Range | |
| Max. Digging depth | 1650 mm |
| Max. Vertical digging depth | 1375 mm |
| Max. Digging height | 2610 mm |
| Max. Dumping height | 1850 mm |
| Max. Digging radius on ground | 2850 mm |
| Min. Rotation radius | 1330 mm |
| Max. Upgrade height of blldozer blade | 345 mm |
| Max. Digging depth of bulldozer blade | 255 mm |
Company Profile
Packaging & Shipping
FAQ
1.What kind terms of payment can be accepted?For terms of payment, L/C, T/T, Western Union (can be) could accepted.2. What certificates are availble in Machinery?For the certificate, we have ISO,EPA,SGS and CE.3.What about the delivery time?7-20 days after receiving the deposit.4.What about the warranty time?12 months after shipment or 2000 working hours, whichever occurs first.5.What about the Minum Order Quantity?The MOQ is 1 pcs.
6.How to show your manufacture to customers?It depends on you,if you have time,you can come to visit our manufacture. If you do not have time,then we can have vedio call,then show you around our workshop. Our workshop is working from 8:00 am to 5:00pm in Beijing Time!
