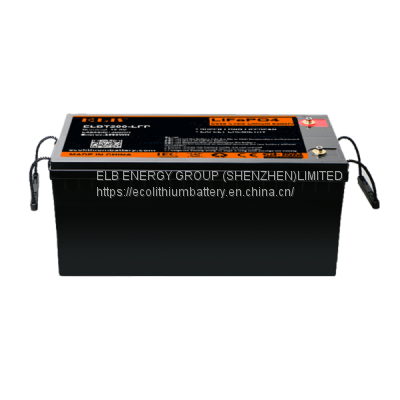

12V 200Ah LiFePO4 Battery
Product Details
Product Details
Product Description
Product DescriptionThis 12v 200ah battery is a LiFePO4 lithium chemistry. Which offer BMS controlled safety, long life,fast-charging performance, also the BMS embeds smart balancing algorithms that control all cell voltages in the battery, making sure they are constantly at the same voltage level, optimizing battery capacity.
| ELECTRICAL SPECIFICATION | |||
| Nominal Voltage | 12.8V | ||
| Nominal Capacity | 200AH | ||
| Stored Energy | 2560Wh | ||
| Resistance | 35 mΩ | ||
| Self Discharge Rate | Maximum Continous Charge Current | 100A | |
| Maximum Continous Discharge Current | 100A | ||
| Charge Cut-off Voltage | 15.6 V | ||
| Discharge Cut-off Voltage | 10V | ||
| Cycle life(25°C) | >4000 times@80%DOD | ||
| MECHANICAL SPECIFICATIONS | |
| Dimensions (mm) | L520×W268×H228 |
| Weight | 24KG |
| Terminal Type | M8 |
| Case Material | ABS |
| Enclosure protection | IP64 |
| TEMPERATURE SPECIFICATIONS | |
| Discharge Temperature | 0 to 55°C |
| Charge Temperature | -10 to 55 °C |
| Storage Temperature | -20 to 60 °C |
| OTHERS SPECIFICATIONS | |
| Short Circuit Protection | Automatically recover after removal of short |
| Life Expectancy (years) | 10 years at one cycle per day |
The Certification that ELB Got:
ELB Battery certification
Check details in ELB certification center.
