Highway Railway Tunnel Slope Small Portable Concrete Shotcrete Machine with Pump

Product Description

Product Description
DYP-90 series hydraulic wet shotcrete machine is a pumping type concrete wet shotcrete machine,which adopts hydraulic pumping type, with high system reliability and stable delivery capacity.The hydraulic wet spraying machine can be used for grouting, filling, grouting, pumping and other construction.Continuous adjustment of injection quantity and the main oil pump adopts variable piston pump, and the injection speed can be adjusted freely .The adding amount of accelerator is continuously adjustable, which can be adjusted steplessly according to the spraying amount.DYP-90 hydraulic wet spraying machine is widely used in construction of highway, railway, tunnel and hydropower station etc.

Model	DYP-90A	DYP-90
Production capacity	3-9m³ /h (Continuously VariableTransmission)	3-9m³ /h(Continuously VariableTransmission)
Main motor power	22KW	22KW
Aggregate diameter	≤ 15mm	≤ 15mm
System max.pressure	16Mpa	16Mpa
Working air pressure	0.4-0.6Mpa	0.4-0.6Mpa
Concrete slump	12-18cm	12-18cm
Max.spraying distance	horizontal 100m, vertical 60m	horizontal 100m, vertical 60m
Cylinder	140mm	140mm
Cylinder stroke	580mm	580mm
Electric control system	Wireless remote control	LCD display, plug-in appliances
Lubrication system	Automatically	Automatically
Accelerator pump	0-1000L/h (Continuously VariableTransmission)	0-1000L/h (Continuously VariableTransmission)
Mixing system	None	0.5m3 mixing tank
Tire	Four-wheel solid tire	None
Total Weight	1500Kg	2300KG
Dimension	3200 * 1350 * 1300mm	3450 * 1550 * 1650mm

Performance characteristics:1. Large transmission capacity and high comprehensive efficiency.
2. Long spraying distance up to 100m horizontally and 60m vertically.
3. One machine can be used for multiple purposes which can be used not only as a wet spraying machine, but also as a concrete delivery pump or mortar pump.
4. Key components from well-known domestic manufacturers are used to ensure high reliability of equipment.
5. The adding amount of accelerator is continuously adjustable and it can be adjusted steplessly according to the spraying amount.
6. Equipped with automatic lubrication system,the service life of wearing parts is greatly extended.
7. Four wheel solid tire, easy to move, and easy to operate and maintain.
8. The hydraulic oil is cooled by air which is simple and environmentally friendly.
9. Low resilience. With wet spraying technology, the resilience rate can even be reduced to less than 10%, and effectively
saving costs.
10. The concentration of dust beside the machine and outside the nozzle is reduced, so that it can eliminate the harm to workers' health.More shotcrete machine options:

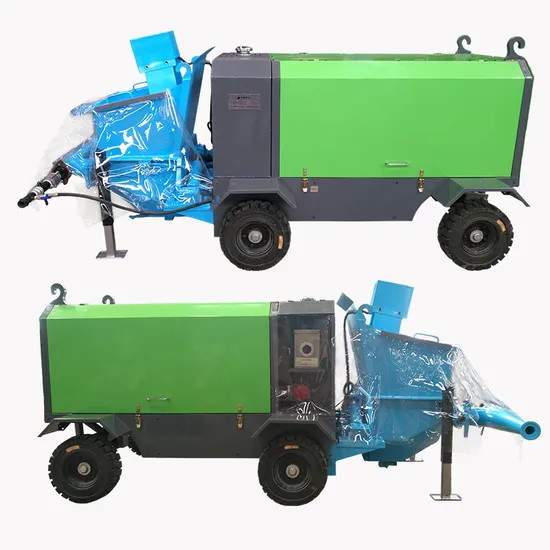

Detailed Photos
Application
Customer visiting

Packaging & Shipping


Company Profile
Zhengzhou Sinogrout Machinery Co., Ltd. Located in Zhengzhou City, is specialized in machinery in China over 20 years. Our company focuses on R&D, production and sales of mining, tunnel construction and bridge construction equipments and so on.
Our products include mud pump, shotcrete machine, robotic shotcrete system with arms,hydraulic grouting pump, grout mixer and agitator, concrete pump, hydroseeding machine,etc.
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
Our products are widely recognized and trusted by domestic and foreign Customers; And have been exported to more than 50 countries and regions in the world, including: Germany, Singapore, USA, Russia, Vietnam, Myanmar, Malaysia, South Africa, Brazil, India and other countries, and win the good reputation of the clients all over world with reliable service. You can be rest assured that All the products with high quality meet international standards and have won a good reputation at home and abroad.
FAQ
1.Why buy machines from us?
Our factory is specialized in machinery in China over 20 years and our products are widely recognized and trusted by domestic and foreign customers.
2. How can we guarantee quality?
We stick to the principle of "quality first". There will be inspection and machine test-run before shippping. Support 3rd party inspection before balance payment.
3.What is the payment term?
TT or LC for your option. Generally 30% deposit for placing order and 70% balance payment before shipping.
4. How long is your delivery time?
Generally 7-10 days if the goods are in stock. If custom design needed, generally it takes about 15-30 days.
5.Do you have agent?
Now we have agent in Singapore and still looking for more agent in other countries. Welcome to contact us if you interest in it.
