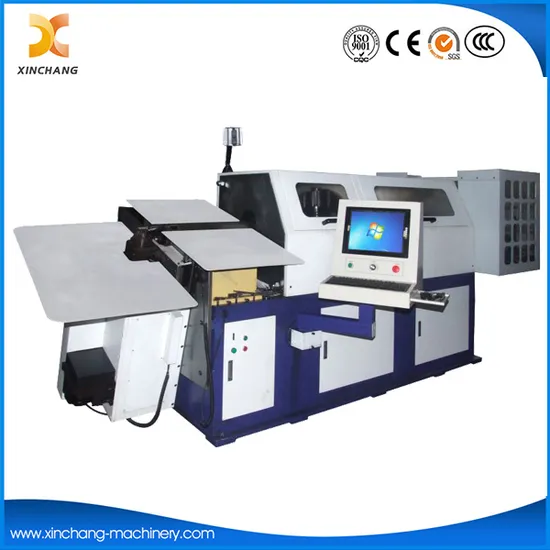

7 Axis 2D and 3D CNC Wire Rod Forming Bender Bending Machine

Product Description

7 Axis 2D and 3D CNC Wire Rod Forming Bender Wire Bending Machine Product Description
1. Application The wire rod forming machine can produce wire rods with a diameter of 2.0-12.0mm. The machine adopts a special computer control system for wire rod forming machines and imported high-precision servo motors. The computer has Chinese and English interfaces, easy to operate and accurate positioning. It can store hundreds of processing programs with different specifications, which can shorten the time for the next debugging. According to the working conditions of the screen, the outer diameter and angle of the product can be corrected at any time. The automatic stop design and automatic acceleration function of the bobbin when the wire is disconnected, broken or tangled makes the production easier and more effective. Applicable to production: car seat suspension spring, sun visor frame, car door lock lever, handicraft metal wire, sanitary ware tableware bracket, storage cage, shopping cart and other wire forming equipment.
2. Features 1. There are 7 sets of straightening wheels in the vertical and horizontal directions to ensure the straightness of the wire feeding.
2. There are 3 sets of wire feeding wheels, the accuracy is 280mm±0.1mm
3. Elevating working table is suitable for bending long wires
4. Equipped with a wire tidying mechanism, the wire will not be tangled
3. Advantages 1. The computer can be turned on and off quickly, the operation is simple and convenient, and it supports multi-language operation. The computer interface can change the program while producing and adjusting the speed.
2. The configuration adopts all imported high-precision high-speed servo motors and all imported reducers, and the stable and durable production speed is more than 30% higher than that of similar products in domestic counterparts.
3. The program can realize that there is no change in the angle when the angle is bent at different speeds, and the production stability is better.
4. Imported accessories are used for important parts such as bearings and gears, and the equipment is durable and reliable.
5. High precision, can make wire forming products within the range of 2.0-14 mm wire diameter, and the error is reduced to 0.1 mm 6.Perfect after-sales service system, free technical training support! Equipment maintenance for life! Product Parameters

Model	CNC-7-60	CNC-7-80	CNC-7-120	CNC-7-140
Wire diameter	2-6mm	3-8mm	4-12mm	5-14mm
Axis numbers	7	7	7	7
Wire feeding precision	±0.01-±9999.99	±0.01-±9999.99	±0.01-±9999.99	±0.01-±9999.99
Cam precision	±0.01°-±359.°	±0.01°-±359.°	±0.01°-±359.°	±0.01°-±359.°
Feeding length	limitless	limitless	limitless	limitless
Speed of feeding	100m/min	100m/min	100m/min	100m/min
Feeding axis servo motor	2.7kw	2.7kw	4.5kw	11kw
wire turning axis servo motor	1.2kw	1.2kw	2.7kw	4.5kw
Bending axis servo motor	0.75kw	1.2kw	2.7kw	5.5kw
Lifting servo motor	0.75kw	0.75kw	2.7kw	2.7kw
Twisting & Lifting servo motor	0.75kw	0.75kw	2.7kw	2.7kw
Turning center axis servo motor	1.2kw	1.2kw	2.7kw	5.5kw
Cutting axis servo motor	0.75kw	0.75kw	2.7kw	4.5kw
overall size	290x190x170cm	410x200x190cm	425x200x190cm	445x200x190
Machine weight	2000kg	2800kg	3800kw	4000kg

Main configuration

Parts name	Brands
Servo motor & encoder	Sanyo
Guide rails & ball screw	Hiwin
Switching power supply	Meanwell
Touch screen	AUO Taiwan
Frequency converter	Delta
CNC system	Topcon Japan
Bearings	NSK
Reduction gears	Neugart Germany/PHT of Taiwan
Keyboard	Logitech
Computer	Topcon Japan

Detailed Photos
Company Profile
We, Ningbo Xin Chang Machinery Co.,Ltd are a professional designer and manufacturer in friction welding machine, resistance welding machine and Heat exchanger equipment. Our factory is in this line more than 20 years, we have more than 10 senior mechanical and electrical specialists and total more than 200 staff, our machine is famous in China. We have CCC, ISO9001 and CE certificates.
Over the years, we have exported so many machines to 30 and more countries, such as France,Spain,Poland,Russia,Indonesia,Vietnam,Pakistan,India,Mexico,Egypt etc.
Our main products are Heat exchanger equipment, Friction welding machine, spot welding machine, projection welding machine, butt welding machine, seam welding machine, multi head welding machine for wire mesh, and other various special welding machine for metal connection in different industries.
We always adhere to the management idea of "Integrity, profession, innovation, and win-win", to make Xin Chang becomes trustworthy enterprise of customers. Good product quality, perfect after-sales service, and professional technical support make customers choose no regrets and worry-free use.
FAQ
1.Q: What about your standard delivery date ?
A: Usually 30-60 working days. Our company provide just-in-time delivery
2.Q: How can you guarantee quality?
A: You could test samples before order,and we have professional QC and precise machining equipment; Always final Inspection before shipment;
3.Q: How long is the guarantee?
A: For one year after the custumer received the machine.
4.Q: What do we need to do if the machine fails?
A: In the guarantee time (1 year),we will send the spare parts to you for free,and provide the technical consultant for any time.
5.Q: Can I make my own design and logo on the product?
A: Yes, we do OEM.Welcome global partners.
6.Q: what is the packing mode?
A: wooden case or FCL with container.
7.Q: what is your after-sell service?
A: After-Sales
1) Training your workers how to install the machine, how to use the machine.
2) Engineers available to service machinery overseas
3) 1-year guarantee ( free maintain in a year)
4) Replacement parts and other accessories provided
