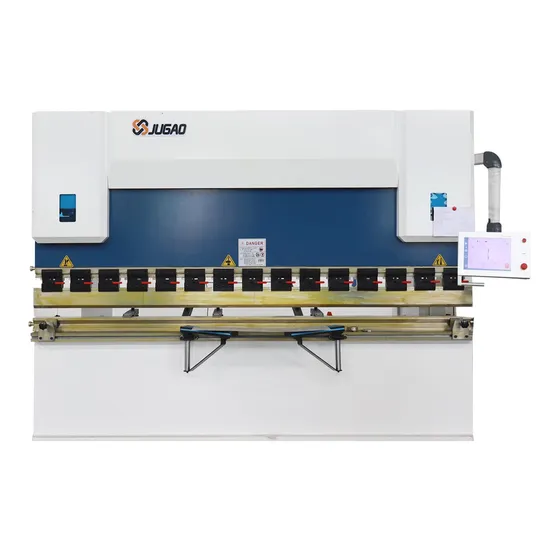

Jugao CNC Carbon Steel Plate Hydraulic Press Brake Stainless Steel Bending Machine

Jugao CNC Carbon Steel Plate Hydraulic Press Brake Stainless Steel Bending Machine

US$4,500.00-12,500.00 1 Piece (MOQ)

Basic Info.

Certification
CE
Automation
Automatic
Suitable for
Plastic, Rubber, Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Type
Press Brake
Main Motor
Siemens From Germany Brand
Tubing Connector
Emb Form Germany Brand
Hydraulic System
Bosch-Rexroth Form Germany
Electrical Components
Schneider Electrical From French
Servo Motor/ Servo Drive
Yaskawa From Japan Brand
Product Name
CNC Press Brake Machine
Control System
Cybtouch 15 PS CNC Controller CNC System
Transport Package
Wooden Cases for CNC Press Brake
Trademark
JUGAO
Origin
China
Production Capacity
30set/Month

Product Description

JUGAO CNC Carbon Steel Plate Hydraulic Press Brake Stainless Steel Bending Machine
1. Multi-language CNC operating system
2. Silent and reliable internal gear pump
3. Hydraulic system regulated by proportional valves
4. Combination of brushless drive and motor with "can open" digital technology, high precision backgauge which permits permits fast movements of the axes.
5. High precision optical lines
6. Adjustable clampings
7. Hardened, grinded tools and clamps for quick tools adjustment
8. Complete backgauge fingers on double linear guide
9. Stainless steel front supports adjustable in height
10. Automatic mechanical crowning
11. Electrical panel with high quality components
12. European safety standards Start&Stop system
The CybTouch 15 PS is a 2D numerical controlspecifically dedicated for entry to mid-range CNCpress-brakes.it comes in a compact housing.similarly to the well-known CybTouch range in thefield, but offering a bigger touchscreen and a newhorizontal design.As the entire CybTouch range,the CybTouch 15 PSfeatures an intuitive touch screen user interface,offering a high integration of functionalities.Thanks to its large keys, online help, user-friendlyHMl and many automatic functions that constantlyguide the operator, the CybTouch 15 PS is simplypowerful and userfriendly.The CybTouch 15 PS is integrated into a sleek andmodern housing or can optionally also be deliveredas a robust panel.
Technical parameter
Model Nominal Pressure (kn) Length of table (mm) Distance Between Housing (mm) Throat Depth (mm) Stroke (mm) Open Hight(mm) Main Motor (kw) Dimensions (L × W × H)(mm)
40/2000 400 2000 1600 200 110 335 4 2545×1510×2050
40/2500 400 2500 2000 200 110 335 4 2950×1510×2080
63/2000 630 2000 1600 250 110 350 5.5 2555×1600×2130
63/2500 630 2500 2000 250 110 350 5.5 2960×1600×2180
63/3200 630 3200 2600 250 110 350 5.5 3740×1600×2230
100/2500 1000 2500 2000 350 150 400 7.5 2980×1650×2330
100/3200 1000 3200 2600 350 150 400 7.5 3740×1650×2355
100/4000 1000 4000 3200 350 150 400 7.5 4550×1650×2450
100/5000 1000 5000 4000 350 150 400 7.5 5100×1500×2650
125/2500 1250 2500 2000 350 150 410 7.5 3980×1650×2370
125/3200 1250 3200 2600 350 150 410 7.5 3750×1650×2450
125/4000 1250 4000 3200 350 150 410 7.5 4550×1650×2470
125/5000 1250 5000 4000 350 150 410 7.5 5100×1500×2795
125/6000 1250 6000 4500 350 150 410 7.5 6100×1500×2895
160/2500 1600 2500 2000 350 150 425 11 2980×1715×2410
160/3200 1600 3200 2550 350 150 425 11 3750×1715×2450
160/4000 1600 4000 3200 350 190 450 11 4550×1715×2730
160/5000 1600 5000 4000 350 190 450 11 5100×1570×2900
160/6000 1600 6000 4500 350 190 450 11 6100×1570×3010
200/3200 2000 3200 2600 350 240 460 11 3750×1815×2715
