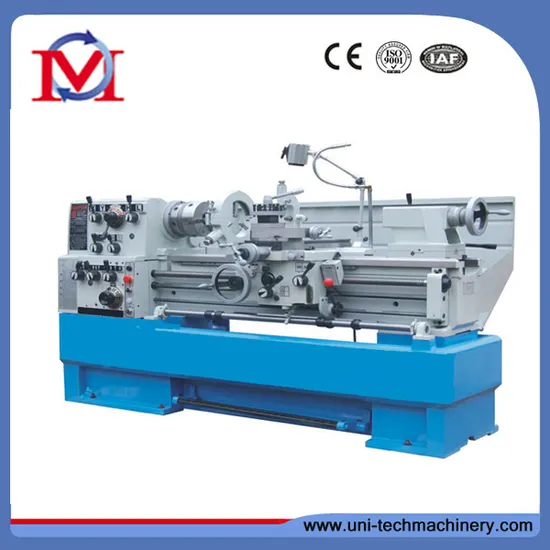

China Horizontal Gap Bed Lathe Machine C6246
| US$4,000.00-7,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
C6246
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Manual
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Max Swing Over Bed
460mm(18")
Max Swing Over Cross Slide
274mm(10 3/4")
Max Swing Over Gap
690mm(27 1/8")
Length of Gap
155mm(6 1/8")
Max Length of Workpiece
1500mm(60")
Width of Bed
300mm(11 13/16")
Spindle Nose
D1-6
Taper of Spindle Bore
M.T.#6
Range of Spindle Speed
12changes25-2000r/Min
Max Travel of Compound Rest
120mm(4 3/4")
Maxtravel of Cross Slide
290mm(11 3/8")
Leadscrew Pitch
Metric 6mm
Maxsection of Tool
25mm×25mm(1×1")
Range of Longitudinal Feeds
42kinds 0.031-1.7mm/Rev (0.0011"-0.0633"/Rev)
Range of Cross Feeds
42kinds 0.014-0.784mm/Rev (0.00033"-0.01837"/Rev)
Transport Package
Wood Case
Specification
ISO9001, CE
Trademark
UNI-TECH
Origin
China
HS Code
84581900
Production Capacity
100sets/Month
Product Description
China Horizontal Gap Bed Lathe Machine C6246Features:
1..Triple bearings supporting headstock spindle
2..Adjustable taper roller bearings providing spindle accuracy
3..Precision 'V'-beds & headstock gears are all hardened & ground
4..One piece cast iron base increases rigidity
5.Overload protection on drive motor and coolant system
6.Universal enclosed gearbox incorporating metric & imperial thread capabilities
7.Inching button incorporated on the control panel for convenient spindle speed selection
8.Foot operated spindle brake with safety cut out switch
9.300mm wide induction hardened heavy duty cast iron bed
10.Removable gap bed allowing work piece to swing up to 640mm
11.Chuck guard fitted with safety micro switch
12.Powered longitudinal and cross feeds
13.Adjustable 4 position length-stop mechanism for accurate repetitive operation
14.Dual calibrated dials incorporating metric & imperial graduations
15.Coolant system with flexible hose enabling operator to manipulate flow direction
16.Oil sight glass for head stock and gearbox
17.Low voltage halogen work light
18.Lubrication pump on saddle oiling slides
19.D1-6 camlock spindle for quick chuck removal
20.12 spindle speeds from 25-2000rpm
21.Large 58mm spindle bore
22.5.5kW / 7.5HP 415V main motor
| SPECIFICATION | MODELS | ||||||||||||
| C6241 | GD41 | C6246 | GD46 | ||||||||||
| CAPACITY | |||||||||||||
| Swing over red | 410mm(16") | 460mm(18") | |||||||||||
| Swing in gap | 640mm(25-1/8") | 690(27-1/8") | |||||||||||
| Length of gap | 155mm(6-7/8") | ||||||||||||
| Distance between centers | 1000mm(40") | 1500mm(60") | 1000mm(40") | 1500mm(60") | |||||||||
| Center height | 1085mm | 1110mm | |||||||||||
| Width of bed | 300mm(11-13/16") | ||||||||||||
| HEADSTOCK | |||||||||||||
| Spindle nose | D1-6 | D1-7 | D1-6 | D1-7 | |||||||||
| Spindle bore | 58mm(2-1/4") | 80 | 58 | 80 | |||||||||
| Range of spindle speed | 12-STEPS, 25-2000RPM | ||||||||||||
| FEEDS AND THREADS | |||||||||||||
| of compound rest | 120mm(4-3/4") | ||||||||||||
| of cross slide | 290mm(11-3/8") | ||||||||||||
| Max.Section of tool | 25×25mm(1×1") | ||||||||||||
| Longitudinal feeds range | 42 kinds 0.031-1.7mm/rev(0.0011"-0.0633"/rev) | ||||||||||||
| Cross feeds range | 42 kinds 0.014-0.784mm(0.00033"-0.01837") | ||||||||||||
| Metric threads range | 41 kinds 0.1-14mm | ||||||||||||
| Inch threads range | 60 kinds 2-112T.P.I. | ||||||||||||
Standard Accessories:
3-jaw &4-jaw Chuck
Change Gear Set
Reduction Sleeve
Dead Centers
Coolant system
Brake system
Tool box & tools 1 set
Follow Rest
Steady Rest
Optional Accessories:
--DRO
--Quick change tool post
--Chuck Guard
