Double Direction Cutter for Granite Block Use by Joborn Stone Machinery

Product Description

Product Description:

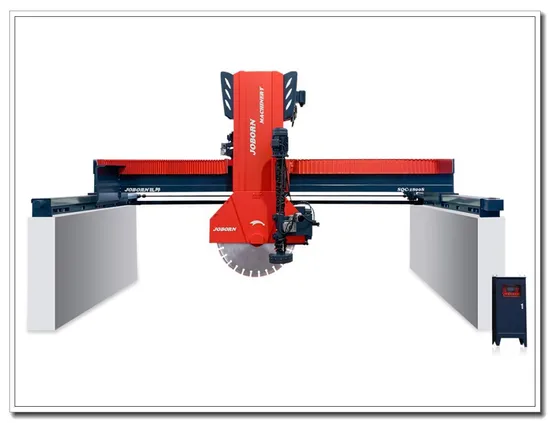

JOBORN Stone Cutting Machine SQC-1600S/1800S/2000S Block Cutting Machine with Double Directions Cutter for Marble Granite, Double Directions Stone Cutting Machinery
JOBORN SQC-1600S/1800S/2000S Double Directions Block Cutting Machine. This series machine adopts PLC programmable control system and man-machine interface, supplemented by ultra-high-precision rotary encoder for slicing, the left and right cutting tools are controlled by frequency converter, and the speed can be adjusted according to the stone material. The plate is driven by high-precision screw nut, and the key parts are imported high-quality spare parts; combined with the horizontal knife design, the root of the plate can be directly cut during cutting, eliminating the trouble of manual plate unloading and improving efficiency. The horizontal knife adopts hydraulic feeding, and the upper and lower lifting adopts the guide column contact surface, which is more reasonable and stable; therefore, it has the advantages of high cutting efficiency, high slicing accuracy, good flatness of the cut plate, high stability, and easy operation. It is especially suitable for For cutting high-value granite and marble blocks. (Note: If the production process requires, the user can add a 360° rotating table.)
Features: 1.Taiwan famous hydraulic system.The hydraulic components from Taiwan first-line brand,react more quickly,works more stable.
2.Domestic premium brand main motor with high efficiency and more energy saving,make the cutting more powerful,and saving electricity more.
3.Germany Siemens inverter, feeding more stable; imported or domestic famous brand electrical components, with lower failure rate, help you to worry less and save more labor.
4.It uses hydraulic lifting system, combination of chrome-plated guide pin and wear guide bush, with small gap, wearable, beautiful structure, and guide sleeve with multi-layer seals, with waterproof, dust-proof, anti-spill, improving the service life.
5.The machine with have a horizontal knife strcture,help you saving more labor.
6.Revolving working feed platform (Optional)
Domestic first-line brand efficient energy saving main motor
Taiwan famous brand hydraulic system
Rotary feed working platform(optional)
Rotary feed working platform(optional)
Imported and domestic premium brand electric components
Humanized human-computer interaction interface
Technical Parameter:

SQC-1600S/1800S/2000S Block Cutting Machine (Double Directions)
Appellation	Unit	SQC-1600S	SQC-1800S	SQC-2000S
Max.Diameter of saw blade	mm	Φ1600	Φ1800	Φ2000
Max.processing length	mm	4000	3800	3600
Max.processing width	mm	2200
Max.lifting stroke	mm	1350
Diameter of horizontal saw blade	mm	Φ400
Horizontal cutter lifting stroke	mm	750	850	950
Power of horizontal motor	kW	15
Power of main motor	kW	75/90
Total power	kW	100/115
Water consumption	m³/h	10
Dimension(LxWxH)	mm	8000x4400x3700(base to peak)
Weight	kg	13000	13500	14000

Processing Spot:

FAQ:
Q: Are you manufacturer ? A: Yes, we are professional and top stone machine manufacturer more than 30 years in China. Also we have many authorized agents all over the world to take care of machine's after sell service. Q: Can I get a machine according to my own requirements? A: Sure. Welcome OEM and ODM orders. Q: This is the first time I use this kind of machine, is it easy operate? A: There are guide video that show how to use machine and English instruction manual sent to you with machine. If there is still have any question, we will provide free professional online guide for you until you could use machine well. Q: What's your MOQ and delivery? A: Our MOQ is 1 set. We could send machine to your country port or to door directly, please tell us your port name or address. We'll offer the most competitive price and freight to you. Q: How is your after sales service? A: We offer machine lifelong's free online guide service. And many countries we have local dealer to do machine's installation and maintenance. Q: If my machine is broken. Can you repair it for me? A: Yes, many machines of us have remote troubleshooting function, we can solve by remote control and video guide. Re. common problems, we have professional guideline to show how to replace the parts, and for the countries which our agents cover, they will repair for you as well.
