1300*1800mm 4 Axis Heavy Duty Stone CNC Router Engraving Machine

Product Description

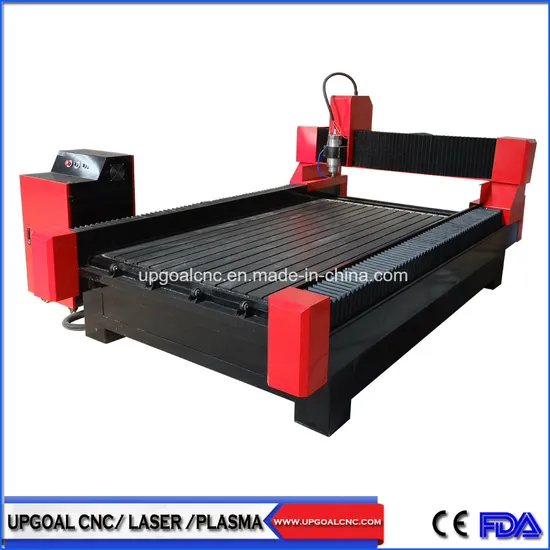

1300*1800mm 4 Axis Heavy Duty Stone CNC Router Engraving Machine

Features
1. Adopted heavy duty steel machine bed, strong rigidity, strong dynamics, ensuring the machine long time high speed moving and no deformation. Integrated stainless steel water slot with working table & machine body more convienient for water collection and circulation.

2. XYZ-axis adopted imported Hiwin, Taiwan linear square guide rail, high precision,fast speed and good wear resistance.
3. Heigh precision helical rack and pinion transmission for XY-axis,fast speed and powerful. Z-axis with double nut lead ball screw transmission, good weight capacity and stable moving.

4. Powerful 5.5kw water cooling spindle, easy to engraving all kinds of stone, not only fine engraving, but also the bottom smooth and clear.

5. Powerful stepper motor and driver for XYZA-axis, high precision, faster speed and more stable than stepper motor and driver. Dual motor and driver for Y-axis, ensuring the stable moving.
6. PCI NcStudio control system, showing the processing path and estimate processing time, more convenient and easy to operate.

7. Bothway tools cooling system, effectively improve tools life time.
8. Special dustproof, waterproof device, effectively keep the transmission part cleaning and rust protection, more easy maintenance.
9. 4th Axis rotary axis diameter 300mm, working length 1200mm for stone cylinder engraving.

10.Auto lubrication sysetem, more convenient and easy for whole machine lubrication.
11. Auto tool calibration, accurate and convenient for Z-axis 0 point setting.
12.Special several processing 0 point saving method.
13. Memory of break point and power failure, ensuring continue working after breaking point or next time processing.
14. Advanced file processing function, can timely correct faults, and good compatibility for Type3/Artcam/Mastercam/Caxa such file. Advanced three dimensional curve forcast algorithm, stable broken line, ensuring the curve moving speed & precision.
Technical Parameters

Effective working area	1300(X)mm*1800(Y)mm*450(Z)mm
Materials	More thickness T type steel pipe welded machine holder bed, cast iron gantry
Working table	Aluminum T slot
Cooling system	Stainless steel water slot cooling
Moving type	Gantry moving
Guide rail	Linear square guide rail ( Hiwin, Taiwan)
Transmission	Helical rack &pinion for X Y -axis, Lead ball screw for Z-axis
Driving mode	Stepper motor and driver for XYZA-axis
Spindle motor	5.5kw water cooling
Spindle speed	0-24000rpm
Inverter	Sunfar
Voltage	AC 380V ± 10%, 50/60Hz, three phases
Traveling speed	>28000mm/min
Engraving speed	>15000mm/min
Machine accuracy	0.03mm
Control system	PCI NcStudio control system
Suitable software	Artcam, Type3, Ucancam V9,etc
Carving Instructions	G code *Uoo *mmg *plt HPGL
Running environment temperature	0-45 ºC
Relative humidity	30%-75%
Lubrication system	Auto
Tool calibration	Auto
Certificate	CE

Application
Mainly used for natural marble, granite, artificial stone, tombstone, milestone, tile, glass, bluestone,sandstone, crystal, microlite,mural, village tablet inscription, decoration skirting line,...such relief engraving, singlet line, character, flat pattern engraving, with rotary axis, can for stone cylinder,breast board, handrail, dragon columns,figure of Buddha...engraving.
