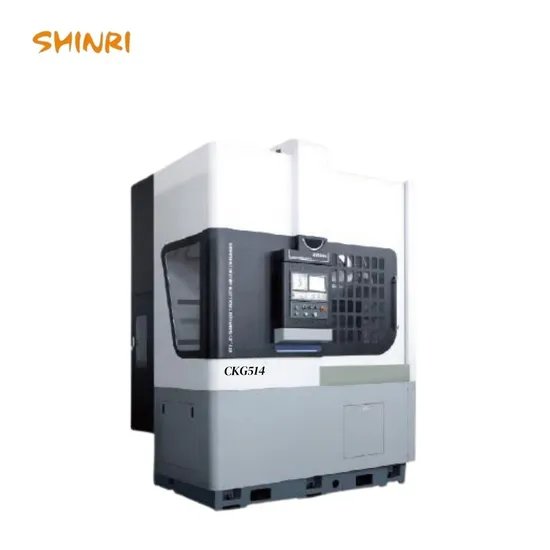

Ckg514 Vertical CNC Lathe with Horizontal 8-Station Turret 500mm Turning Length

Product Description

Product Description
Vertical CNC Lathe
1. The machine tool adopts a modular design as a whole, with an overall widened base, and the widened guide rails of the columns and beams adopt THK/Taiwan Hiwin RGH heavy-duty linear guides. The large span makes it thicker and more stable during operation.
2. The spindle unit adopts advanced design technology. In order to increase the cutting torque, the spindle diameter is thickened on the basis of the conventional structure, a set of bidirectional angular bearings is added, and oil bath air-cooled internal circulation is used for lubrication. method, thus effectively improving the lubrication capacity, reducing the friction coefficient, ensuring the stability of temperature rise, extending the life of the bearing, and being more suitable for high-speed, long-term, and high-load operation. It avoids the high cost of similar machine tool spindle grease lubrication without refilling, maintenance-free, short bearing life, and can only be replaced and repaired.
3. The ball screw adopts THK/PMI brand, and the Z and It reduces the quantitative changes caused by temperature rise to the screw and nut, improves the service life of the bearing, screw and nut, and ensures the positioning accuracy of the screw.
4. In order to adapt to the cutting needs of different customers for workpieces, we have designed two spindle drives. One is driven by a gearbox to increase the torque. The gear ratio is 1:5. The other is directly driven by a high-power servo motor. Ratio: 1:2.5.
5. The whole machine adopts a fully automatic hydraulic control system, automatic hydraulic power card, double cylinder design, and is equipped with a special combination clamp independently developed by our company. It lifts the workpiece and clamps it in the air, and controls the pressure required for roughing and finishing through automatic segmentation. This enables one-time clamping to complete rough and finish machining, ensuring the machining accuracy of all surfaces of the workpiece and greatly improving the output rate of the workpiece. This avoids the time consumed by secondary clamping and calibration and the deformation of the workpiece caused by traditional clamping.
6. The Z-axis adopts a balanced cylinder design, which is supplied through the hydraulic system to adjust the relative value of nitrogen, reducing the Z-axis servo motor load and screw nut load, and improving the service life of the servo motor and screw nut.
7. The 12-station hydraulic servo horizontal turret is used to meet the needs of various workpieces for tools and the tool change speed is faster. The addition of a long and thick tool bar avoids tool vibration and chatter marks caused by rigidity, and improves the processing time and quality of the workpiece.
8. The control system is equipped with FANUC 0ITF as standard, and Syntec, GSK, HNC, and Siemens can be optional.
9. The whole machine adopts fully enclosed protection inside and outside. The cooling system adopts high-lift double water pump circulation cooling, and is equipped with automatic chip flushing, which is discharged through a chain plate chip conveyor, which increases the operator's working time and reduces labor intensity.
10. Design a variety of special fixtures for one-time clamping and molding according to different workpiece characteristics.
Product Parameters

Specification	Unit	CKG514	CKG515	CKG516	CKG518	CKG5110
Max. swing diameter	mm	700	800	900	1000	1250
Max. turning diameter	mm	500	600	700	800	1150
Max. turning height	mm	500	700	800	900	900
Spindle nose	/	A2-8	A2-11	A2-11	A2-11	A2-15
Spindle speed	r/min	2500	2000	500/2000	5001	350
Spindle motor power	kW	18.5	22	20+Gearbox/22	20+Gearbox	37+Gearbox
Chuck size	Inch	15″	21″	24″	32″	32″/1000 4 claws
X axis motor torque	Nm	18	20	22	22	30
Z axis motor torque	Nm	18	20	22	22	30
X axis travel	mm	-30-330	-30-380	-50-420	-50-460	-50-460
Z axis travel	mm	550	750	850	920	920
X axis fast moving speed	m/min	16	16	15	15	12
Z axis fast moving speed	m/min	16	16	15	15	12
X/Z axis positioning accuracy	mm	0.005	0.005	0.007	0.007	0.01
X/Z axis repeated positioning accuracy	mm	0.003	0.003	0.005	0.005	0.007
Turret type	/	Horizontal 8 stations	Horizontal/Vertical	Horizontal/Vertical	Horizontal/Vertical	Vertical
Tool size	mm	25/Φ50	25/Φ50	32/Φ50	32/Φ50	32/Φ50
Machining accuracy and roughness	/	IT6-IT7/Ra1.6	IT6-IT7/Ra1.6	IT6-IT7/Ra1.6	IT6-IT7/Ra1.6	IT6-IT7/Ra1.6
Max. load of the workpiece	KG	300	500	1000	1000	1500
L×W×H	mm	2150×1500×2800	2550×3065×3250	2800×3400×3450	3060×3400×3450	3120×3510×3450
Machine weight	KG	6500	9000	10000	13000	15000
Total Power	KVA	30	35	45	50	55
