Pto Pellet Mill 400 Tops Model Tractor Driven

Product Description

PTO Pellet Mill

PTO Pellet Mill means power take- off. It is designed to be connected with a tractor or truck so that it can draw energy from their engine. Compared with other pellet mills, it is more flexible, easier to operate; its structure is more compact and its occupying space is lessened. Our PTO Pellet Mill is an ideal choice for farm-use end customers to make different kinds of biomass pellets and feed pellets. Materials can be used to make pellets including various kinds of agro-forestry wastes such as wood dust, saw dust, straws, stalks, rice husk, medical herbs, bamboo dust and oil cakes, etc.


PTO Pellet Mill Features
1. Our PTO Pellet Mill is connected with a tractor or truck for driving power, which will solve the problem of electricity transmission, even remote-controlled operation is available.
2. Adopt new design of direct connection of motor shaft and the main shaft, connected and disconnected easily and conveniently, overcome the loose defect of belt connecting after long time using.
3. High efficiency and output with low energy consumption: reasonable and professional design, the machine feeds and presses evenly, and discharges pellets with low damage rate.
4. The finished pellets are smooth and even, of high standard hardness and heat value.
5. Durable and cost effective: the core part of the mill-the rollers are made of prescise material of alloy metal which makes the roller anti-bearable and no easy to broken.
6.Various kinds of pore diameter flat die to choose.

Model	Assort Tractor Power	Die Diameter	Die Hole Specification	Saw Dust Capacity	Feed Capacity	Packing Size
TOPS120P	6-10HP	120mm	2.5-10mm	40-60 kg/h	60-100 kg/h	57*41*76(cm)
TOPS150P	6-12HP	150mm	2.5-10mm	50-90 kg/h	90-120 kg/h	57*44*76(cm)
TOPS200P	10-18HP	200mm	2.5-10mm	110-140 kg/h	200-300 kg/h	77*56*102(cm)
TOPS230P	18-28HP	230mm	2.5-10mm	150-190 kg/h	300-400 kg/h	77*56*102(cm)
TOPS260P	28-45HP	260mm	2.5-10mm	220-280 kg/h	400-600 kg/h	77*56*115(cm)
TOPS300P	45-55HP	300mm	2.5-10mm	300-350 kg/h	600-800 kg/h	77*80*116(cm)
TOPS360P	50-60HP	360mm	2.5-10mm	300-380 kg/h	700-900 kg/h	77*85*116(cm)
TOPS400P	50-70HP	400mm	2.5-10mm	400-550 kg/h	900-1100kg/h	77*85*116(cm)

Final pellets are made by our PTO Pellet Mill
For animal feed and for fuel .


Our factory is one professional manufacturer mainly producing kinds of pellet mill, hammer mill and other related machines CE, ISO certification. It has developed into a group enterprise whose business integrates scientific research, manufacturing, training and international trade with more than 100 employees, including 6 senior engineers, 19 mechanical designers, technicians 20.

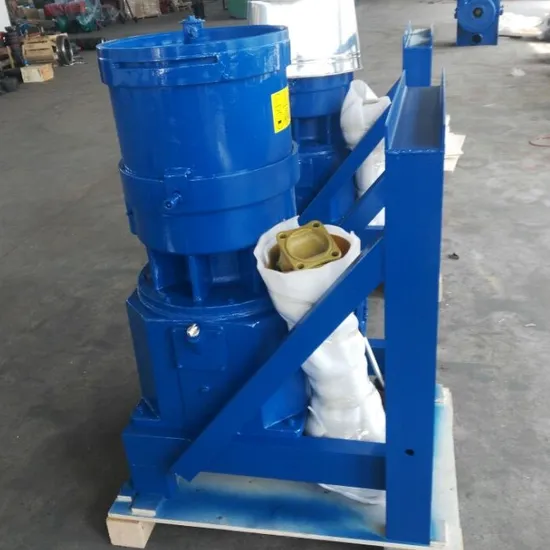

PTO pellet mill photos
