Automatic Multi-Blades Mosaic Tile Cutter Stone Cutting Machine for Slotting Marble Processing Machinery

Product Description

Product Description

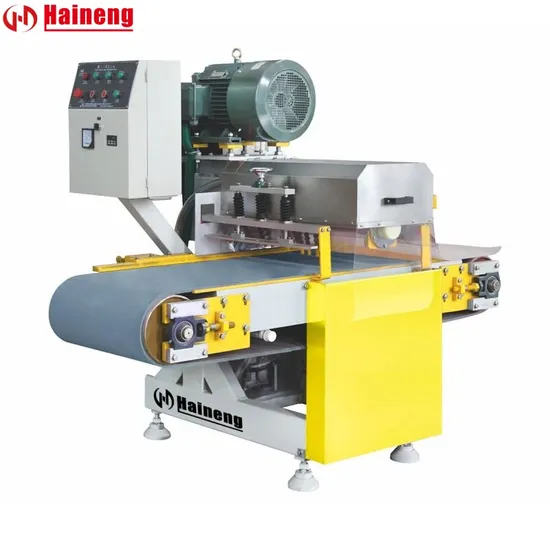

DDQ600S/800S-1 Tile Cutting Machine is a multi-blade cutter used for cutting or slotting tile and stone for 10-12 pieces at most at one time. It can cut tile into strip or square, diamond mosaic with special pressing plate. Different width can be processed simultaneously with chipping free cutting edges, and also chamfering function.It is high cutting precision, high efficiency and has a excellent effect.

DDQ600S/800S-1 Multiple Tile Cutting Machine

DDQ600D/800D-2 Double Group Blades Cutter

Product Parameters

Model	Unit	DDQ600S-1	DDQ800S-1	DDQ600D-2	DDQ800D-2
Quality of shaft	pc	1		2
Dia. of blade	mm	180-250		180-250
Processing thickness	mm	6-20		6-20
Process width	mm	300-600	300-800	300-600	300-800
Speed of conveyor belt	m/min	1-5		1-5
Gross power	kw	16.5		25
Dimensions (L×W×H)	mm	2200×1500×1800	2200×1600×1800	2500×1700×1800	2200×1800×1800
Gross weight	kg	≈1000	≈1050	≈1300	≈1500

Processing
Cutting ceramic tile, roof tile, brick,s tone, Artificial stone, quartz stone.....
Cutting mosaic with pressing template
Packaging & Shipping
Partial Control Element
Company Profile

CertificationsExhibitionMarketing SystemCompany information
After Sales Service
1.Parts & Accessories Quick supply for needs
2.Troubleshooting by phone, e-mail, or WhatsApp/Wechat
3.Provide paper or electronic version of the product manual
FAQ
Q:what is the MOQ?A:1 set.Q:How's your machine's quality?A:We are a professional stone machine manufacturer more than 20 years, we've sold lots of machine at home and abroad. We will continuously provide new and old customers more and better services to help your business booming.
90% of our factory's machine are exported, including for the United States, Brazil, Russia,Algeria,Iran, Egypt, Morocco, Georgia, and other more than 10 major purchasers and for more than 20 Chinese trading companies OEM, and we also directly export too, the machines are exported to over 85 countries and regions.Q:What's the warranty time?A:The whole machine is guaranteed for one year, including electrical components and mechanical partsQ:Whether the machine can be customized according to our requirements?A:Customization available,Experienced techs for all your questions.
The factory owner is a mechanical engineer with more than 25 years of design and manufacturing experience. A variety of products have been customized for different customers in more than 20 countries.
