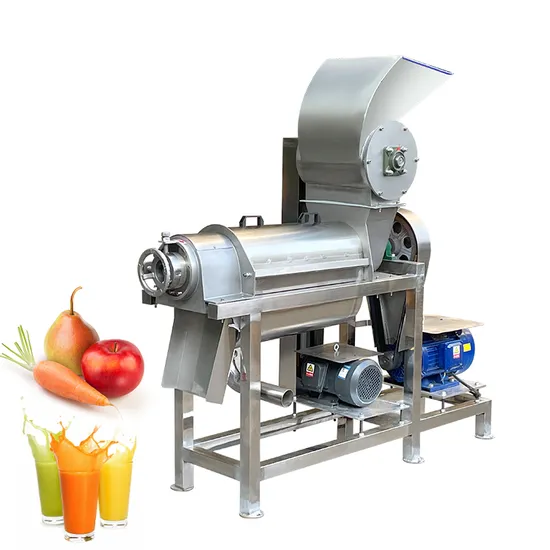

Cold Press Commercial Juice Extracting Machine/Fruit Juicer Machine/Screw Juicer for Fruit and Vegetable

Product Description

Product Description
Product Usage: Suitable for pressing fruits and vegetables such as lemons, pineapples, apples, pears, mulberry chess, grapes, oranges, oranges, tomatoes, ginger, celery, radishes, etc. Product Structure: Composed of front support, feed hopper, spiral, filter screen, juice container, rear support, slag chute, etc. The left end of the spiral spindle is supported in the rolling bearing seat, and the right end is supported in the handwheel bearing seat, The working principle of the electric motor is to drive the screw through a pair of triangular belt pulleys. The main component of this equipment is the screw. The screw gradually increases in diameter along the direction of the slag outlet, while the pitch gradually decreases. When the material is pushed forward by the screw, the volume of the spiral cavity decreases, forming a pressure on the material.
The rotation direction of the spiral spindle is clockwise when viewed from the feeding hopper towards the slag groove. The raw materials are added to the feeding hopper and pressed under the push of the screw. The squeezed juice flows into the bottom juice container through the filter screen, while the waste is discharged through the gap formed between the screw and the conical part of the pressure regulating head. The movement of the pressure regulating head along the axial direction can adjust the size of the gap. When transferring the handwheel bearing seat clockwise by hand (looking from the slag discharge groove of the equipment to the feeding hopper), the pressure regulating head should be turned to the left, and the gap will be reduced. Otherwise, the gap will become larger. Changing the size of the gap, that is, adjusting the resistance of the residue, can change the juice yield. However, if the gap is too small, under strong compression, some of the residue particles will be squeezed out together with the juice through the filter screen. Although the juice yield increases, the quality of the juice will relatively decrease. The size of the gap should depend on the specific process requirements of the user.
Detailed Photos
Product Parameters

Product parameter
Model	XJT-LX1500S
Voltage	380V-50hz
Power	7.5kw
Yield	1-2T
Product size	1600*570*1600mm
Product weight	≈180kg

Company Profile
Guangzhou Xinjiate Machinery Equipment Co., Ltd. has been focusing on grinding and grinding and pulverizing processing equipment, meat processing equipment, fruit and vegetable cutting equipment, pasta and pastry processing equipment and related assembly lines for the past 10 years. Maybe we are not the biggest in the industry, but we must do our best. The Xingar people solemnly promise that your needs and ideas are the direction and motivation for us to move forward! We look forward to your inquiry and become your partner in the food processing industry as soon as possible!
After Sales Service
1. Professional advice and extensive experience help to choose the machine.
2. Lifelong maintenance and thoughtful technical support
3. Test run and install video/CD, Maunal book, toolbox and machine to send.
4. Our engineers can install the machine abroad
5. One year quality assurance Material and process defects for equipment and parts are guaranteed for one year. Any parts that need to be replaced will be shipped free of charge, but will not include the installer. The warranty does not cover abuse or user error.
6. 24-hour online service Any questions will be answered within 24 hours
7. Our company can pay through T / T, L / C, Cash.
