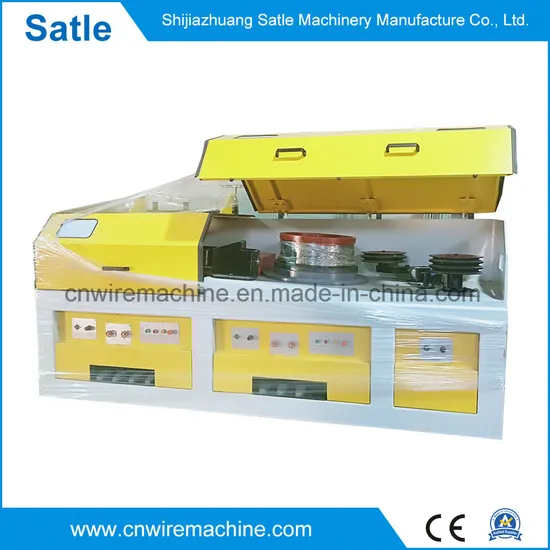

Full Automatic High Speed Carbon Steel Straight Line Wire Drawing Machine

Full Automatic High Speed Carbon Steel Straight Line Wire Drawing Machine

US$4,500.00-6,800.00 1 Set (MOQ)

Basic Info.

Model NO.
LZ560
Metal Material
Steel
Outlet Diameter
0.4-3.5mm
Max.Inlet Wire Dia.
8mm
Block Dia.
560mm
Max. Number of Block
12
Certification
ISO, Ce
Condition
New
Color
as Request
Transport Package
Waterproof Plastic Film
Specification
20m*3.2m*1.2m
Trademark
SATLE
Origin
China
HS Code
8463102000
Production Capacity
100 Sets/Year

Product Description

Full Automatic High Speed Low Noise Straight Line Wire Drawing Machine
It is a prefabrication equipment for the production of metal products such as standard parts. The purpose is to pull the wire or bar of the metal product manufacturing enterprise, which is produced and transported by the steel manufacturer to standard parts, through the wire drawing machine, so that the diameter of the wire or bar, The roundness, internal metallographic structure, surface finish and straightness all meet the raw material processing requirements for the production of metal parts such as standard parts.
About us
Shijiazhuang Satle Machinery Manufacture Co., Ltd. Established in the year of 2001, is located in Shijiazhuang City, HeBei Province, China. The company, possessing a professional technical and production team, is mainly specialized in developing and manufacturing the whole set of welding wire production line and whole set metal wire drawing machine, including straight line wire drawing machine, water tank wire drawing machine, pulley wire drawing machine, spooler take up machine, payoff machine, layer winding machine and so on. Most the machines are automatic, high speed and effective. All the products have gained the customers' recognition and approval in the world. The company was rapidly developing and it was always furnishing all the customers with technical supports and after-sales services in the past 15 years
Customers visit and signing...
Process:
Wire Drawing Production Line:
Pay-off stand----wire descaling machine (pre-treatment)----wire pointing machine----butt welding machine-----wire drawing machine----annealing machine ----spooler take-up
Product details:
Specification:
Modle LZ350 LZ400 LZ560 LZ700
Inlet Wire Diameter(mm) 3.5 4.2 6.5 8
Outlet Wire Diameter(mm) 0.6 0.8 1.4 1.6
Moter Power(kw) 5.5-11 7.5-15 8.5-22 22-37
No. Of drafts 8-12 8-12 8-12 6-10

Welcome to contact us for more different modle specification.
Packing and loading:
Waterproof plastic film
Our Service:
Pre-Sales Service:
Inquiry and consulting support
Design appropriate products according client's requirments
View our Factory.
After-Sales Service:
One year warranty for whole machines.
Two years for the capstan.
Low charge for continue maintenance when warranty is expired.
Free training to how to install the machine, how to use the machine.
Engineers available to service machinery overseas.
FAQ
Q: Are you trading company or manufacturer?
A: We are manufacture&trading company.
Q: Can your machine be customized?
A: Yes, give me your parameters.
Q: What is your delivery date?
A: 10-40days.
Q: What is your terms of payment?
A:
TT, 30% deposit, 70% before shipment.
100%TT in advance
L/C at sight
Q: What is your available Shipment?
A: FOB Tianjin Port or Qingdao Port.
Why let you choose us?
We have more than 15 years of experience in wire and wire machine production.
Our machines have goog reputation overseas, have been exported to the United States, South Korea, Russia, Maysia, Egypt, Pakistan, and many other countries.
Professional technical team, we can design and produce appropriate wire drawing machines according to customers' existing equipment and requirements. We will reduce your cost and increase your production efficiency.
