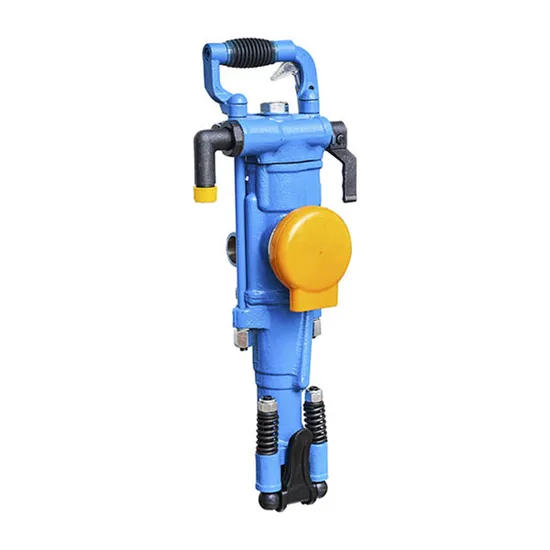

Portable Yt28 Air Jack Leg Pusher Leg Rock Drill Pneumatic Hammer Drills

Portable Yt28 Air Jack Leg Pusher Leg Rock Drill Pneumatic Hammer Drills

Negotiable 5 Pieces (MOQ)

Basic Info.

Model NO.
YT28
Brand
Shenli
Power Rating
850W
Impact Rate
37Hz
Impact Energy
80j
Power Supply Type
Pneumatic
Diameter of Bore
42mm
Unloaded Speed
450r/m
Air Consumption
81L/S
Model
Yt28
Piston Diameter
80mm
Drilled Holes Depth
1.2-5m
Bit Head Size
R22*108mm
Transport Package
Carton/Wooden Box
Specification
70*28*20CM
Origin
Hebei
HS Code
8430390000
Production Capacity
10000 Sets/Month

Product Description

The YT28 air-leg rock drill is a kind of high-efficiency, energy-saving and environmentally friendly rock drilling equipment. Compared with similar pneumatic products, the YT28 air-leg rock drill has the advantages of low failure rate, fast rock drilling speed, long service life of wearing parts, low noise, light weight and simple operation

Product Description
1,The height of the machine is moderate and the range of the stroke is large, so it can drill the anchor holes which are perpendicular to the roof surface, which solves the problem that the anchor holes in the roadway are not perpendicular to the surface of the roof for a long time, which guarantees the quality and progress of the project, saves the construction cost and improves the efficiency.2,Good comprehensive rock drilling performance, not only for medium hard rock drilling, but also for rock drilling with f≤6, which can be applied to both rock roadway and quasi roadway.3,Simple structure and more durable, easy to maintain, lower maintenance cost4,Flexible start, air and water linkage, air leg fast return, air pressure adjustment and other institutions.5,The control handle is concentrated with the shank body, the mechanism is novel and convenient to operate with the muffler cover can effectively reduce the noise and change the direction of the row of visits at will to improve the site The operation conditions of the field6,YT28 rock drill is suitable for wet rock drilling of medium hard or hard rock.
Application areas:
Mining, traffic, tunnels, water conservancy construction, quarries and other work
Product Parameters
Product Model: YT28
Net weight: 26KG
Total length: 66.1CM
Air consumption: ≤81L/S
Impact frequency: ≥37Hz
Drilling diameter: 34-42mm
Piston diameter: 80mm
Piston stroke: 60mm
Working air pressure: 0.63mpa
Working water pressure: 0.3mpa
Drilling depth: 5M
YT28 pneumatic air leg rock drills before use
1,Check the integrity and rotation of all parts (including rock drill, bracket, or rock drill cart) before drilling, fill necessary lubricant, and check whether the wind and waterways are smooth and whether the connection joints are firm.
2,Knock on the roof near the working face, i.e. check whether there are live rocks and loose rocks on the roof and second gang near the working face, and make necessary treatment.
3, the working surface of the flat shell hole location, is to be pounded flat in advance before allowing rock drilling, to prevent slippage or shell hole displacement.
4. It is strictly forbidden to drill dry eyes, and we should insist on wet rock drilling, turn on the water first and then the wind when operating, and turn off the wind and then the water when stopping drilling. When opening the hole, run at low speed first, and then drill at full speed after drilling to a certain depth.
5,No gloves are allowed to be worn by the drillers when drilling.
6,When using the air leg to drill the hole, pay attention to the standing posture and position, never rely on the body to pressurize, let alone stand in front of the rock drill under the work brazing rod, to prevent injury from broken brazing.
7,If abnormal sound and abnormal water discharge are found in rock drilling, stop the machine for inspection and find out the reason and eliminate it before continuing to drill.
8,When withdrawing from the rock drill or replacing the brazing rod, the rock drill can run slowly and pay attention to the position of the rock drill braze.
Detailed Photos
Company Profile

FAQ
1.How do your prices compare to the manufacturer/factory?
We are the main distributor of major construction machinery manufacturers/factories in China and keep getting the best dealer prices. From the comparison and feedback from many customers, our price is even more competitive than the factory/factory price.
2.How is the delivery time?
In general, we can deliver ordinary machines immediately to our customers within 7 days, as we have various resources to inspect stock machines, locally and nationwide, and receive machines in a timely manner. But it takes more than 30 days for a manufacturer/factory to produce an order machine.
3.How often can you respond to customer inquiries?
Our team is made up of a group of hardworking and dynamic people who work around the clock to respond to customer inquiries and questions. Most issues can be successfully resolved within 8 hours, while manufacturers/factories take longer to respond.
4.Which payment methods can you accept?
Usually we can use wire transfer or letter of credit, and sometimes DP. (1) Wire transfer, 30% deposit in advance, 70% balance paid before shipment, long-term cooperation customers can present a copy of the original bill of lading. (2) Letter of credit, 100% irrevocable letter of credit without "soft terms" from internationally recognized banks can be accepted. Please seek advice from the sales manager you work with.
5.Which clauses in the Incoterms 2010 can you use?
We are a professional and mature international player and can handle all INCOTERMS 2010, we usually work on regular terms like FOB, CFR, CIF, CIP, DAP.
6.How long are your prices valid?
We are a gentle and friendly supplier, never greedy for profit. Our prices remain largely stable throughout the year. We will only adjust the price according to the following two situations: (1) USD exchange rate: According to the international currency exchange rate, the RMB exchange rate is quite different; (2) The manufacturer/factory adjusted the machine price due to the increase of labor cost or raw material cost.
7.What logistics methods can you use for shipping?
We can transport construction machinery with various means of transport. (1) 80% of our shipping will be by the sea, to all major continents such as Africa, South America, Middle East. (2) China's inland neighboring countries, such as Russia, Mongolia, Kazakhstan, Kyrgyzstan, Tajikistan, Uzbekistan, Turkmenistan, etc., can transport by road or rail. (3) For urgently needed light spare parts, we can provide international express services, such as DHL, TNT, UPS, FedEx, etc.
