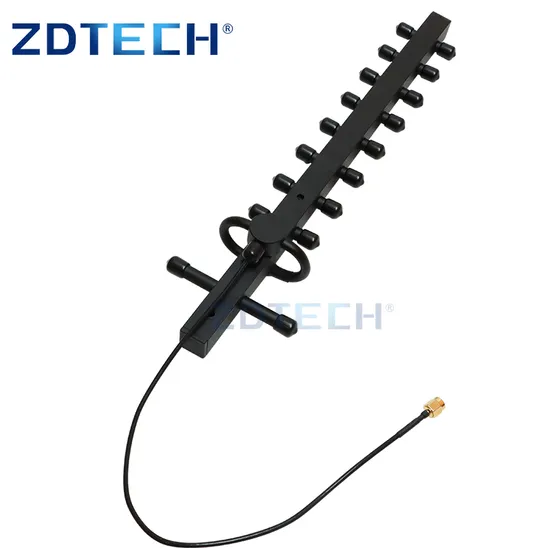

1570-1620MHz with 10 dBi High Gain Outdoor Directional Yagi Antenna for Drone
Basic Info.
Model NO.
ZD-DYA-1.5G
Material
Al
Nature of Operation
Receiving and Transmitting The Message
Operating Wavelength
Microwave
Sturcture Form
Surface Antenna
Usage Occasion
Base Antenna
VSWR
<1.5
Usage
Communication Antenna
Base Antenna
High Gain Antenna
Dimensionality
Two-Dimensional Antenna
Impedance
50
Connector Type
SMA Male
Transport Package
Each in Carton
Trademark
ZD
Origin
China
HS Code
8529101000
Production Capacity
50000/Month
Product Description
Product Features:
Gain: 10 dBi
Connector: male
VSWR: ≤2.0
Frequency: 1570-1620MHz
Electric Specifications:
| Electrical Specifications | |
| Model NO. | ZD-DYA-1.5G |
| Frequency Range(MHz) | 1570-1620 |
| Gain(dBi) | 10±1 |
| Polarization | Vertical |
| VSWR | ≤1.5 |
| Front to Back ratio(dB) | ≥15 |
| Maximum Input Power(W) | 50 |
| Impedance(Ω) | 50 |
| Lightning Protection | DC ground |
| Mechanical Specifications | |
| Connector Type | SMA Male |
| Dimensions(mm) | |
| Cable | RG58/U,300mm length |
| Effectivewind area() | ≤0.2 |
| Rated wind velocity(m/s) | 60 |
| Reflector material | Aluminum |
| Radome material | ABS |
| Operation Temp.-ºC | -40~+90 |
| Mounting hardware(mm) | φ35~φ50 |
