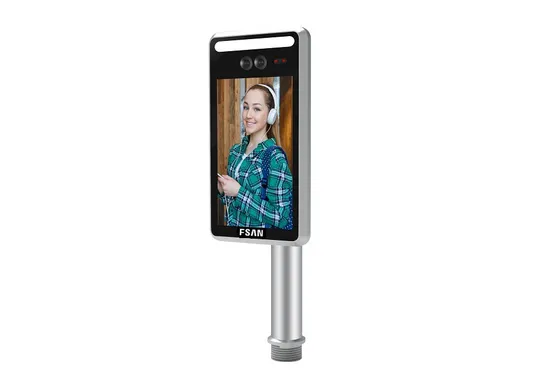

FSAN 7 Inch Living Face Detector Face Recognition Terminal Camera

Product Description

FSAN 7 Inch Living Face Detector Face Recognition Terminal Camera
Product Description--Industrial-grade design, pitch angle, left and right rotation adjustable
--Linux embedded system, more secure, stable, fast
--Integration of face capture, comparison function
--Support living face detection, effective prevention of photos and video spoofing
--Using deep learning algorithm, face database can reach 10,000pcs
--Flexible face template import, support single, batch image file import and real-time capture import
--Support face types of ordinary people, whitelist people, blacklist people, etc.
--Support recognize result linkage I/O, wigan port output, voice broadcast
--Can be widely used in access control channel and other scenes
Product Parameters

	FEW6830F06
Screen
Size	6.95 inch,full-angle IPS LCD screen
Resolution	1024x600
CAMERA
Type	Design of double camera
Sensor	1/2.9" 2MP Low Lux CMOS
Resolution	1080P@30fps
Lens	6mm*2
Face exposure	Support automatic face intelligent exposure
Mirror	/
Image settings	/
ACCESSORIES
Complementary light	IR light, LED white light
IC Card module	/
Identity module	/
Loudspeaker	Loudspeaker
Network module	Network module
Audio and video encoding
Video compression	H.265/H.264
Encoding features	main stream::1920x1080@30fps,sub-stream:D1@30fps
Max. Resolution	1920x1080
Video bit rate	Constant bit rate, variable bit rate (16kbps~8000kbps)
Video type	Complex stream/ Video stream
FUNCTION
Network protocol	IPv4,TCP/IP,NTP,FTP,HTTP
Access protocol	ONVIF, RTSP
Safe mode	Authorized user name and password
Event linkage	FTP upload, alarm output linkage, wiegand output linkage, voice broadcast
Remote upgrade	Support
Others	/
FACE RECOGNITION
Detection type	Support lving face detection, effective prevention of print photos, phone photos and video spoofing
Face detection number	0.5-1.5m, support detection target size filter adjustment
Recognition face size	Pupils distance ≥ 60 pixels; Face pixel ≥150 pixels
Face database capacity	Support built-in ≤ 10000 faces; support black/white list
Posture	Support side face filter, comparable within 20 degrees in vertical and 30 degrees in horizontal
Shelter	Recognizable with ordinaryglasses and short bangs hair
Expression	Recognizable with slight expression
Response speed	≤1s
Face / card recognition	/
Local storage	Support storage of more than 100,000 capture and recognition records
Recognition area	Full image recognition, support zone optional setting
Upload mode	FTP , HTTP upload, SDK function calling upload
INTERFACE
Network interface	RJ45 10M/100M network adaptative
Alarm input	/
Alarm output	1CH
RS485	Support
TF card	/
USB	/
Wiegand interface	Support wiegand 26,34 protocol
Reset	/
SIM card	/
GENERAL
Operating temperature	-20°C ~ 60°C
Operating humidity	0%-90%
Protection grade	IP66
Power supply	DC12V
Power consumption (max)	≤12W

DIMENSION
INTERFACE
1-Alarm output1+RS485
2-DC12V Power input
3-network interface
4-Wiegand outputAPPLICATION
Exhibition Show
Certifications
Shipping
FAQ
Q: 1. Support sample order?
Yes, we support sample order for customer to test before bulk order place.
Q: 2. What is the lead time?
For sample order need 3-5days, for bulk order time can be negotiate.
Q: 3. Do you have any MOQ limit?
Sample order is no limit, but for bulk order once you need customized logo print or customized package then it will have MOQ limit.
Q: 4. How do you ship the goods and how long does it take arrive?
For sample order, usually we shipped by DHL, FedEx, UPS or TNT.
For bulk order, usually we shipped by customer appointed forwarder by air, by sea or by train.
Q: 5. What is the warranty for the products?
Our warranty is for 2 years.
Q: 6. How is your after-selling service?
We support online technical support.
Any problem with our product can contact us to solve problems at any time.
Q: 7. Do you supply OEM service?
Yes, we are professional OEM/ODM manufacturer.
We support customized logo print on products, customized package, customized GUI_language.
