Basic Info.
Certification
ISO9001, ISO, CE
Automatic Grade
Automatic
After-Sales Service Provided
No Overseas Service Provided
Video Outgoing-Inspection
Provided
Machinery Test Report
Provided
Key Selling Points
Easy to Operate
Function
Treating The Sheet Surface to Add The Adhesive for
Treating Speed
Customized
Max Material Thickness
0.1-3mm
Conveyor Belt Speed
2-20m Adjustable
Conveyor Belt Width
750mm
Discharge Gap
1-5mm Adjustable
Transport Package
Wooden Case
Product Description

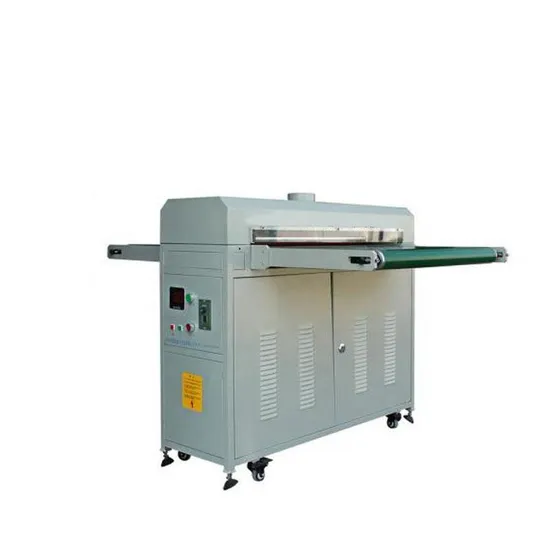

High-Speed Composite Corona Treatment Surface Treater Treatment Machine Plastic Sheet Corona Treating Equipment |
Product DescriptionApplication of plasma treating machine:
Plasma treating machine is suitable for treating different kinds of sheet materials:PP,PET,PVC,PP,BOPP,ABS ,plastic plate,Insulation sheet,thermostability sheet,Silicone Rubber and so on. corona treatment system Plastic Film Surface Corona Treater is used widely in painting, gumming,recombination to avoid falling off and poor viscosity.
Features of plasma treating machine:
1,Plasma treating machine is special for sheet material. 2,the sheet is corona by the machine, the surface adhesive force will be improved. 3,the speed of convey belt and corona power intensity can be adjusted to satisfy different request. 4, the treating width can be customized according to sheet width
Product Parameters
Model | ATP-600 | ATP-900 |
Power | 3kw | 4.5kw |
Conveyor belt speed | 2-20m adjustable | 2-20m adjustable |
Conveyor belt width | 750mm | 900mm |
Thickness of corona material | 0.1-3mm | 0.1-3mm |
Thickness of corona material | 1-5mm adjustable | 1-5mm adjustable |
Weight | 150kg | 200kg |
Size | 1150*1100*1000mm | 1800*1200*1200mm |
Detailed PhotosAdvantages for corona treatment machine:1,Converter Motor: treating speed can be adjusted, when treating, once got stuck, machine will stop automatically, no damage to motor and electrode
2,Fully enclosed structure,made of 2mm thickness steel, reliable performance,3,driving by belt, less noise, easy maintainence4,consists of 3 parts:feeding part, treating part and discharge partThis type corona treatment machine, also named sheet corona treatment machine, PVC surface corona treating machine, it is applied to plastic sheet, packing box,gold and silver cardboard,paper card surface treatment. After cornona treatment, the material is easier to printing,bonding.The sheet surface corona treatment machine can make single side corona treatment,also can made double side corona treatment.
