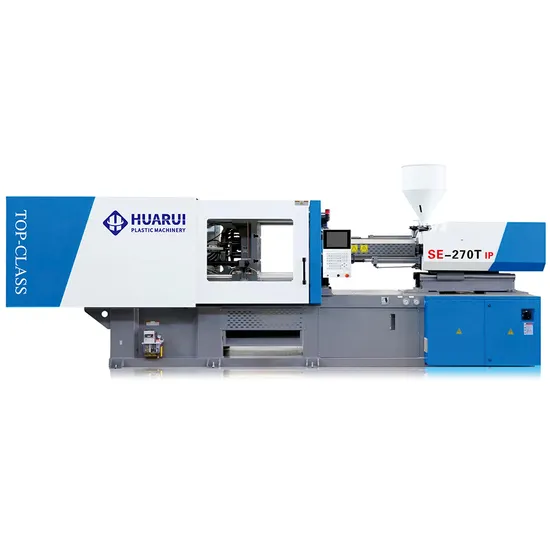

Se-270t IP Fast Speed Plastic Water Bottle Lid Cover Closure Cap Making Injection Moulding Machine

Se-270t IP Fast Speed Plastic Water Bottle Lid Cover Closure Cap Making Injection Moulding Machine

US$29,500.00-35,000.00 1 Set (MOQ)

Basic Info.

Model NO.
SE-270T IP
Type
Injection Blow Molding
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Product Name
Plastic Injection Molding Machine
Product
Horizontal Injection Molding Machine
Injection Rate
448cm³/Sec
Weight
9500kg
Motor Power
30kw
Advantage
Durable
MOQ
1 PCS
Transport Package
Wooden Case
Specification
6.5*1.5*2.3m
Trademark
ENJI
Origin
Zhejiang, China
HS Code
847710109
Production Capacity
150 Pieces One Year

Product Description

SE-270T IP Fast Speed Plastic Water Bottle Lid Cover Closure Cap Making Injection Moulding Machine
Product Parameters
Se-270T/IP Plastic Injection Molding Machine Information
Item Unit A
B
C
Screw diameter mm 70
Theoretical shot volume cm³ 1155
Shot weight (PET) g 1340
Shot weight (PET) oz 47.3
Length/Diameter ratio L/D 25
Injection pressure Bar 1305
Injection rate cm³/sec 448
Max.screw speed rpm 167
Clamping force KN 2700
Max.daylight mm 885*835
Open stroke mm 560
Space Between Tie-bars mm 620*570
Min mould dimension mm 270
Mould thickness range mm 620
Ejector force KN 100
Ejector stroke mm 150
No.of ejector pins unit 13
Max.motor power KW 38
System pressure MPa 175
Heater input power KW 31
Oil filling capacity L 300
Machine size M 6.5*1.5*2.3
Net weight KG 9500

SE/IV series machine advantages
Distributed architecture (n-tier);
TCP / lP efficient network connection,Internet remote control;
Synchronous cluster status browsing and parameter central control;Real-time heating curve to monitor barrel temperature changes.
Temperature and molding parameter statistics to assist in quality management.Expansion of the die storage space for mutual replication.
Scalability. providing interface with ERP.
Operator password rights management, recording of modification logs.Ease of operation and support for multiple languages.
