High Output Door Skin Laminating Hot Press Machinery

Product Description

Product Description
The door skin laminating hot press is a specialized equipment used to adhere decorative materials
(such as wood veneer, PVC film, and melamine paper) to the surface of door panels.
It applies heat and pressure to securely bond the decorative material to the substrate
(such as MDF, plywood, or solid wood) of the door panel,
giving the surface of the door panel a beautiful decorative effect and higher durability.
USAGE 1. Decorative panel production
2. Furniture manufacturing
3. Processing of interior decoration materials
4. Enhancing the protective and durability of the panel
5. Processing of composite materials
Working Principle
The heating system of the hot press is activated to provide even high temperature, ensuring that the heating plate reaches the pre-set temperature. The temperature setting is adjusted according to the characteristics of the veneer material to ensure a good bonding effect.
The hydraulic system is activated to place the door panel and decorative materials between the heated pressing plate, applying a strong pressure to make the decorative material firmly adhere to the substrate. The size and duration of the pressure are set according to the material andprocess requirements to ensure a firm bond without air bubbles or wrinkles.
Under the combined action of high temperature and high pressure, the adhesive or the backing adhesive of the decorative material is activated to produce a strong bonding force, making the decorative material firmly bonded to the panel.
After the heating and pressing are completed, the equipment will undergo a cooling process to gradually cool and stabilize the bonding area, ensuring that the decorative material is firmly attached to the substrate and is not easy to fall off or deform.
Product Parameters

1	Model	BMBRY-21-4*8-160T-3L
2	Hot press plates	2500 * 1300 * 42 mm, 4 sheets
3	Hydraulic pistons	diameter φ 140 mm, stroke 390 mm, 4 pieces
4	Nominal pressure	160 Tons
5	Opening size	130 mm
7	Electrical control style	Semi-automatical
8	Hydraulic system limit pressure	25 Mpa
9	Main pump	100:100 double vane pump, 7.5 KW motor
10	Pressurized pump	10 ml / rev, 5.5 KW motor
11	No-load closing time	13 Seconds
12	Heating medium	heat transfer oil or steam
13	Main frame steel thickness	20 mm, 12 mm
14	Frame style	welding frame
15	Cross beams size	450 mm, 450 mm, 300 mm
16	Machine size	2960 * 1300 * 1800 mm
17	Total weight	8000 KG

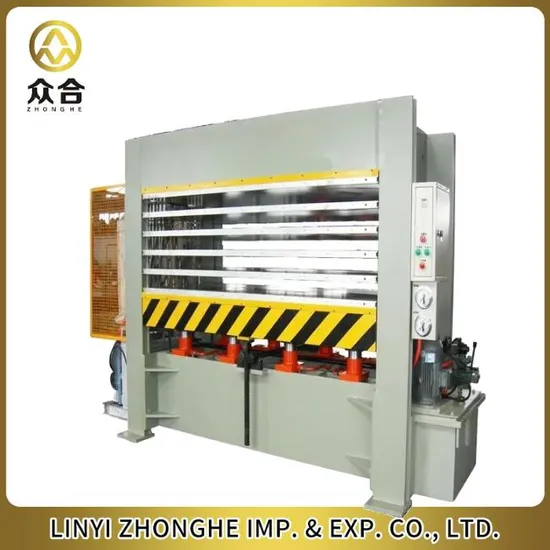

Machine Photos for Reference

Machine Features
1. Uniform heating:
It uses advanced heating systems to ensure even heating of the door panel surface, avoiding bubbles, warping, or poor adhesion.
2. Stable pressure:
The hydraulic system provides stable and powerful pressure, allowing decorative materials to be firmly adhered to the door panel surface, ensuring consistent product quality without any adhesion issues.
3. Adjustable temperature and pressure:
Depending on the type of decorative material and the required process, the machine can flexibly adjust temperature and
pressure to achieve the best adhesion effect and adapt to various laminating processes.
4. High-efficiency production:
The equipment has a multi-layer laminating function, allowing multiple door panels to be laminated at once,
improving production efficiency and saving time, suitable for mass production requirements.
5. Versatile application:
It can be used for various decorative materials, including wood veneer, PVC film, and melamine paper,
to meet the production needs of different styles and functions of door panels.
6. Automated control
7. Energy-saving and environmentally friendly
8. Durable and low-maintenance

Company Profile
Linyi Zhonghe Machinery Company is professional in solutions of wood veneer production machine,
plywood production machine, particle board machine, MDF board machine, saw mill machine, wood veneer, plywood, other related material and parts for wood processing industry, construction material and machine, etc.The detail business range is as following:1-wood veneer production machine:Log cutting machine, log debarker, core veneer peeling machine, face veneer peeling machine, wood veneer dryer, wood veneer clipper, wood veneer stacker, veneer tape, etc.2-plywood production machine, film faced plywood machine:Core veneer composer, putty spreader, veneer sanding machine, veneer jointer, glue powder, glue making machine, glue mixer, glue spreader, base plywood forming machine, cold press, hot press, bolier, Double Dimension saw, sanding machine, wood dust collector, stainless steel plates, cushion pads, etc.3-Particle board machine and MDF board machine.4-Saw mill machine: Vertical band saw, horizontal band saw, saw blade sharpener.
Certifications

Our Advantages

1. Rich experience and professional design
We have lots of experience in exporting plywood machine production.
The layout of the factory is designed reasonably to meet safety production and high efficiency.
2. Competitive price
ZHONGHE has own factory, with the same configuration, the price is competitive.
And we are familiar with the Chinese market, our suppliers provide high-quality cost-effective accessories.
3. Timely after-sale service
We have over 15 skilled technicians offer after-sale service, will be sent to the customer's factory to assist in the installation and debugging of the production line until it runs well and asked for quick responses to customer questions.
4. One-stop solution
ZHONGHE provides one-stop service, including market analysis and professional technical consultation, raw materials, equipment installation, personnel training, professional after-sales service team, renovation of old equipment.
5. Quality control
We guarantee strict quality control of equipment in production, before leaving the factory and a complete quality management system for purchased parts.
Customers are always welcome to make videos or come to the factory to know the production status.
6.Pre-sales service
According to the needs of customers, to provide data, pictures, videos for reference, to give timely answers to customer questions, to make customers satisfied is our purpose
7.After-sales service
We offer installation, one year warranty, lifetime parts replacement and repair services.
Customers can contact us anytime and anywhere by email, and if necessary,
we will let professional technicians to solve the problem.
FAQ
Frequently Asked Questions
About Customization :
Product parameters are for reference, all of our products size, yield, color, etc., can be customized
Delivery date:
25-30 days
Price changes:
The price of the product will change according to the real-time price of the raw material
Nature of the Company:
We are a company integrating industry and trade, with our own factory
Can I visit the factory:
Welcome
