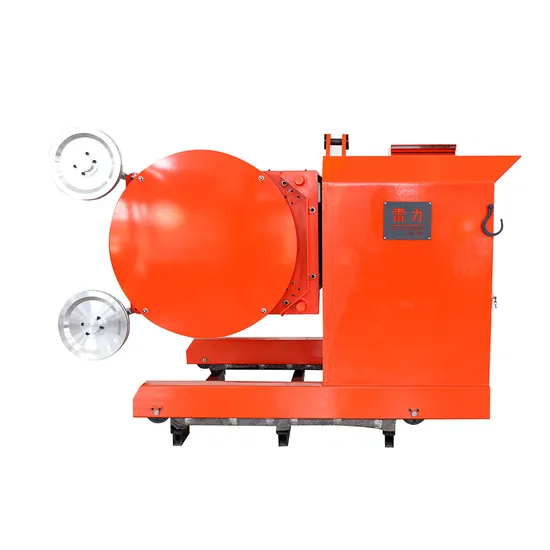

75kw Granite Quarrying Wire Saw Machine
| US$12,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
LLKS-75
Usage
Granite, Marble
Application
Stone Industry, Stone Cutting
Source Voltage
380V
Automation
Automatic
Cutting Ability
High Speed
Control
Stone Cutting
Main Motor Power
55kw
Walking Motor Power
1.5kw
Wire Saw Speed
0-40m/S
Transport Package
Wooden Packing/Pallet Packing
Specification
2156mm*1468mm*1620mm
Trademark
LEILI
Origin
China
HS Code
84641020
Production Capacity
500 Set/Year
Product Description
FeaturesDouble frequency converters and PLC ensure auutomaticlly adjustment of moving speed, in order to keep the wire be
in the best wcrking condition
No need to distinguish or chang the power phase, the machine has over-load protection, lcking phose proteclion
and terminal limit protection..
The lateral moving and the rotation of head are controlled by electric motor, Photoelectric pГroximity switch installed
on the head for limitation protection.
Control plotform display the key pararameters such as the main motor set current, rotation speed of main motor, etc.
Two operoting mode, monul and automatic, can be shifted. At the same time, remote control device can be selected,
which can be used for remote control operation ,and one person can operate multiple devices.
