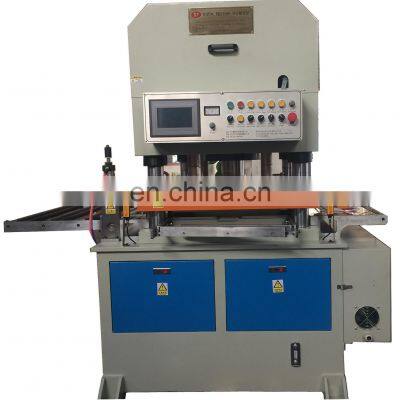

large area Fully computerized automatic die cutting machine

Product Description

Product Description
Products DescriptionDP-40TA Fully computerized automatic die cutting machine large area Fully computerized automatic die cutting machine Electronic positioning,automatic adjustment, precision and accurate, and the precision and accuracy can be controlled in 0.01 to 0.03 mm, push board back and forth precision can be controlled in 0.02 to 0.05 mm There is shockproof board installed at under-chassis , therefore , the machine body is stable and reliable Applies to punch electronic materials such as aluminum foil ,PET, protective film , Mylar through cutting or kiss cutting, all kinds of precision components of stamping forming PLC + man-machine automatic programming control ,oil system adopts integrated control, and there is photoelectric protection Technial Data ITEM NO.PressureMax feeding widthDie cutting areaMain engine powerVoltagecutting speedTonmmmmKWVtimes/minuteDP-40 TA40500910*4007.53 phase AC380V 50HZ25work table heightmax open distancemax traveling distanceprecisionpacking sizeweightcutting typemmmmmmmmCBMKGwork with mould to achieve kiss cut and die cut800100100± 0.05ACCORDINGLY4500function : Used for die cutting genuine leather,microfiber , PE/ PVC/PP etc plastic film , paper , foam, EVA sponge , non woven etc kiss cutting , gasket die cutting ,IN MOLD LABEL DIE CUTTINGDetails description of machine : I , unwinding part ---------------max width 500mm 1, First unwind : 3 inch air-shaft , AC Motor , frequency control web guide system to let material alignment 2, unwinding effective width : 500mm , max diameter is 600mm , bear weight at 136KG 3, touch dancer sensor for first guiding roller 4, Servo motor control the 2 pulling roller , pulling roller is rubber material and hardness must at 75--80 degree , opening height is adjustable at least 24mm II , Main Machine ------------ Die cutting area 500*950mm 1, Four shaft hydraulic machine 2, max cutting force : 30 Ton 3, shock proof 4, with light for the die cutting part so that easy installing mould and watch the die cutting part 5, plane die cutting area 950mm length , 500mm width 6, Safety Light Curtains at four corner .III, electronic PLC control 1, LCD touch screen , computer control base 2, with password for data protection 3, can save the datas that setted 4, low maintainance5, all the parts are under CE safety standard , electronic parts have CE mark 6, all the cutting / unwinding length and number are can set in the touch screen7, cutting depth precision control at 0.025mm 8, stroke is controlled in 50--101.6mm IV ,die cutting mould installing with clamp tool and locking tool so that can put mould in directly and then locked , change mould in few time V, mould plate package 1,with up and down cutting boards 2, stainless steel material mould plate , polished , easy control the cutting depth , can cutting both kiss cut and through cut3, one piece PET or PVC sample for mould protective PAGE 3VI ,Label collection system waste rewind roller conveyor belt to transfer out the after die cutted IML label pneumatic system to press after cutted material Details Imagesdie cutting machine design this is design that for customer checing , if everything is suitable for their requirement or notmore details are can use picture design and video to talking about MACHINE FINISHED PRODUCTIONBELOW IS MAIN DIE CUTTING AREAWhy Choose UsCertificationsContact usWechat : Li13732669376 Skype : dapengmach（＠）hotmail ( dot ) com company name : Kunshan Dapeng Precision Machinery Co.,Ltd address : No. 131, Shunchang Road , Zhoushi Town , Kunshan , Suzhou city, Jiangsu , China/c/dapengmachineryTelephone: 86-512-55001889 /55007849 whatsapp 0086 13732669376
