Gouging Carbon Rod, Gouging Rod, From Dia4 to Dia19mm

Product Description

ABOUT US
GES Graphite Inc. established in 1958 in USA ,with a family that has been in graphite business for over 60years, GES Graphite has established itself as a reliable supplier of quality products. Now the third generation of managers went on to create miracles in the graphite industry and set up another new brand GES-AGM after purchased GrafTech facility in 2018.
GES Asia-Pacific Co.,Limited , as a branch of GES Graphite Group from China, together with GES global partners has gained extensive experience and great achievement in graphite field.
GES Asia-Pacific Co., Limited specializes in supplying graphite and carbon products. Over 30 years experiences in overseas business.Our experienced staff can help you match your requirements with the right graphite product.
Our Products:
From graphite electrodes, specialty graphite, Graphite Powder, Graphite Machined Parts,Gouging Carbon Rods, and your other graphite needs.

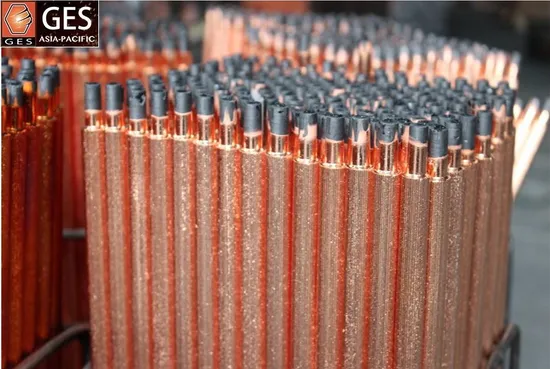

Gouging Carbon Rod Introductions:
Regular Grades: Pointed tyep, gouging rods used for cutting, welding, defects removing, making holes, welding inspection and removing over-welded parts. --Regular size(dia x length): 4*305; 5*305; 6*305; 6.5*305; 6.5*355, 6*455, 8*305, 8*355, 8*455, 8*510, 9*305, 9*355, 9.5*305, 10*355, 10*455, 10*510, 12*305, 12*355, 12.7*305, 12.7*355 Jointed type, gouging rods have the added benefit of working without stub loss with each rod having male & female parts, can be used with manual and automatic torches. --Regular size(dia x length): 8*355J, 8*430J,10*355J, 10*430J, 10*455J, 13*355J, 13*430J, 13*455J, 16*355J, 16*430J, 16*455J, 19*355J, 19*430J, 19*455J, 19*510J Other Grades: Pointed Gouging Carbon Rods (A.C.) are designed to produce a U-shaped groove with low levels of smoke and slag. Blasting copper gouging rods are used to cut welding defects, removes mould pits and produce mould holes. Flat gouging rods are designed for close tolerance metal removal and sacrificing application producing a rectangular groove. Hollow Core Gouging Rods are designed to produce a U-shaped groove with low levels of smoke and slag. (1) Below are sizes for regular grade, Pointed type gouging rods (D.C.):

Products Code	Dia. x Length(mm)	Current Range(A)
GCP04	4x305(355)	150-200
GCP05	5x305(355)	150-250
GCP06	6x305(355)	300-350
GCP06.5	6.5x305(355)	320-350
GCP07	7x355	350-400
GCP08	8x305(355)(400)(455)	350-450
GCP09	9x305(355)	450-500
GCP09.5	9.5x305(355)	500-550
GCP10	10 x305(355)(400)(455)	500-550
GCP11	11x305(355)	600-650
GCP12	12x305(355)	750-850
GCP12.7	12.7x305(355)	800-900
GCP13	13x355(510)	800-1000

(2) Below are sizes for regular grade, Jointed type gouging rods (D.C.):

Products Code	Dia. x Length(mm)	Current Range(A)
GCJ08	8X355(430)	450-500
GCJ10	10x355(430)(455)	550-700
GCJ13	13x355(430)(455)	900-1100
GCJ16	16x355(430)(455)	1100-1300
GCJ19	19x355(430)(455)	1300-1800
GCJ25	25x430	1600-1800
