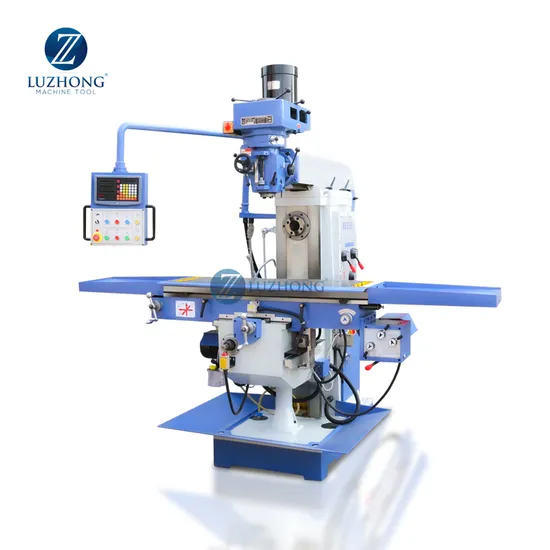

High precision turret conventional model X6336 milling machine with CE
Basic Info.
Model NO.
X6336
Type
Tool Milling Machine
Object
metal
Structure
Flat
Milling Cutter Type
configuration
Milling Cutter Structure
Overall Welding Tooth
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
name
High precision turret conventional X6336 milling
Table size
1500*360mm
Table travel
1000/320/450mm
Spindle travel
127mm
Spindle taper
R8
Distance between spindle nose and table
140-590mm
Transport Package
Plywood Case with Steel Base
Specification
2600*2200*2550mm
Trademark
luzhong
Origin
China
Packaging & Delivery
Package Size
2620.00cm * 2220.00cm * 2570.00cm
Package Gross Weight
2420.000kg
Product Description
High precision turret conventional model X6336 milling machine with CEProduct Description
Product Parameters
| SPECIFICATIONS | Units | X6336 |
| Table size | mm | 1500*360 |
| Table travel | mm | 1000/320/450 |
| T slot(number-width*pitch) | - | 3-18*80 |
| Spindle taper | - | IS040 7:24 |
| Horizontal spindle taper | - | IS050 7:24 |
| Spindle speed range(steps) | 50HZ:65-4500(16) 60HZ:80-5440 | |
| rpm | opt. (variable)65-4000 | |
| Horizontal spindle speed range(steps) | - | 60-1800 (12) |
| Spindle travel | mm | 127 |
| Spindle feed range(steps) | mm | 0.045,0.086,0.142 (3) |
| Distance between spindle nose and table surface | mm | 140-590 |
| Distance between horizontal spindle axis and table surface | mm | 0-450 |
| Main motor power | kw | 3.7( V)/4( H) |
| Head rotation (left - right) | o | ±90° |
| Head rotation (front - rear) | o | ±45° |
| Machine weight | kg | 2400 |
| Overall dimension | mm | 2600*2200*2550 |
Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
