High Efficiency Automaitc Hydraulic Travelling Head Plastic Cutting Machine

Product Description

Hydraulic Travelling head Shoe making machine
USE AND FEATURES
It is suitable for continuously cutting large batch of regular (or same specification) non-metallic coiled material by the cutting die. It is especially suitable for cutting such as sports goods (ball), abrasives (abrasive paper), shoes (sole, insole, shoe-pad, upper of a shoe ), medical supplies and etc.
1. Double oil cylinders,precision four-column auto-balancing link structure, which can guarantee uniform cutting depth of each cutting position.
2. Precision ball screw drive is adopted for accurate positioning movement and stable operation.
3. Rubber roll auto-feeding by air-operated or manual, PLC touch screen program control the distance of traveling head automatically sidesway and rubber roll automatically feed.
4. Special cutting mode such as automatic dislocation,reducing cutting times, which can reduce wastage and save raw materials.
5. It has three cutting operating mode such as manual, semi-auto and full-automatic. When cutting in full-automatic mode, operator only need pick up the finished product directly without interruption, which can greatly increase work efficiency and reduce the labor intensity.
6. Special fixture can be simple & fast installed and fixed the cutting die.
7. When cutting, using the safety grating to ensures high safety of operators.
Technical parameters

Max.cutting force	350KN	400KN	500KN
Stroke adjustment range	0-120mm
Range between the working tables	30-150mm
Sidesway speed of traveling head	50-250mm
Feeding speed	20-90mm/s
Size of traveling head	500*500mm		600*600mm
Size of lower worktable	1600*600mm		1600*750mm
Motor Power	3kw		5.5kw
Overall dimension	2260*1180*1900mm		2360*1350*1950mm
Total weight	2500kg	2600kg	3500kg

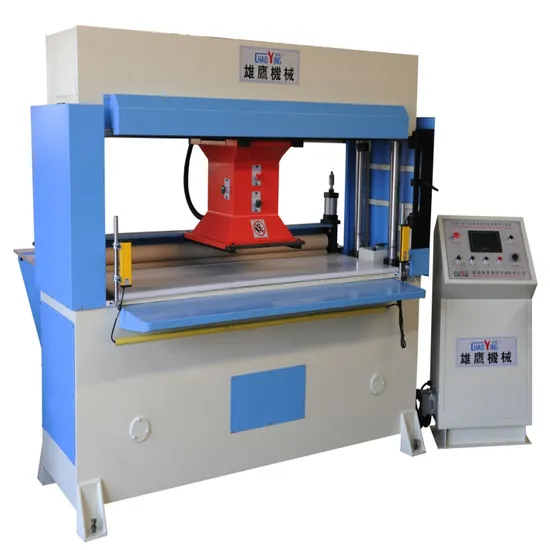

Product pictures
Note: If request the video link of machine operation, Please contact me .
Our company Jiangsu xiongying Precision Machinery Co., Ltd. Specializes in making hydraulic cutting machine, die cutting machine, cold press machine, high speed slicing machine, multi-blade sawing machine, embossing machine and such other precision machine and general machine. Our company covers an area of 14000m2, as a large enterprise in this industry, we have powerful technical force, complete production equipment, nice environment and convenient transportation condition. Our company is located in Yancheng City Dagang Industry Zone of Jiangsu Province and this town is called as "China Shoe Machinery City", which belongs to National Spark Technology Concentration Area.
After-sales service:
Guarantee is one year, but maintenance is lifelong. Replacement is free and ex-factory. All parts have to be delivered within 12 months (carriage paid). Guarantee excludes every worn or torn parts . Replacement handwork is excluded and it will be done by the buyer. The supplier is not responsible for any rewards for, damages or last earnings met by buyer. Guarantee is not valid if the machine is used the wrong way or it is not serviced as shown in our technical handbook.
Guarantee of quality :
The Manufacturer shall guarantee the goods are made of Manufacturer's best materials, with first class workmanship, brand new, unused and correspond in all respects with the quality, specification and performance as stipulated in this Contract. We have Q/C department to control the quality from raw material to the finished product. When the machine was finished, we will send you the inspection video or photos. Or you can come to our factory to check it by yourself. As well as we have professional experience for packaging, so you can one hundred percent sure about our quality.
Lifelong service:
After the warranty period expires, our company will offer lifelong service to all contract-honoring clients and timely provide clients with spare parts, products and technical service at the most favorable price.
File service:
After the contract is implemented, we will establish files for clients, which include sales contracts, technical parameters, production task forms, commissioning reports and acceptance forms, relevant technical drawings, etc.
Yancheng Xiongying Precision Machinery Company own the certificate of ISO9001, CE and so on, also we have export and import license. "Xiong ying" branch series die cutting machine cooperated with the wellknown international company of Hongkong, Italy and UK.Our products in 60% percent export to more than 30 countries in the world wide.
FAQ
1. Are you the factory or trading company?
We are the direct factory.
2. What is your MOQ of your Product?
Normally our MOQ is 1 set.
3. Do you have any certification on your product?
We have CE approved for some of our product.
4. What is your main market for the overseas?
Our mainly exported to Iran,Indian,Italy and so on.
5. What is the warranty of your product?
We have 1 years warranty.
We can make the machine according to your specifically demand , for example the color, the motor information, the cutting force, the working table size, your brand name logo etc.
