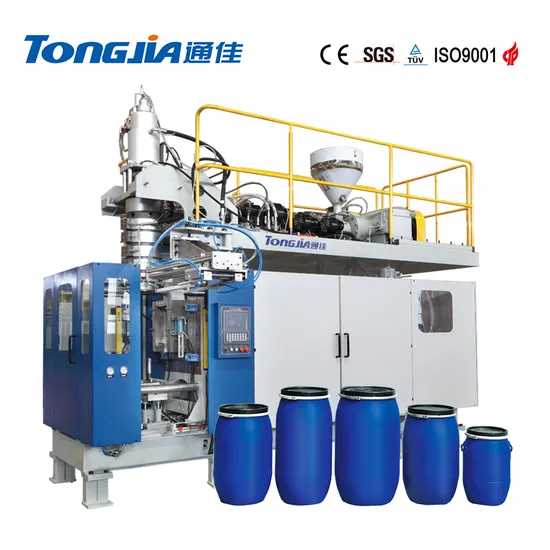

Plastic Open Top Drum Making Machine Blow Molding Machine

Product Description

Product Description
Tongjia TJ-HB30L-100L series hollow blow molding machine is mainly composed of frame, plasticization system, die
head, mold opening and closing mechanism, lifting device, hydraulic system, pneumatic system, cooling system, electrical
control system, etc.
This series of blow molding machine adopts international leading configuration, and is specialized in producing various
chemical plastic barrels, medical packaging, child safety seats, transportation facilities and tool bags, etc., to meet customer
needs for hollow products of 30-100L with different specifications.

Configuration
Clampingsystem	Fixed clamping system
Injection system	Hardeoed face gear redocer + lmponed freqooncy inverter
Die system	Special steel center-feeding die
Hydraulic system	All imported hydraulic valve +hydraulic servo control system
Control system	Imported PLC + Europe imported complete machine control system (GEFRAN from Italy )

Parameters
Specifications	Units	TJ-HB30L	TJ-HB60L	TJ-HB100L
Max. product capacity	L	30	60	100
Machine dimension	m	4.85x3.5x3.7	4.9x3.5x4.0	5.7x3.9x4.5
Machine weight	Ton	10	12	16
Clamping Unit
Mold platen size	mm	780x700	885x750	1060x1060
Power
Total power consumption	KW	86	108	140
Avenrage power consumption	KW	35	45	84
Extruder unit
Screw diameter	mm	80	90	100
Plasticising capacity	kg/hr	100	120	140
Screw heating power	KW	20	20	26
Extruder driving power	KW	30	37	45
Die-head
Die head heating power	KW	10	12	25
Accurroujator capacity	L	4.4	6.6	12.8

About us
After Sales Service
1.12 Hours----We will give you reply within 12 hours.
2.Pre-sale service----We provide your professional service in fluent English.
3.Delivery----1~3 months.
4.Free Design----Professional engineers, free designs.
5.Certificates----The third-party verification service provider.
6.After sales service----OEM service provide; Design service provide; Buyer label provided.
Why choose us?
1.Our factory was founded in 1953 and we are market-leader in this line in China.
2.In the plastic machinery field, we have more than 30 years of relevant experience.
3.Our products extend all over the national and over 90 countries and areas of the world.
4. Our spare parts are international famous brand components.
5. Engineering team provide you with the most suitable model towards your products.
6.We will send our engineers to your factory installation the machine and train your worker after the machine
arrive your factory.
7.We will offer our best price and quality and hope have a good cooperation with you.
8.Our machines run stable, high output and our technology from German. FAQ
Q1:What's your warranty policy?
A1:The Seller will guarantee the machine for 18 months since the date of shipment(that is leaving from Seller's
factory) or the seller will guarantee the machine for 12 months since the date of starting installation and adjustment,
whichever comes first.

Q2:What's your minimum order quantity?
A2:Min order quantity:1 set or by negotiate with each other.

Q3:What package do you use for the product?
A3: Be Coated with anti-corrosion oil, and covered with plastic film, then packed in wooden box.

Q4:Do you have technical instruction if I buy your product?
A4:Please read the user manual carefully for your reference, we have detail instruction on it. If your problems still can
not be solved, welcome to contact us for help.

Q5:What is your overseas service?
A5:We will provide high quality overseas service ,our technical staff will be able to provide you with technical support,
for you personally to overseas assembly and test equipment.

Q6:Will you conduct training for our staff here?
A6:Yes, we will provide technology support to factory technology, training for the relative person.

Q7:What are your terms of payment?
A7:We accept T/T, L/C, D/P,Western Union, Paypal, Money Gram.
Q8:I am very satisfied after I read your FAQ, how can I start to purchase my order?
A8:Please click the bottom of this page or contact our sales on Trade Mange online! Recommend products
