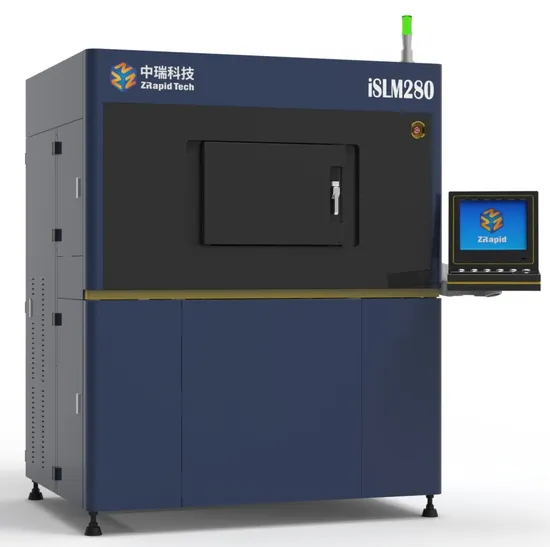

Metal 3D printer ZRapid iSLM280 for conformal cooling mold inserts

Product Description

Product Description Metal 3D printer ZRapid iSLM280 for conformal cooling mold inserts
Features: •High accuracy, achieve to 0.05mm •Directly manufacture metal functional parts, vastly shorten the production process •Metal functional parts have metallurgical bonding structure, high density and great mechanical property •Directly manufacture complex geometry sharp aerospace functional parts •Various materials, including pure metal powder and alloy metal powder •Suitable for customizing single or small batch functional parts •Programmable user software •Data packages for different materials building •High vacuum, low leaking mechanical design •Intelligent partitioning laser scanning path •Directly delete damaged parts in printing process Detailed Photos
Product Parameters Technology: Selective laser Melting, additive layer manufacturing
Material Class: Metal Powder (stainless steel, tool steel, nickel alloy, aluminum alloy, titanium alloy)

LASER SYSTEM
Type	Fiber Laser (IPG)
Wavelength	1064-1080nm
Power	500W
RECOATING SYSTEM
Process	Scraper recoating
Normal build style	0.035mm
Quick build style	0.035-0.05mm
Precise build style	0.02-0.35mm
OPTICAL & SCANNING
Beam (diameterΦ)	0.06-0.20mm
Focus style	ScanLab galvanometer scanning
Part drawing speed	Recommended 1.0-4.0m/s
Beam jump speed	Recommended 10.0m/s
ELEVATOR
Drive method	Servo motor precise reduction drive
Elevator motor resolution	0.0005mm
Maximum part weight	50kg
BUILD VAT
Volume	Approx. 25.0L
Build envelope	280mm(X)*280mm(Y)*350mm(Z)
Heated style	Precise resistance wire heating
Gas shielded	Nitrogen, argon shielded
SOFTWARE
Operating system	Windows 7, Ethernet, IEEE802.3
Build software	iSLM (Presto) build software
CAD interface	3D design software, STL file format
INSTALLATION CONDITION
Power	200-240VAC 50/60Hz, single- phase, 25Amps
Ambient temperature	20-26ºC
Relative humidity	Less than 40%, non-condensing
Size	1.75m(W)×1.36m(D)×2.16m(H) (Not include the computer)
Weight	Approx. 1800kg
WARRANTY
Laser	5000 hours or 12months (whichever comes first)
Main machine	One (1) year from installation date

Applications
Our Advantages •High market share in China, more than 3000 sets industrial 3D printers installed in China and all over the world.
•Have been researched 3D printing technology since year 1998.
•One-stop solution for machine, software and materials.
•Rich product range including SLA, SLM, SLS and ceramic machines.
•World Well-known brands for key components to guarantee the machine quality and stability.
•English and fast response online support guys.
