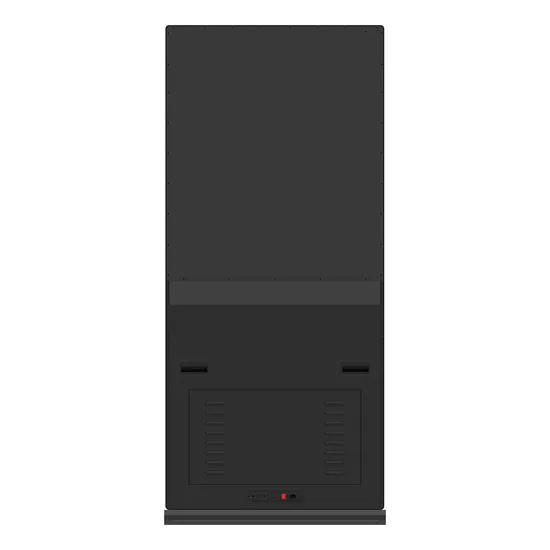

65inch 4K Ultra HD All-in-One Interactive Digital Signage Display

Product Description

65inch 4K Ultra HD All-in-one Interactive Digital Signage
-Durable Metal Housing and Stylish Look; -Front protected with tempered glass; -LCD Panel Brand: Chimei , AUO, LG, Samsung, SHARP; -Customization design available, Vertical or horizontal optional; -Built-in high-performance CPU; -High stability, High Reliability; -7×24 Hours uninterrupted duty; -Industrial stability;

Operating System

Optional

Android solution

All in One PC

OS

Support Android 7.1 / 8.1

Support Windows 7/8/10, Linux

CPU

RK3288 CPU, Quad-core cortex A17,1.8GHz

Intel ® Celeron J1900/J1800 CPU, 2.41GHz

GPU

ARM Mali-T764 GPU

Intel ® HD Graphics

RAM

DDR3 2GB

DDR3L 4GB/ 8GB

ROM/SSD

NAND FLASH 8GB/ 16GB

64GB/ 128GB/ 512GB

Interface

USB

2* USB 2.0 (Pin 4* USB2.0, 1* OTG, 1* Micro USB)

3* USB 2.0, 1* USB 3.0 (Pin 2* USB 2.0)

Display

1* HDMI, 1* LVDS

1* HDMI, 1* VGA, 1* LVDS

Network port

1* RJ45

1* RJ45, 1* Mini-PCIe

Serial port

4*TTL/RS-232

2*RS-232

Card slot

TF card socket self-flashing

SIM card slot

LCD Panel

Panel

65inch

Brightness

350-500 cd/m² (Typ.)

Resolution

1920*1080/ 3840*2160

Display area

1427.5mm*802.5mm

Viewing angle

89/89/89/89(L/R/U/D)

Display color

16.7M

Contrast

1000:1

Aspect ratio

,16:9

Backlight life

50K(Min.) (Hours)

Internet

WiFi

802.11b/g/n

Ethernet

10M/100M network port

Bluetooth

Bluetooth 4.0

Media Player

Video format

MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.,support up to 4k

Audio format

MP3/WMA/AAC etc.

Image Format

JPEG

Other

Input voltage

110V-240V, 50Hz/60Hz

Operating temperature

-10 ~ 50 °C

Storage temperature

-30 ~ 80 °C

Speaker

5W*2

OSD language

Support Chinese, English and other languages

Installation method

Floor standing, with base

Case/color

White/silver/black, high-quality steel profile

Optional Function

Touch screen

10-point capacitive touch/10-point infrared touch

4G

4G module

Lead Shine International Co.,Ltd was established in 2008. We are one of the leading manufacturer and supplier of all series commercial displays, such as Wall Mounted Digital Signage, Floor Standing Totem Display, All in one display, Interactive Kiosk, LCD Video Wall, High Brightness LCD Display and Outdoor Waterproof Display. Any OEM is available.
The advantage to work with us is:
1) Experienced & Strong R&D team;
2) Apply best quality LCD Panel & electronic part;
3) Fast trouble shooting and technical support;
3) Offer free spare part for replacement during the warranty period;
Office & Factory
FAQ
Q1.Are you a factory or trading company?
A:We are a OEM/ODM factory. We are experienced and professional in commercial display development and manufacturer.
Q2. Is sample unit available?
A: Sample unit is available. We always supply sample to our clients for testing.
Q3.How do you gurantee the quality?
A: We have strict quality controlling to make sure the products we supplied with the best quality.
Q4.How long is the warranty time for your prodcuts?
A: 1 year warranty is quoted normally. But customer can choose to extend warranty to 2 years or 3 years.
Q5.When will you make the delivery after the order placed;
A: We can make delivery within 5-25 working days based on the models and quantities of your order.
