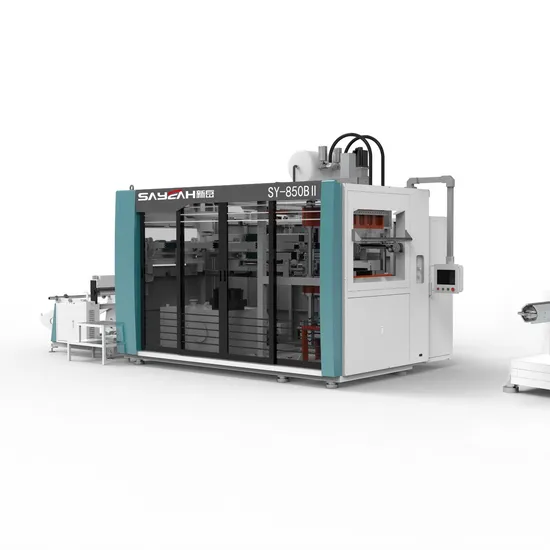

Disposable Cup Bowl Forming Machine for Hot or Cold Beverages and Noodles

Product Description

Disposable Cup Bowl Forming Machine for Hot or Cold Beverages and Noodles Product Description
1. The operation of the machine is controlled by PLC and touch screen
2. The mold guide plate adopts four guide posts to ensure the mold clamping accuracy
3. The chain frame adopts fast cooling and wear-resistant design
4. The chain frame exits the safe mold change system, which can greatly reduce the difficulty of mold change
5. Heating in 5-6 sections of the heating furnace to ensure that the materials are fully heated in the heating furnace
6. The cup blowing system can adjust the cup blowing angle and air volume
7. Integrated design of hydraulic system to facilitate overhaul and maintenance
8. Servo stretching system, quality assurance, durable and not easy to break
9. Simple operation, reliable performance, low noise and high quality
10. Integrated design of electric cabinet to simplify machine assembly and wiring installation process
Product Parameters

Model	SY-850BII
Max.Forming Area	850x550mm
Max.No-Load Speed	30Cycles/min
Running Pattern	Hydraulic
Feeding Driven	Motor With Encode
Stretching Pattern	Servomotor
Sheet Specification	THK:0.2-2mm,W:Max.870mm
Max.Forming Depth,Sample Height	≤140mm(with robot) ≤175mm(by blowing)
Max.Sheet Roll Dia	1100mm,1T
Electrical Consumption	90kw/h
Overall Power	215kw
Dimension(LxWxH)	6800x3380x3300
Weight	8T

Main Electrical Components
Industrial control system	DELTA TAIWAN / Inovance Shenzheng
PLC	DELTA TAIWAN / Inovance Shenzheng
Touch screen interface	DELTA TAIWAN / Inovance Shenzheng
Feeding servo-motor and drive	DELTA TAIWAN / Inovance Shenzheng
Stacking servo-motor and drive	DELTA TAIWAN / Inovance Shenzheng
Forming servo-motor and drive	DELTA TAIWAN / Inovance Shenzheng
Cutting servo-motor and drive	DELTA TAIWAN / Inovance Shenzheng
Vacuum pump	RUFUS,Jiangsu
Infrared ceramic heater	Tianbao, CHINA (3 years Warranty)
Solid state relay	SHANGHAI, AOYI
Pneumatic components	MAC,USA/SMC, Japan/ Germany

According customers' requirements, there also Lenze system for choosing Our Advantages
