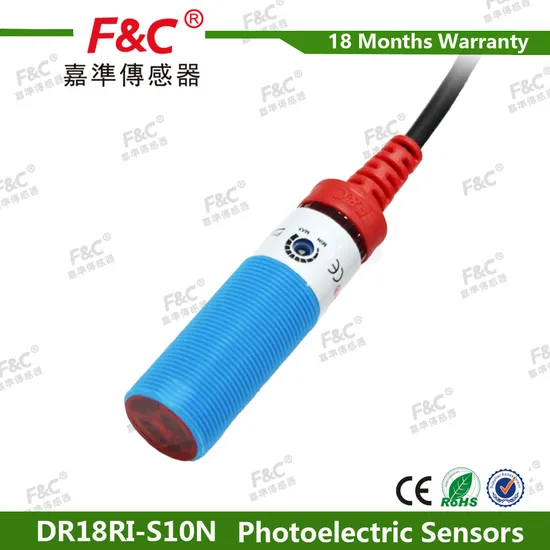

F&C M18 Round Miniature Through-Beam Photoelectric Sensor Strap Joint

Product Description

Factory DR18 series round photoelectric sensor Standard Polarizing Mirror Reflector Type: The sensor utilizes a polarizing mirror reflector, which enhances the accuracy and range of its light detection. This design helps minimize interference from external light sources, ensuring more stable and reliable performance in environments with fluctuating lighting conditions.
Integrated Molding Structure: The sensor is constructed using an integrated molding process, which ensures a compact, durable, and highly resilient design. This one-piece construction minimizes the risk of component failure due to weak joints or seams, offering better protection against mechanical stress and environmental factors.
Available with Elbow or Straight Out Cable Options: The sensor is available with either elbow or straight cable exits, allowing for flexible installation and easy integration into various setups. This versatility makes the sensor ideal for a wide array of applications where space or wiring configuration might vary.
Patent-Pending Red Tail Sleeve for Bend Protection: The sensor features a patented red tail sleeve that protects the cable from bending and wear. This unique design extends the longevity of the sensor by preventing damage to the cable, even in environments where the sensor may be exposed to frequent movement or mechanical stress.
Application
DR12 series photoelectric

Installation method	Sensing distance	Model		Light souatus LED	Connecting method
		NPN	PNP
Through beam	10m	DR18TI-S1000N R2M	DR18TI-S1000P R2M	Infrared LED	Φ4×2M/2-wires Φ4×2M/3-wires
	10m	DR18TI-S1000N/15D	DR18TI-S1000P/15D	Infrared LED	Φ4×2M/2-wires Φ4×2M/3-wires Lead 150mm with M8 connector
	5m	DR18TI-S500N R2M	DR18TI-S500P R2M	Infrared LED	Φ4×2M/2-wires Φ4×2M/3-wires
	5m	DR18TI-S500N2/15D	DR18TI-S500P/15D	Infrared LED	Φ4×2M/2-wires Φ4×2M/3-wires Lead 150mm with M8 connector
Mirron	2m	DR18MR-S200N R2M	DR18MR-S200P R2M	Red LED	Φ4×2M/3-wires
	2m	DR18MR-S200N/15D	DR18MR-S200P/15D	Red LED	Φ4×2M/3-wires Lead 150mm with M8 connector
Diffuse reflection	40cm	DR18RI-S40N R2M	DR18RI-S40P R2M	Infrared LED	Φ4×2M/3-wires
	40cm	DR18MR-S40N/15D	DR18MR-S40P/15D	Infrared LED	Φ4×2M/3-wires Lead 150mm with M8 connector
	10cm	DR18RI-S10N R2M	DR18RI-S10P R2M	Infrared LED	Φ4×2M/3-wires
	10cm	DR18RI-S10N/15D	DR18RI-S10P/15D	Infrared LED	Φ4×2M/3-wires Lead 150mm with M8 connector

Specific Parameters
