Powerful Mixer for Silicone Sealant and High Viscosity Materials
| US$950.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
DPM-M60
Application
Viscous Fluid
Application Area
Agricultural Chemicals, Chemical, Engineering & Construction, Food, Metallurgy&Mineral, Pharmaceutical
Certification
API, CCC, CE, GOST, ISO
Condition
New
Control System
PLC Control
Cooling Method
Optional
Heating Method
Optional
Main Material
Carbon Steel, Stainless Steel
Mixing Capacity
Customized
Safety Features
Safety Lock
Speed Control
Variable Speed
Speed Range
60 R/min & Above
Stirring Type
Forced
Temperature Control
Customized
Working
High Speed Mixer
Mixing Component
Dispersing Disc and Stirring Paddle
Drum
45# Steel/Stainless Steel
Seal
Multiple Combined Seals
Shaft
Adopts Supporting Beam Structure
Operation
Stable Performance
Batching
High-Precision Batching System
Mixer Type
Planetary Mixer
Layout Type
Verticle
Mixing Drum Shape
Drum
Operating Type
Continuous Operating
Warranty
3 Years
Transport Package
Wooden Case
Trademark
Lederim
Origin
Shenzhen, China
HS Code
8477800000
Production Capacity
2000sets/Year
Product Description

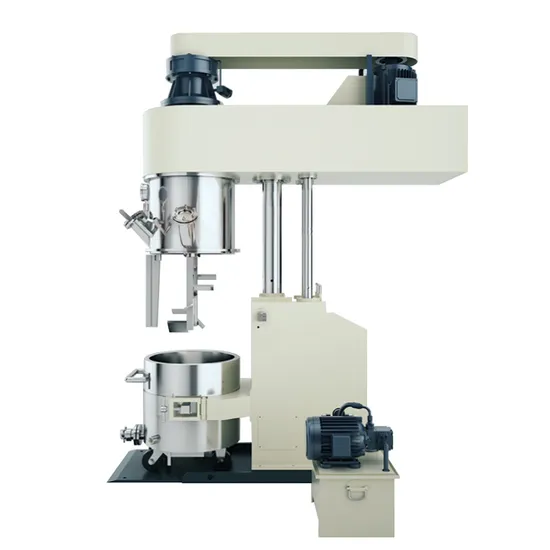

Planetary Mixer
Silicone Sealant Mixer/MS Sealant Mixer
Dual Planetary Powerful Mixer
Advantage Performance
Dual planetary mixer combined mixing, homogenization and dispersing of powder and liquid materials. The dispersing disc and stirring paddle realize revolution and rotation simultaneosly. The speed can be adjusted by the frequency converter. The special mixing method makes the materials strongly dispersed and pressed to ensure materials fully dispersed and mixed.
√ Stable performance and low accidental failure rate. √ Improve operation condition by dust-free during feeding and no dust leaking during mixing.
√ Paddles rotate without repeating path and stir evenly without blind area to improve uniformity.
√ Equipped with high-precision batching system.
√ Adopt high precision gears with more accurate moving track to realize higher homogenization uniformity and production efficiency.
√ The dispersing disc and stirring paddle realize revolution and rotation simultaneosly.
√ The planetary shaft adopts supporting beam structure with high support strength and higher critical speed. The equipment does not resonate under high speed conditions.
Technical Parameter
| Model | Mixing Volume | Power | Rev. | Line Speed | |||
| DP-M60L | 60L | 5.5kw | 7.5kw | 34rpm | 68rpm | 3300rpm | 21m/s |
| DP-M100L | 100L | 15kw | 18.5kw | 34rpm | 56rpm | 2930rpm | 23m/s |
| DP-M200L | 200L | 22kw | 30kw | 33rpm | 53rpm | 2750rpm | 23m/s |
| DP-M300L | 300L | 30kw | 37kw | 33rpm | 53rpm | 2200rpm | 23m/s |
| DP-M650L | 650L | 45kw | 55kw | 28rpm | 47rpm | 1750rpm | 23m/s |
| DP-M900L | 900L | 75kw | 75kw | 24rpm | 32rpm | 1450rpm | 23m/s |
| DP-M1200L | 1200L | 90kw | 90kw | 18rpm | 28rpm | 1375rpm | 23m/s |
| DP-M1500L | 1500L | 110kw | 110kw | 18rpm | 28rpm | 1375rpm | 23m/s |
Application
Silicone Sealant , MS Sealant, Glass Sealant
High Viscosity Materials
high viscosity adhesives, paints, inks and artificial stones
