Stainless Steel Pipe Tube Making Machine for Slotted Pipes

Product Description

b Product Description

Model	ZG 40 Pipe Making Machine
Pipe Material	stainless steel , carbon steel , galvanized steel
Round Pipe Dia.	8-50.8mm
Round Pipe Thickness	0.2-1.5mm
Square Pipe Dia.	10×10-40×40mm
Square Pipe Thickness	0.3-1.0mm
Rectangle Pipe Dia.	10×10-30×50mm
Rectangle Pipe Thickness	0.3-1.0mm

Factory Price Stainless Steel/Ms Pipe Tube Mill Machine Making SS Square/Round Pipes
ZG40 Stainless Steel Tube Mill is designed to produce welded round pipes, with the characters of advance, steady, perfect and maturity etc. The mill line is newly designed based on practical producing and acquiring the advantages of equipment home and abroad,which is also convenient in operation and maintenance.
Part 1: Un-coiler
Manual operation with adjustable brake
Two sides, coil adapting cone with loading weight: ≤1.5T per side
Part 2: Forming Section
Feeding equipment: 2 roller guide apparatus 3 break down+3 by-pass+3 fin pass Horizontal Stands shaft dia.: 40mm Vertical Stands shaft dia.: 25mm Arrangement:
3-3-1-4 or 4-4-1-4 or customized
Horizontal Stand:
Needle Bearings in operation side Horizontal Stand,it is easy to change and adjust roll sets, will take roughly 40 minutes to change full set roll sets
Part 3: Welding Section
Welding Torch: Single 2 sets squeezing Rollers Advantage for UT Welder: (1) Dust proof, to protect the machine (2) Pipe Welding quality will be much better than TIG Welder; (3) It saves about 30% Argon Gas Consumption; (4) It will improve production speed about 30%

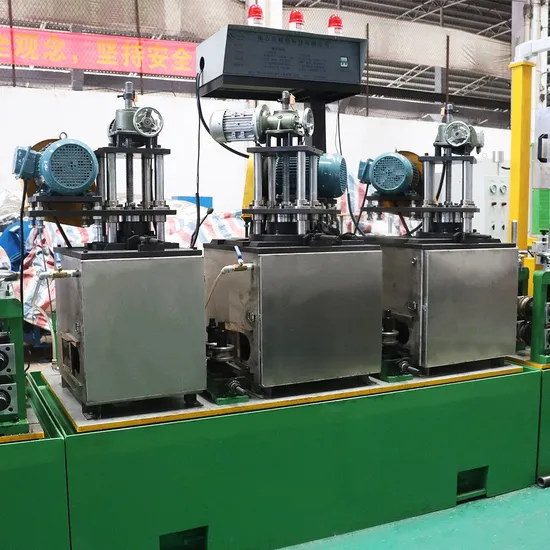

Part 4: Seam Polishing Section
Totally enclosed automatic Grinding head In automatically pressing down polishing system by electric motor, one engineer can operate five set tube mill. And it can make grinding section cleaner and grinding more stable.Totally Enclosed box with grinding head can make grinding section cleaner.
Part 5: Sizing &Turk-Head
Straightening and sizing for pipes
To reset the roundness of pipes Turk Head: 2 Units
Part 6: Cutting Section
Friction Saw Cutter Auto-mechanical Operational panel Cutting length: 4-10m
Metal Saw Cutter
Less burr in the end of the pipe
Part 7: Run-out table
IncludedL: 6m

Product Parameters
Stainless Steel Pipe Making Machine, covering range from 4.8mm to 325mm,and thickness is 0.18mm to 6.0mm. The pipe production machine mainly produces stainless steel pipe, carbon steel pipe. And this pipe making machine not only can make round pipe, square pipe, rectangle pipe, oval pipe and other irregular pipe as well.

Model	Pipe Diameter	Pipe Thickness	Capacity	Major Power
S-ZG40	6-31.8mm	0.2-1.2mm	1-20m/min	5.5KW
ZG40	8-50.8mm	0.2-1.5mm	1-15m/min	7.5KW
B-ZG40	12.7-63.5mm	0.3-2.0mm	1-10m/min	11KW
ZG50	25.4-76.2mm	0.4-2.5mm	1-7m/min	15KW
ZG60	38.1-114mm	0.5-3.0mm	1-5m/min	18.5KW
ZG80	76.2-168mm	1.0-4.0mm	1-3m/min	22KW
ZG100	159-325mm	1.0-6.0mm	1-15m/min	30KW

Our Advantages

As one of the leading enterprises in stainless steel tube mill machine industry, Nanjing Gaobang Energy Saving Equipment Co., Ltd. has been specializing in producing steel pipe making machine, tube polishing machine and Rollers etc.In last 20 years.
To ensure the finished tube mill product quality,Gaobang controls every production process by professional teams, such as design, purchasing of raw material, prouction, process and quality inspection. High quality, competitive price, we are pretty sure that we will be your best choice.
1. how can we guarantee quality? In order to ensure the processing accuracy of the machine and ensure the stability of the machine's operation, the accessories on the pipe making machine are independently processed and produced. We have a variety of processing equipment,such as Horizontal machining center,Vertical Machining Center,CNC lathe,Coordinate Boring Machine. Our products have been widely used in multiple well-known stainless steel enterprises, and won wide recognition and good reputation. 2.what can you buy from us? As one of the leading enterprises in stainless steel tube mill industry, BANGWIN has been specializing in manufacturing Pipe Making Machine, Rollers(Toolings), Pipe Polishing Machine, Pipe Embossing Machine and Slitting Machine in last 20 years. 3. why should you buy from us not from other suppliers? 1.Have an excellent service team; 2.Customized service for client's requiement; 3.High quality, competive price. 4. what services can we provide? Offer Services We can provide pre-sales consultant& On-purchase for everyday 1.Reply Time: Within 1 hours(Not 24 hours) 2.Provide Tube Mill Machine relevant product information 3.Give you technical good suggestion After Service--Provide service 24 hours*7 days per week 1.Test the tube mill machine before shipment 2.Provide installation service, according to customer needs; 3.Training service: teach customers how to use the machine 4 Assistance service:
Improve pipe quality;
Improve production capacity;
Reduce production cost;
Reduce warehouse storage
