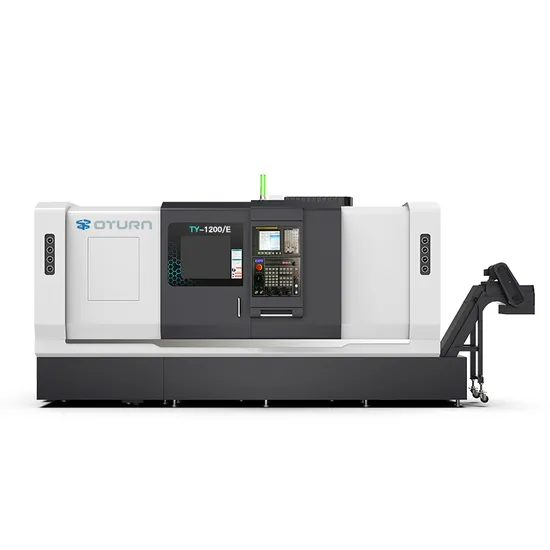

Oturncnc CNC Turret Lathe Slant Bed Lathe Machine Manufacturer with CE

Product Description

Product Description
High-strength HT300 one-piece structure casting iron bed, 30-degree step type flat rail structure, application of finite element analysis, excellent overall mechanical rigidity and stability, and can maintain long-term reliable accuracy, processing stability and tool life, stress relief treatment improve accuracy and stability, high-strength roller rail design, drive system adopts screw pre-tension design, improve response rigidity.
1.The spindle unit system has undergone strict dynamic balance tests, with high precision, good precision retention, small thermal deformation, and good thermal stability. The maximum speed can reach 3200rpm, and the nose deflection accuracy is within 0.003MM. The front end of the shaft uses a large-diameter high-precision double-row roller bearing with a combined oblique contact ball bearing structure. The optimal span two-point balanced support design can withstand radial and axial loads, and can also be used for high-speed precision for users. Cutting can also be used for low-speed heavy cutting, especially suitable for mass production of products with complex shapes, high precision requirements and high finish.
2.High rigidity overall design servo turret. Equipped with a high-precision clutch to ensure its positioning accuracy and repeat positioning accuracy. Use the servo motor to drive the cutter head to rotate for two-way or any nearby tool selection, use the hydraulic principle to loosen and clamp the clutch, and cooperate with the proximity switch to feedback the clutch action signal to quickly and accurately achieve the tool change action.
3.The machine is equipped with THK linear guide rail and ball screw. The heat-treated and precision-ground ball screw can ensure the best precision and durability. Each axis adopts a direct transfer shaft structure and a double-anchor pre-relay method, which can minimize thermal displacement and greatly improve machining accuracy. High rigidity, large size, and heavy-duty linear slide rails can keep the accuracy of the machine unaffected when it is impacted, the displacement is smooth and the noise is low, which can prolong the service life.
4.Standard configuration FANUC system, and the feed drive adopts FANUC servo motor.
5.Perfect hydraulic and lubrication system, using high-quality hydraulic pumps, hydraulic valves and other components, greatly reducing the failure rate. The design of the hydraulic and lubrication system is simple and reliable.
6.Integral hydraulic tailstock with high rigidity structure can eliminate vibration and provide excellent stability. Programmable or manual button control, the expansion and contraction of the sleeve is realized by means of hydraulic cylinder, which is convenient, fast and reliable.
7.Using Taiwan rotary chuck, oil cylinder and automatic chip removal device, which can greatly reduce the labor intensity of the operator and realize safe and efficient production. The above functional components can be controlled by programming. Special fixture. Product Parameters

Item	Unit	TY1200/E
The largest diameter rotating bed	mm	Φ700
Max. processing diameter	mm	Φ640
Max.Swing Over Cross Slide	mm	Φ350
Max. processing length	mm	1150
Spindle nose	type	A2-8
Max. speed of spindle	rpm	3200
Hydraulic Cylinder/Chuck	lnch	10″
Spindle hole diameter	mm	Φ86
Bar diameter	mm	Φ76
Spindle motor power biIP30	Kw	15/18.5
Spindle motor power1:1.4	Nm	200/330
X/Z travel	mm	330/1200
X/Z axis rail specification	spes	45 roller
X/Z shaft wire specifications	mm	4012
X/Z motor power	kw	3.0
Positioning accuracy	mm	±0.005
Repeat positioning accuracy	mm	±0.003
X/Z axis moving fast	m/min	24/24
Tool position	pcs	12T
The knife biock specifications	mm	25X25
Circular cutter holder specification	mm	Ф50
The adjacent tool change time	sec	0.2
Hydraulic tail seat	/	Hydraulic tailstock
The biggest stroke of the tail	mm	970
Morse Slide way	type	Morse 5#
Sleeve diameter	mm	Ф100
Sleeve travel	mm	100
Machine size	mm	3900*2110*2100
Machine Weight	kg	7200
Cutting fluid tank volume	L	300
Cooling water pump power	W	750
Volume of hydraulic unit box	L	45
Hydraulic oil pump motor power	kw	1.5
Volume of lubricating oil tank	L	2
Auto lube pump motor power	W	50

Products Configurations
Company Profile

Quality Control
Our Advantages
FAQ
Q1:How can l choose the most suitable machines ?
Please tell me your specications,we can choose the best model for you,or you can choose the exact model,you can also send us the products drawing,we will choose the most suitable machines for you .
Q2: What's your main products of your company?
We specialized in all kinds of machines,such as CNC Lathe Machine ,CNC Milling Machine,CNC Turning Maching,Vertical Machining Center ,Horizontal Machining Center,Lathe Machines,Turning and milling composite processing so on.
Q3: Where is our factory located? How can l visit there?
We have 5 factories located in Guangzhou, Quzhou, Ningbo, and Guangdong.You are warmly welcomed to visit us.
Q4. How do you transport it?
Provide Transportation Solution DDP/CIF/FOB/FCA
Q5: What's the Payment Terms ?
T/T ,30% initial payment when order,70% balance payment before shipment .
06: What's the MoQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
