Brass Stainless Steel Timer Controlled Electronic Condensate Bsp Solenoid Electronic Air Compressor High Temperature Pressure FKM Viton IP65 Thread Drain Valve

Product Description

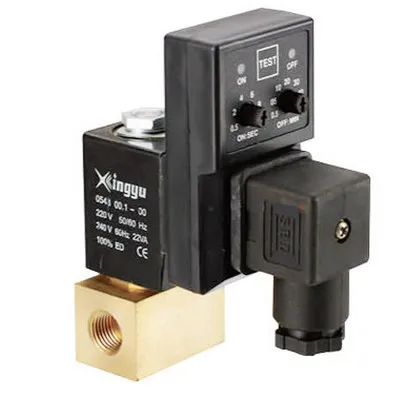

CS-720 Electric Timer Controlled Solenoid Automatic Drain Valve
Ordering Code:
CS - 720 - ○ - ○
↓ ↓ ↓ ↓
RFS Series Material Code Port Size
Product 720 Blank Brass 01 1/8''
3800 S Stainless Steel 02 1/4''
728A W Without Timer 03 3/8''
711 WS Stainless Steel Without Timer 04 1/2''
Speciality:
1. Conforming to CE standard;
2. Fully Automatic ,maintenance-free;
3. Suitable for automatic discharge of condense water in many occasions and automatic irrigation system;
4. Different voltage and port size are available for selection;
5. Interval and working time can be adjustable;
6. Without manual testing switch;
7. ABS Flame-proof house ,can reach IP65 class after right installed;
8. Applicable to a wide range of temperature;
9. Direct-acting ,big orifice ,to avoid blockade;
10. With filter ball valve, port size and manual switch can do any changes ,easy to install and maintain;
Parameters:

Model	CS-720	CS-3800	CS-711
Valve Stype	2/2 Direction action
Connection Ports	1/8" 1/4" 3/8" 1/2" Female		1/8" 1/4"
Working pressure	16Bar 40Bar 80Bar		16Bar
On/off time	On 0.5-10s	On 1s-99h59m59s	On 2s
	Off 0.5-45min	Off 1s-99h59m59s	Off 0.5-120min
Working temp.	-20ºC - 60ºC
Highest media Temperature	160ºC
Valve body	Brass / stainless steel
Orifice	1.9mm 2.5mm 4.5mm		2mm
Protection class Insulation class	F/H class IP65 (with plug)
Voltage	24-240V DC/AC 56/60±10%
Power	AC22VA/DC20W		AC 8VA/DC8W
Mounting	Any place

Overall Dimension:
