Electrostatic Discharge Antistatic PVC Floor for Factory

Product Description

LN-806 ESD PVC Floor
The floor uses the PVC resin as the main component,and utilizes the plastic particle interfaces to form the permanent conductive/anti-static network. In addition, they feature abrasion resistance corrosion resistance, long life, ageing resistance and low dust emission etc.
Technical Data:

Item	Standards	Conductive floor	Dissipative floor
Thickness	EN428	2.0mm 2.5mm 3.0mm
Size	EN426	600*600mm/900*900mm	600*600mm/900*900mm
Weight	EN430	2.0mm-3.8kg/m2; 2.5mm-4.8kg/m2; 3.0mm-5.8kg/m2
Electric Properties	DIN511953 ASTMF-150 OR NFPA99	2.5*104~106 ohm	106~109 ohm
Decay Time	SJ/T10694-2006(1000V +/- 100V <= 2s)	Equal 0.4s	Equal 0.4s
Charge Voltage	SJ/T10694-2006( V < 100V)	Equal 70	Equal 70
Combustion Properties	SJ/T11236-2001 (<10s)	Equal 0.35SFV-0	Equal 0.35S FV-0
Fire Resistance	GRADE DIN4102	B1	B1
Wheel Pressure	EN425	No Influence	No Influence
Amount of anti-wear	SJ/T11236-2001 (<=0.020g/cm2 1000R)	Equal 0.014	Equal 0.014
Anti-wear Properties	EN660PT2	ITEN-T<2.0 mm3	ITEN-T<2.0 mm3
Residual Concavity	EN433/DIN51955	0.03mm (2.0mm) 0.035mm (2.5mm) 0.04mm (3.0mm)	0.03mm (2.0mm) 0.035mm (2.5mm) 0.04mm (3.0mm)
Color Fastness	ISO105BO2	At least 6	At least 6
Dimensional Stability	EN434	>=0.10%	>=0.10%
Resistance to chemicals	DIN423/DIN51958	Offers excellent resistance ask for special sheet	Offers excellent resistance ask for special sheet
Impact sound absorption	VLI,ISO104,ISO717	Approx 2dB	Approx 2dB

LN-806 Safety antistatic industrial floor tiles pvc wholesale
The floor uses the PVC resin as the main component,and utilizes the plastic particle interfaces to form the permanent conductive/anti-static network. In addition, they feature abrasion resistance corrosion resistance, long life, ageing resistance and low dust emission etc.
Application of LN-806 Safety antistatic industrial floor tiles pvc wholesale

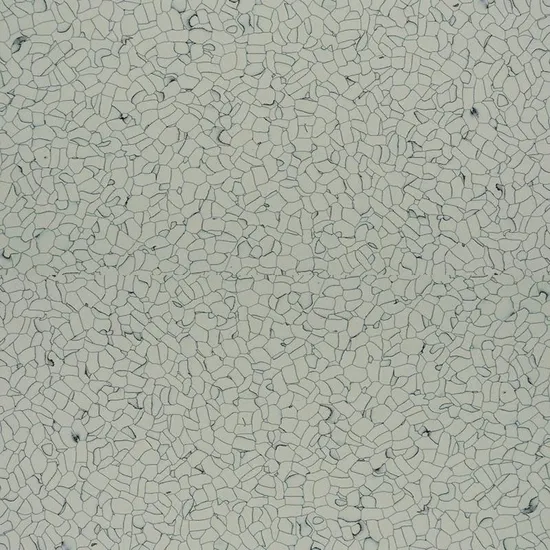

LN-806 esd floor main material is PVC resin, which made with special process. The conductive or anti-static network between PVC 2 particles make pvc floor anti-static or conductive permanently. Its surface seems like marble, which have very good decoration results. It is widely used for telecom, electronics industries, cell-type machine room,PC room and cleanroom workshops etc, which have purification and anti-static request.
Warranty
The products conductive properties have been tested before out of the factory ,in compliance with quality standards
The sales representatives can also provide technical guidance or support in the job site
Within 1 year from purchase ,no product defects in the materials and technology ,Compliance with LEENOL regulations for the installation and maintenance, LEENOL there is 10 year's guarantee (expect for human reasons and install by buyer selves) .Above guarantee replace any other assurances ,including, but not limited to,any guarantee implied in the business feasibility or special purposes.

MainTenance
Because LEENOL floor is impermeable, the surface dirty is easy to clean.
Avoid sharp scratches on the floor by hard object ,and maintain a smooth surface.
Clearing the floor by neutral detergent ,dry after washing,then coated with anti-static wax.
