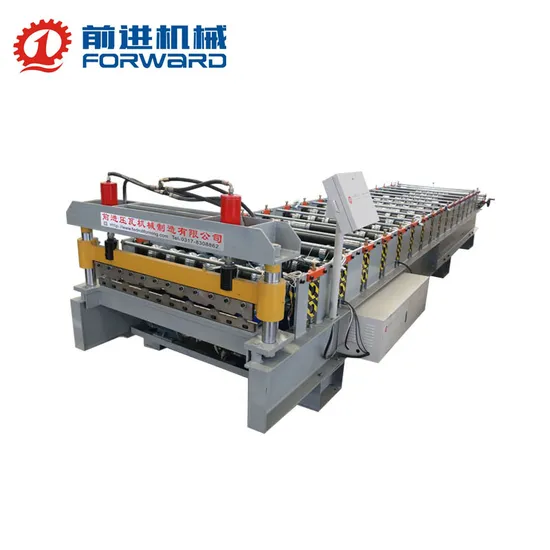

Ecuador 2021 High Quality Roof Wall Panel Roll Forming Machine Manufacturer Price
| US$10,000.00-15,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
Customized
Tile Type
Colored Steel
Certification
CE, ISO, SGS
Condition
New
Customized
Customized
Usage
Roof
Transmission Method
Electric
Suitable Material
PPGI/PPGL/Gi/Gl
Suitable Thickness
0.3-0.8mm
Profile Drawing
Customized
Voltage
as Customer′s Request
Speed
15-20m/Min
Delivery Time
40-60 Days
Loading Method
FCL
PLC
Delta
Touch Screen
Touch Win
Encoder
Omron
Inveter
Saj
Electric Components
Delixi or Chnt
Driving Motor
Lichao
Hydraulic Motor
Lichao
Transport Package
Export Package
Specification
20GP
Trademark
FWD
Origin
China
HS Code
8455221000
Production Capacity
30 Sets/Month
Product Description
Ecuador 2021 High Quality Roof Wall Panel Roll Forming Machine Manufacturer Price
Product Description
| General Information | Coil Material | PPGI/PPGL/GI/GL |
| Coil Thickness | 0.3~0.8MM | |
| Coil Width | 1000MM | |
| Speed | 15~20M/MIN | |
| Voltage | As Customer's Request | |
| Roll Forming Unit | Roller Station | 16 |
| Driving Motor | 5.5KW | |
| Shaft Diameter | 70mm Solid | |
| Shaft Material | 45# Hard Steel | |
| Roller Material | 45# Hard Steel | |
| Under Frame | 350H-Beam | |
| Sidewall Thickness | 16MM | |
| Transmission | 1 Inch Chain | |
| Feeding Device | 1 Set With Pre-cutter | |
| Cutting Unit | Cutting Type | Hydraulic Stop TO Cut |
| Hydraulic Pump Power | 3KW | |
| Cutting Die Material | Cr12Mov | |
| Hydraulic Oil | 46# Abrade Oil | |
| Control Unit | Control Method | PLC |
| Length Control | Encoder | |
| Operation | Touch Screen | |
| Language | Chinese & English | |
| Auxilliary Device | --- | 5T Manual Decoiler |
| --- | Exit Rack | |
*All parts can be customized as customer's request. | ||
Detailed Photos
Certifications
Packaging & Shipping
Company Profile
FAQ
Q1. What are the main key points for selecting right machines?
A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point. Good quality is for long-term business cooperation. Q2. Can you provide OEM service for roll forming machine? A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different. Q3. What's your standard trade terms ? A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for competitive ocean freight. Q4. How about the quality control? A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE,TUV/BV(******) Certificate. Q5. How about the after-sale service? A5: We provide 18 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely. Q6. If I am in Beijing,Shanghai or Guangzhou,how to visit your company? A6: 1) Beiing South Statioin to Cangzhou West Station (by fast train 1 hour). 2) Shanghai Hongqiao to Cangzhou West (4.5 hours) 3) Guangzhou Airport to Tianjin ,then Tianjin to Cangzhou West
