Automatic Power Distribution Box Production Line for 150-400mm Depth Electric Enclosure Forming and Bending Process

Product Description

Product Description
Panel Width Changeable Electrical Box Production Line
Electric box/exposed box/concealed box/circuit box/junction box/fiber optic box/lighting box/Melan box/household box/meter box can be fully automated with a one-time production machine, greatly saving labor
The equipment can form a box with four sides in one go, which mainly includes: feeding device, leveling device, servo feeding device, stamping device, forming host, cutting device, automatic bending device, electrical control system, etc; The equipment has a high degree of automation, which can be completed by one person, saving labor and improving efficiency; One hour can produce 100 boxes, and the size of the boxes can be adjusted, allowing for the simultaneous production of large boxes ranging from 600 to one meter. Switch between length, width, and thickness. Boss in need, please contact us.
1. Efficient productionThe production line of charging pile protection box adopts advanced automation equipment and intelligent control system, which can achieve efficient production process. Through automated operations, production lines can improve production efficiency, reduce labor costs, and reduce errors and quality issues caused by human error.The mechanical arms, conveyor belts and other equipment in the production line can complete assembly, welding, spraying and other processes at high speed and stability, greatly reducing the production cycle and improving production capacity.In addition, the production line can also achieve rapid switching and adjustment of products, meeting the production needs of different models and specifications of charging station protection boxes, improving the flexibility and diversity of production.
2. High quality products
The production line of charging pile protection boxes adopts high-quality raw materials and advanced production processes, ensuring the quality and reliability of the products. The automated testing equipment and quality control system in the production line can monitor every aspect of the product in real time, and promptly identify and eliminate potential problems, ensuring product consistency and stability.
The production line is also equipped with professional personnel for quality monitoring and control, strictly managing and inspecting each production process to ensure that the quality of products meets or exceeds industry standards.
At the same time, the intelligent control system in the production line can automatically adjust various production parameters, optimize production processes, and improve the technological level and appearance quality of products.
KEFA electrical panel box roll forming machine production line with various size for making industry electrical enclosure. Automatic width adjustable, length adjustable, depth adjustable, door hinge hole, cable hole numbers can be easy setting by PLC.
Product Description
Panel Width Changeable Electrical Box Roll Forming Machine Production Line
Product specifications: height adjustable 300-1200mm, depth adjustable 150-350mm.
Electrical enclosure Production machine technical parameters
Product Parameters
Electrical distribution board roll forming machine production line process
Uncoiler→ Straightening→Servo feeder→Hydraulic device→ Guide device → Roll forming machine →Bending device

Item		Technology parameter
Material	Material	Cold-roll strip,galvanized steel strip
	Thickness	1.0-1.5mm(base on 1.5mm design, when T.1mm effect alittle not good as1.5mm)
	Coil lnner	Diameter 360-510mm
process	Form Speed	0-13m/min
	Length	Not limit
Quality	Length Precision	L≤1000mm:±0.5mm
	Straight, Deflection	L≤1000mm,Bend no more than 1mm;Deflection no more than 2mm
	Forming size	As per design

Distribution box production line technology explaination
This production line is equipment for production of distribution boxes. The strip coil to be processed is manually placed on the uncoiler, and then corrected and tensioned. After leveling, it enters the hydraulic pre-punching and punching notch, and is sent to the forming machine by the guide device to form. Under the frictional damping action of the forming roller and pressure roller, after entering the bending part at a linear speed of 0-13m, the box is cut and bent as required, and then manually packed away. This production line produces 2-3 enclosures per minute. the production box quantity speed according to different product specifications.
This hydraulic punch for cable hole and gap hole punch process

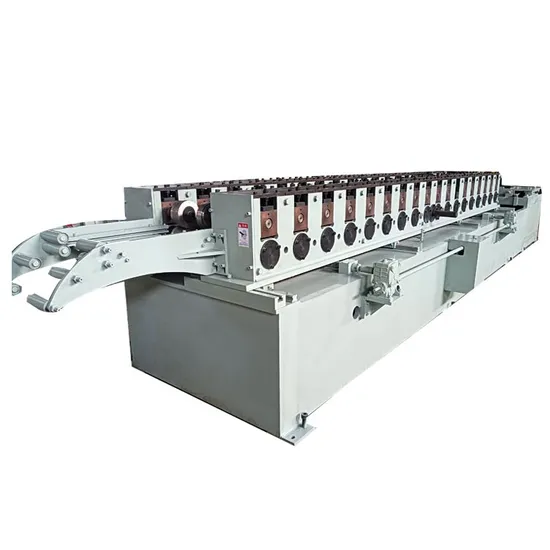

Forming main frame: The mainframe base of this production line is welded with 100 * 100 * 3MM square tubes, the frame is integrated with a fixed archway, the side plates are made of 25mm steel plates, and the supporting parts are made of high-quality Taiwan bearings. Twisting up and down adjustment, the host has good rigidity and stable structure.
B: Roller (roller staiton): 16 sets of roller forming, high-quality Gr12 mold steel, HRC up to 58 ~ 60º are processed by precision CNC machine tools, precision is 6 ~ 7, surface roughness is above 0.8, no scratches on the surface.
Detailed Photos
Our Advantages

Company Profile
FAQ
1.How to maintain the machine?
Answer: add mechanical lubrication equipment to chain, bearing and cutting slide every month. Add mechanical lubrication to the case every half a year.
2. Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.
3.How many workers to operate the machine?
A:Only 1-2 workers.
4. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan Station to Cangzhou West Station(1 hour), then we can pick you up .
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou West station(4.5 hours), then we can pick you up.
5. What can you do if the machine broken?
Our machine's warranty period is 12months,if the broken parts can't be repaired,we can send the new parts to replace the broken parts for free,but you need pay the express cost yourself.if over warranty period,we can for to solve the problems via negotiation,and we supply the technical support for the whole life of the equipment.
6.How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) Please visit company and test machine if convenient.
