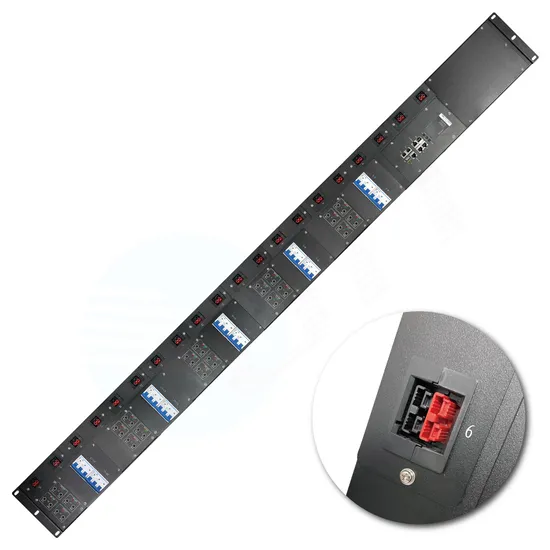

High-Voltage 380-480V PDU with LCD Metered Power Distribution Unit From Alice Orient

Product Description

Product Description
Orient PDUs are professionally certified, competitive and factory-tested products (1) Silk screen printing is neat, clear, no raw edge (2) Automatically realize three-phase balance after power-on
(3) A single outlet can be independently disassembled for maintenance
(4) The whole PDU has a heat dissipation hole and is equipped with a heat dissipation fan
to solve the problem of excessive ambient temperature in hot summer.
(5) The circuit breaker is equipped with a hardware bracket, which is not easy to loosen for a long time and will not sink (6) The junction box is easy to connect. The logo is clear and easy to understand.
(7) A dust-proof cover can be used to cover the unused PDU ports
(8) Internal wiring with digital identification, fine workmanship details
(9) The surface treatment passes the hundred-cell test, and the paint will not fall off Detailed Photos
RPDU Smart Meter Earth leakage control panel
Circuit breaker SA2-30 Socket/customized
Product Parameters
Please contact : IG:Alice Yang

Place of Origin	Guangdong China
Brand Name	OIT
Model NO.	RPDU-280A-(SA2-30)20-SP-3P
Voltage	380~480V
Total Current	MAX 200 A
Socket Standard	SA2
Input Connector	100Ax5wires(or junction box,input breaker optional,price difference,)
Frequency	50/60Hz
Total Output Power	Max 120KW
Breaker	4pcs / 3P 40A Breaker
Packaging Size	200X26X20 cm
Net weight	40 KG
Wire specification	UL certification , with flame retardant function
Certificate	ETL RoHS
Max Output Power forEach Outlet	Under 415V,Three-Phase Max 5989W per OutletSingle-Phase Max 5989W per Outlet

Function Module Selection

Function Module Selection	1.1PMiniCircuit Breaker 2.2p MiniCircuit Breaker 3.RCCB 4.Current and Voltage display 5.SPD 6.Multi-FuctionSPD 7.Switch overload protection 8.Power Switch 9.Overload Protector 10.Power Indicator Light
Socket selection	German Standard(DIN49440); British Standard(DIN49440)/(45°/135°BS1363); Australian Standard(AS NZS3112); IEC60320 C13/C19; U.S.Standard(NEMA5-15R); British Standard (BS1363); Chinese Standard; Chinese Standard(GB1002); Universal GB2099.3
Plug selection	Australian Standard(AS NZS3112); German Standard(DIN49440); Chinese Standard(GB100216A)/(GB100210A); British Standard(BS1363); U.S.Standard(NEMA5-15R); IEC C14/C13/C19/C20 FEMALE PLUG 32A-5/32A-3/16A-3 MALE PLUG 32A-5/32A-3/16A-3

Company Profile
Dongguan Orient Tech., Ltd., established in 2011, is a leading manufacturer specializing in a wide range of innovative products, including Power Distribution Units (PDUs), switchgear, immersion cooling systems, smart power solutions, and more. With a 10,500-square-meter facility and a dedicated team of 300+ professionals, we focus on delivering high-quality products for industries like data centers, education, and smart home applications.
Our main product offerings include Power Distribution Units (PDUs), 19" cabinets, and OEM/ODM services. These PDUs are designed for efficient power management in Internet Data Centers (IDCs) and industrial applications. We also provide switchgear solutions, external battery/power cabinets, and immersion cooling systems for high-density computing and 5G applications.
For educational and public spaces, we offer charging cabinets and carts for laptops, tablets, and phones, ideal for schools and libraries. Our smart sockets, plugs, and power strips feature advanced functionalities like fast charging, remote/voice control, Wi-Fi, energy-saving, and timers.
In the smart lighting sector, we provide smart colorful bulbs and light strips, allowing users to customize lighting for any environment. We also manufacture durable power cords for various applications.
ISO 9001:2015 certified, we ensure all products meet international standards like CE, RoHS, UL, VDE, and ETL. Our rigorous testing process guarantees safety, functionality, and long-lasting performance. At Orient Tech, we are committed to providing innovative solutions that meet the evolving needs of our global customers.
Packaging & Shipping

Selling Units:	Single item
Single package size:	1780X64X100 cm
Single gross weight:	15.000 kg
Customization:	OEM/ODM
Lead time (days)	1 - 5 pcs 8days 6 - 50 pcs 20days 51 - 100 pcs 23days above 100 pcs to be negociated
