1000tons/2000t Hydraulic Deep Drawing Press (TT-LM1000T-2000T)

Product Description

1000Tons/2000T Hydraulic Deep Drawing Press (TT-LM1000T-2000T)
Founded in Taiwan, European Technology Cooperation, Building Top Quality.
Characteristics:

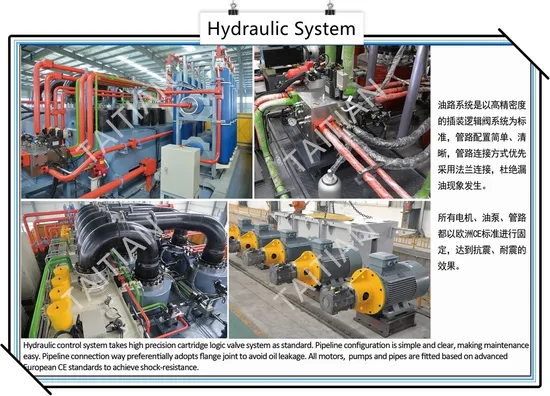

1. Such hydraulic deep drawing press is specially designed with good precision and excellent performance, for deep drawing and forming metal sheets. The capacity ranging from 100 Tons to 2000 Tons is available as per customers' demands. 2. Safe and reliable electric control system makes operation simple and easy.3. Safe and precise control system is easy to handle and works with high efficiency. 4. Systemized and logic hydraulic circuit is designed with leak-prevention, anti-vibration and easy-maintenance.5. Each hydraulic press is manufactured under strict quality control management to assure the best performance and accuracy.
Application:
Stamping and deep drawing of metal sheets. Options:
Digital Control, Common Control;
Slow Speed, Medium Speed, Fast Speed;
Water Cooler, Air Cooler, Forced Chiller;
Die Change/Die Clamp Device;
Interval Lubrication, Cycle Lubrication;
Upper Ejector, Bottom Ejector;
Right/Left Stamping Damper Cylinders.
Technical specifications:

Technical Specifications
Model	Capacity (T)	Table Size(FB× LR) (mm)	Daylight(B) (mm)	Stroke (C) (mm)		Approach Speed (mm/sec)	Pressing Speed (mm/sec)	Return Speed (mm/sec)	Cushion Capacity (T)	Cushion Stroke (mm)	Motor (HP)
TT-LM100	100	800× 1000	650	500		300	9/25	220	30	200	15× 6
TT-LM150	150	900× 1200	800	600		300	10/30	235	60	250	20× 6
TT-LM200	200	1000× 1200	950	700		300	10/25	250	70	250	25× 6
TT-LM250	250	1000× 1500	950	700		300	7.5/25	250	100	300	30× 6
TT-LM300	300	1200× 1500	1100	800		300	7/20	250	100	300	30× 6
TT-LM400	400	1200× 1800	1100	800		300	8/20	250	150	350	40× 6
TT-LM500	500	1200× 1800	1100	800		300	8/20	250	150	350	50× 4
TT-LM600	600	1500× 2000	1250	900		300	8/20	250	200	400
TT-LM800	800	2000× 2500	1500	1000		300	7/16	240	250	400	75× 4
TT-LM1000	1000	2500× 3000	1700	1200		300	7/14	250	350	500	100× 4
TT-LM1500	1500	2500× 3200	2000	1500		300	6/12	240	450	600	75× 4/2sets
TT-LM2000	2000	2600× 3500	2100	1500		300	6/12	240	600	800	100× 4/2sets
