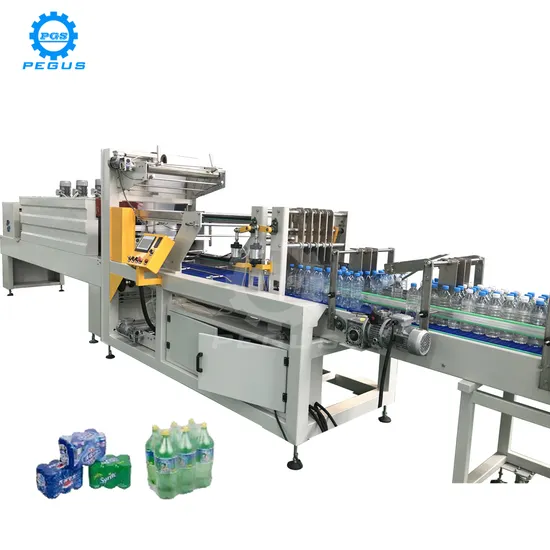

High Speed Linear Type PE Film Shrink Wrapping Machine Automatic Bottle Packing Machine Cans Packaging Machine
| US$1,000.00-20,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZMBJ1
Application
Food, Commodity, Machinery & Hardware, Textile, Alcohol, Chemical, Apparel, Medical
Packaging
Film
Automatic Grade
Automatic
Driven Type
Electric
Manner of Packing
Four Side Seal Type
Adjust Speed
Frequency Conversion Speed Regulation
Type
PE Shrink Film Machine
Heating Mode
Quartz Heating Tube
Packaging Material
Film
Controller
PLC Touch Screen
Quality
Top Quality
Voltage
380V, or Customerized
Film
PE POF
Transport Package
Wooden Case
Specification
14000mm*1200mm*2100mm
Trademark
PEGUS
Origin
China
Production Capacity
15sets/Month
Packaging & Delivery
Package Size
14000.00cm * 1100.00cm * 2100.00cm
Package Gross Weight
2000.000kg
Product Description
Product Descriptioncan match 28000 bottles filling production line
Main Technical parameters of the machine Facility model: ZMBJ-350A type
Facility overall size: :L14000×W1100×H2100mm
Facility overall size: Main equipment:3200×1100×2100mm
Shrink tunnel :4000×1000×1840mm
Conveyor:4800×1080×920mm
Wrappage max size:L420×W300×H350mm
shrinkage film material: PE
shrinkage film thickenss:0.08mm
thermo shrinkage tunnel max temperature: 160 - 260° adjust at will
max output per minute: 18-20 bag
facility power:30Kw
actual power:28Kw/h
pressure requirement: 380V/50-60HZ
facility weight: 2500
air pressure: 0.6-0.8mpa
working noise:≤65db
import bottle convey belt width: 620mm
fan:1.1Kw 3set 380V, 60W 6set 380V
Product instruction
frequency converter speed adjust,two segment convey device.
Bottle pushing, thermo sealing and cutting whole movement adopt to pneumatic fracture.
Proximity switch control film length
Touch screen, PLC system greatly increase facility movement reliability.
Three-wind recycle fan machine, ensure shrinkage tunnel inside even temperature.
Super big wind-volume cooling system, ensure quickly get into shape .
Anti-high temperature teflon convey belt, convey steadily, high-strength anti-abrasion.
Frequency limitless speed adjust convey belt frame.
convey belt height can make according client requirement, adjust range:±100mm
Wing stainless steel heating system, endurance
Meet with product instant stop requirement product-bearing rack device ensure production line consistency.
Product Parameters
| no | Name | specification | number | brand | |
| 1 | board production component | ||||
| 2 | Plant metal component | ||||
| 3 | pneumatic component | 1 | Taiwan Airtec | ||
| 4 | Electric controlling component and accessory | ||||
| Photoelectric switch | 1 | South Korea Autonics | |||
| Proximity switch | 4 | South Korea Autonics | |||
| PLC | 1 | SIEMENS | |||
| Touch screen | 1 | SIEMENS | |||
| Frequency converter | 2 | Taiwan Telta | |||
| AC contactor | 9 | France Schneider | |||
| Mid-relay | 12 | OMRON | |||
