Excavators of Construction Machinery Hydraulic Digger 3000kg Small Mini Excavator 3ton

Product Description

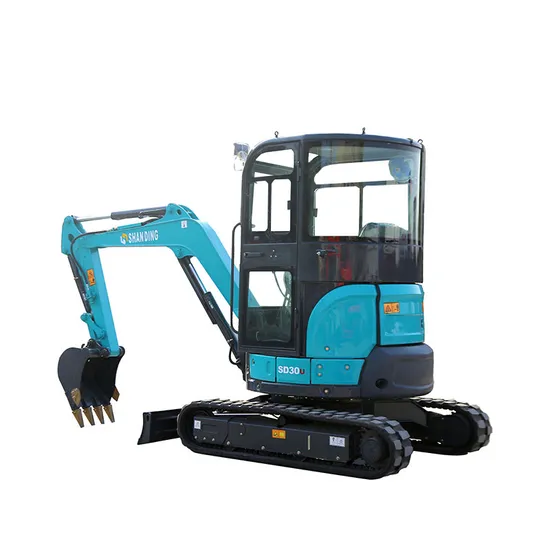

SD30U
Shandong Shanding Construction Machinery Co., Ltd. is a multinational company engaged in construction machinery;Shanding develops rapidly with advanced technology and modern management, and has CE and ISO certificates. Strict quality control system and high-quality production lines have developed high-quality products and fast delivery services. We have established a professional after-sales team that can serve our customers as soon as possible.Provide customized services, your exclusive purchase, personalized purchase, you are different from others!
Click Here >>>>> Contact Us To Get More Informations
Many more models can be choosed

Model	SD17B	SD25U(HOT)	SD30U(HOT)	SD40B
Total Weight	1600 kg	2500kg	2870kg	3650 kg
Rated Power	14.8KW	14.7KW	14.7kw	34w
Engine	laidong/yanmar	perKins403d-11	yanmar3Tnv88	changchai490
Bucket Capacity	0.06 m³	0.1 m³	0.075 m³	0.2 m³
Maximum digging distance	3600 mm	4150 mm	4375mm	4730mm
Max. Digging Depth	1950 mm	2550mm	2560mm	3100 mm
Max. Digging Height	3300 mm	2530 mm	3856mm	4500mm
Gradeability	35°	35°	35°	35°
Overall Width	860 mm	925mm	1540 mm	1700 mm

For More Information Please Contact Our Sales Consultant √
Looking Forward To Your Inquiry.
Features:
1. Excavators with compact dimensions can easily drive through narrow passages and doors.
2. Retractable undercarriage and dozer blade allow the excavators to be configured for excellent working stability and optimum performance.
3. Powerful engine and perfectly matched hydraulics provide efficient, economical and reliable performance for the toughest of jobs.
4. Bucket hoses are well protected within the boom and the cylinder is mounted above the structure.
5. The operator area is spacious and laid out to provide comfort and ease of operation.
6. Excellent engine provides excellent power with minimal fuel use for more productivity per tank.
We Pay More Attention To Details, Details Are Our Quality
1. It has excellent work efficiency and cost performance.
2. The standard bulldozer can level the site and backfill the earth to increase the stability of the machine.
3. Simple, small and flexible, easy to transport, can work in small sites, especially suitable for orchards, such as kiwi, vineyards, oranges, navel oranges, digging trenches, fertilizing, and weeding.
4. It has multiple functions of mining, crushing, removing hooks, drilling, and earthwork, and can quickly replace accessories, greatly improving the utilization rate of the machine.

Overall size
Minimum radius of Tail gyration	725mm
Min Ground Clearance	280mm
Platform Width	1290mm
Engine hood height	1350mm
Platform Height Above Ground	550mm
Transport Length	3750mm
Track center distance	1040mm
Bucket Width	500mm
Machine parameters
Weight	2700KG
Bucket Capacity	0.08m³
Rated Power	19.6KW
Rated Rotation Speed	2400r/min
Max Hydraulic Pressure	21.0[21.5] MPa
Max Grade	30°
Ground Pressure	24.6kpa
Max Walking Speed	4.6/2.8Km/h
Steering head angle	L:75/ R:50
Max. Traction	18.8(19.2)KN
Max Platform Rotation Speed	10rmp
Working range
Max. Digging Height	4000mm
Max. Dumping Height	2600mm
Max. Digging Depth	2280m
Max Digging Radius	4150mm
Maximum ground level digging distance	4000mm
Minimum radius of Tail gyration	725mm
Bulldozer Width	1290mm
Bulldozer Height	300mm
Machine configure
Model No.	SD30U
Engine Model	Original Yanmar 3TNV88
Main Pump	Original NAGHI Pump
Motor	Original NAGHI Motor
Max Bucket Digging Force	18.8KN
Drive Mode	Hydraulic Pilot
Valve	Nabtlsco Valve

Options:
1.In addition to the standard bucket, we also provide more auxiliary tools for you to choose from, including Hydraulic Breaker, Toothless Bucket from 50cm to 120cm, Auger. . . . . .
2.Color and style can be customize

Factory introduction:
Our company has more than just a rigorous working attitude! A more pleasant working environment. While the employees of shanding Machinery Company continue to serve customers, they are also very happy to have parties and dinners. Our team, like our factory, is very large and advocates the combination of work and rest.
We are a trustworthy company
Our company always pays attention to customer evaluation. The picture below is the unanimous praise of our customers worldwide.
Committed to creating high-quality services, becoming an enterprise trusted by customers, proud of employees, and respected by society.
Realize customer dreams and continue to create maximum value for customers
Shipping & Payment
For Transportation, We Have Three Methods: Sea, Air, And Land, And Support Multiple Payment And Multiple Transportation Methods. You Can Receive This Mini Excavator You Like At The Port, And Of Course You Can Also Receive The Mini Excavator At Your Doorstep. (The Cost Is Higher, Not Recommended), We Guarantee That We Will Not Charge Any Intermediate Fees And Extra Fees That Exceed The Shipping Cost, We Just Want You To Get This Favorite Mini Excavator Faster And More Preferentially!
We are an internationally guaranteed supplier with CE certificate
FAQ

1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 7-20 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs
