Roadway Boom Type Hydraulic Leveling Machine
| US$66,349.00-84,642.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
RWJP31, 32
Machining Process
Paving
Structure
Cylinder Type
Productivity
200m2/H
Certification
CE
Condition
New
Color
Yellow
Transport Package
Container
Trademark
ROADWAY
Origin
China
HS Code
84791021
Production Capacity
10sets/Month
Product Description
Boom Laser screed RWJP31The Laser Screed is used in large area concrete construction, such as the modern industrial workshop, the large market, storage, airport, the plaza, and so on. The Laser Screed can satisfy the construction requirements of large area and high planeness and levelness.
| Model | RWJP31 |
| Type | Boom type |
| Engine | |
| Model | Yanmar 4TNV98T-ZNLYS |
| Type | Diesel Engine, Liquid cooled, 4 stroke, 4 cylinder |
| Power | 57.3kW/2400rpm |
| Engine oil volume | 10.2L |
| Fuel consumption | 252g/kwh |
| Running device | |
| Driving | 4 Hydraulic drive motor |
| Wheel | Antiskid tyre |
| Steering | Front Wheel/ 4-Wheel/ Crab-shaped turn |
| Outrigger | 4 legs, Self-leveling |
| Working Speed | 0-8km/min |
| Driving Speed | 22m²/min |
| Screed head | |
| Type | Self-leveling |
| Arm Length | 6000mm |
| Width | 3850mm |
| Paving type | With auger |
| Auger force | Hydraulic motor |
| Exciting force | 2000N |
| Vibration frequency | 60Hz |
| Swing Angle | ±45° |
| Screed head control | Ratio control |
| Height of screed head | 560mm |
| Control accuracy | ±1.5mm |
| Laser control system | |
| Control type | Microcomputer laser scan |
| Control effect | Flat, slope or double slope |
| Operation mode | |
| Chair position | Ride-on forward type |
| Forward and reverse | Handle control, stepless speed walking |
| Telescopic arm | Handle control, stepless speed |
| Steering | Hydraulic intelligent control |
| Cleaning system | |
| Power | Hydraulic motor |
| Theoretical flow | 20L/min |
| The Max pressure of inlet | 0.5Mpa |
| Rated pressure | 7MPa |
| Fuel tank volume | 150L |
| Hydraulic oil volume | 150L |
| Size and Weight | |
| Outline dimension | 5200×4350×3700mm |
| Weight | 8200kg |

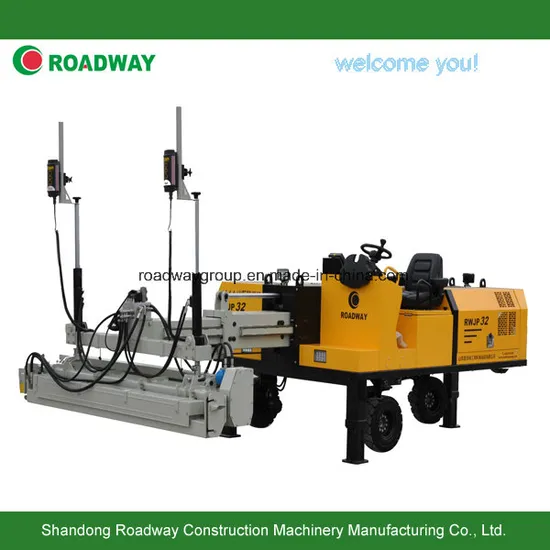

| Model | RWJP32 |
| Type | Boom type |
| Engine | |
| Model | HONDA GX630 |
| Type | Gasoline engine, Air cooled, 4 stroke, 4 cylinder |
| Power | 20hp/3600rpm |
| Engine oil volume | 1.8L |
| Fuel consumption | 313g/kwh |
| Running device | |
| Driving | 3 Hydraulic drive motor |
| Wheel | Antiskid tyre |
| Steering | Front Wheel/ 3-Wheel/ Crab-shaped turn |
| Outrigger | 4 legs, Self-leveling |
| Working Speed | 16m2/min |
| Driving Speed | 0-6km/h |
| Screed head | |
| Type | Self-leveling |
| Arm Length | 4000mm |
| Width | 2500mm |
| Paving type | With auger |
| Auger force | Hydraulic motor |
| Exciting force | 500N |
| Vibration frequency | 50Hz |
| Screed head control | Ratio control |
| Height of screed head | 560mm |
| Control accuracy | ±1.5mm |
| Laser control system | |
| Control type | Microcomputer laser scan |
| Control effect | Flat, slope or double slope |
| Operation mode | |
| Chair position | Ride-on forward type |
| Forward and reverse | Hand control, stepless speed walking |
| Telescopic arm | Hydraulic intelligent control |
| Steering | Hydraulic control |
| Cleaning system | |
| Power | Hydraulic motor |
| Theoretical flow | 20L/min |
| The Max pressure of inlet | 0.5Mpa |
| Rated pressure | 7MPa |
| Fuel Volume | 60L |
| Hydraulic oil volume | 60L |
| Size and Weight | |
| Outside size(Working) | 3800×2800×1700mm |
| Weight | 2250kg |
