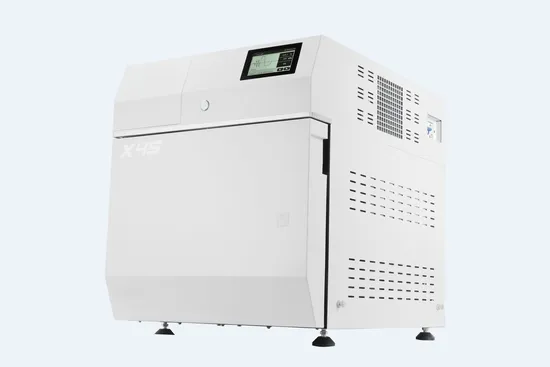

45L Class B Tabletop Steam Autoclave for Sterilization with Touch Screen

Product Description

YESON autocalve X series 45L,Class B
A sterilizer designed for dental implant surgery.
FEATURES:
1) AI (Artificial Intelligence Drying)
The drying time will be adjusted automatically according to the water vapor content in the chamber.
Ensure the drying is efficient and work well.
2) 60cm installed dimensions
Users don't have to customize their cabinets or workbench, make the installation is easy.
3) Sterilization cycle runs fast
The fastest process (incl vacuum, drying) only costs 32 minutes.
4) 4 Major Medical Traceable Systems
a) Process Parameter printing
The data of the sterilization process can be printed completely.
b) Label printing
The traceable data of the sterilization package can be printed in real time.
c) SD Card
The data of the sterilization process can be saved in SD card for check and trace at any time.
d) Internal Memory
The data of the latest 20 sterilization process are saved in the internal memory for check and trace at any time.
6) Clean water tank and waste water tank are separated
7) Fill and drain automatically (optional)
8) Less water consumption.
9) Low noise
10) One-key power Switch
11) Automatic lock system
TECHNICAL DATA

Power supply	220V/50Hz/2900W
Clean water tank	10L
Waste water tank	7L
Chamber size	ø319X617mm
Capacity	45L
Productsize(Width*Depth*Height)	576X726 X646mm
Net weight	133Kg
Gross weight	148Kg
Installation size (Min)	600mm
Material of chamber	Stainless steel 304
Lock system of door	Automatic
Drying system	AI/Preset/Custom

Parameters of preset programs

Program	Sterilization temperature(ºC))	Temperature range (ºC)	Pressure range(kPa)	Holding time(Min)	Pre-vacuum times		Drying time(Min)		Remarks
134ºC universal	134	134~138	204~242	4	3	15		Preset
134ºC universal quick	134	134~138	204~242	4	3	7		Preset
121ºC universal	121	121~125	112~134	20	3	15		Preset
B-D/Helix test	134	134~138	204~242	3.5	3	7		Test program
Vacuum test	Vacuum to -80kPa,holding 15min							Test program
134ºC Prion	134	134	204~242	19	3		15		Preset

ABOUT YESON NINGBO HAISHU YESON MEDICAL DEVICE CO., LTD is a high-tech company, who is engaged in the R&D, production and marketing of products of medical sterilization chain since 2005. We are aiming at being a world-class sterilization solutions supplier and committed to creating efficient disinfection space for users.
2005 66 86 YESON FOUNDED PATENTS CERTIFICATES
Our products include tabletop autoclaves from 3L to 45L, handpiece lubricating machine, fast-cutting pouch sealer, ultrasonic cleaner, etc.Relying on our strong technology , we update and develop new products every year. Our products are well sold over 80 countries all around the world till now. In 2021, our steam autoclave sale volume ranked No 1 in Chinese autoclave industry.
We have ISO13485 and CE certificates approved. In September 2021, Yeson is the main drafter,the "ZHEJIANG MADE" institution standard <Micro Tabletop Type B Steam Sterilizers> was published officially. In June 2022, the first in the industry, we acquired the "ZHEJIANG MADE" certificate.
