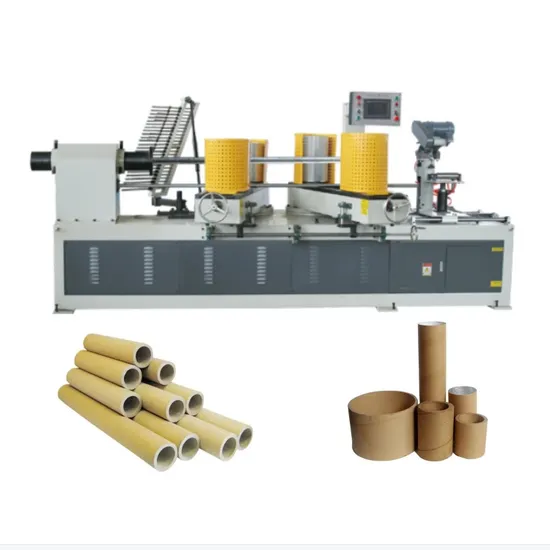

Automatic High Speed Machine Production Paper Tubes
Basic Info.
Model NO.
QH
Paper Core Usage
Paintings Packaging
Tube Machine Type
Bending Machine
Gumming Type
Double Side
Layers of Roll Paper
3-25
Reelpipe Speed
0-25m/Min
Wall Thickness of Paper Tube
1-15mm
Certification
CE
Condition
New
After-sales Service
Service Machinery Overseas
Name
Paper Tube Making Machine
Key
Paper Tube
Voltage
220V/380V/440V
Speed
0-25m/Min
Transport Package
Film Packaging
Specification
200
Trademark
QH pack
Origin
Cangzhou City, Hebei Province
HS Code
84393000
Product Description
Packaging & ShippingProduct Description
Main specifications and equipment | |||
| Paper tube machine model | QHJG-200type four noses CNC paper tube machine | ||
| Technical parameter | Control system | ||
| Roll tube paper layer | 3-25 layers | PLC controller | Professional products |
| Paper tube diameter | 30-200 (mm) | HMI | Professional products |
| Paper tube thickness | 1-15 (mm) | Program Version | CX-P 9.04 |
| Tube speed | 0-25 (m / min) | Inverter | An Rui Ji products |
| Fixed-length mode | CNC (light control) | Intermediate relay / contactor | Chint |
| Winding machine head | No resistance four machine head | Signal element (proximity switch, etc.) | Times Funing brand / Shanghai workers |
| Cutting method | Single round knife automatic tracking cutting | Cylinder components | suopai/tian ao brand |
| Core mold fixed way | Flange plus tight | Synchronous control | X-axis servo ball screw |
| Glue way | Double-sided adhesive | Synchronous tracking tube cutting system | Orion servo motor |
| control method | Frequency | Cutter lift | suopai/tian ao aerodynamic |
| Input voltage | 380V / 220V | Emergency stop button | Jiangyin Yangtze River brand |
| Number of operators | 1-3 people | Configuration device | |
| Size (mm) | Drop tube rack | automatic | |
| Host Size: L * W * H | 2900mm*1700mm*1900mm | Belt adjustment | Manual |
| Land area: length * width | 20000mm*9000mm | For glue | Automatic stainless steel heating plastic tank |
| Hub diameter | 294mm | Tape for lubrication oil | Automatic lubrication of stainless steel basin |
| Hub height | 360mm430mm | Tension adjustment | Mechanical adjustment |
| Minimum track | 1000mm | Paper holder type | Right-angle fixed lifting on the paper holder |
| The maximum track | 1250mm | Roll mandrel | 1 |
| total weight | 4500kg | Roll tube belt | 1 article |
| Drive system | Applications | Have | |
| monitor rate | 15kw Shanghai strong speed | Bottom, surface paper device | Stainless steel paper holder, paper cone |
| Host speed | 1400r / min | Under the rack | Stainless steel plate |
| The maximum wheel speed | 62r / min | Host | Stainless steel countertops |
| Hub output torque | 8500NM | Paper guide | stainless steel pipe |
| Reducer models | WPO155 Hangzhou Xiaoshan | ||
| Transmission | Automotive gearbox | ||
| Linear Guides | Taiwan silver products | ||
| Ball screw | Taiwan TBI | ||
| Drive chain model | 12A × 2 | ||
| Wheel drive | four-wheel drive | ||
| Cutter motor | 0.4kw gear motor, Shanghai Ott | ||
| Bearing | Universal bearings | ||
| Note: due to the continuous update of the product technology, all data to the product sample! | |||
