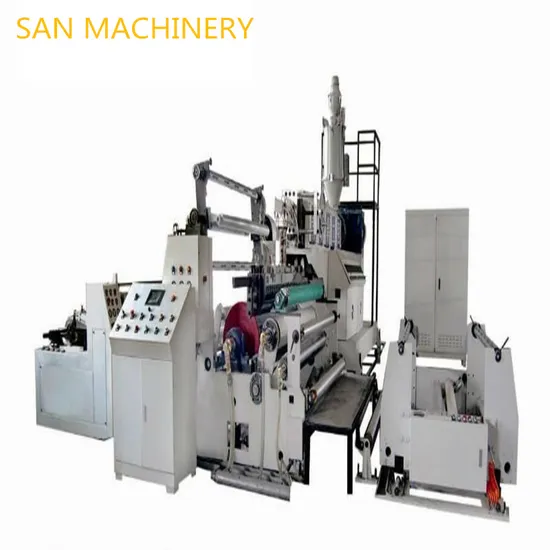

PE Coating and Laminating Machine with Single Extruder

Product Description

SECTION ONE -PRODUCT DESCRIPTION:
High-Speed PE Coating Machine
This production line adopts polyethylene (PE) material extrusion machine for film coating. The PE material is absorbed to material canister by automatic drying and material absorbing device. Then the material would be melted, after filter, the melted PE is distributed evenly onto the T shape mould. And finally it can be coated onto base material evenly.
Features:
★ This is the advance model of PE coating machine. It has multi-extrusion mould, multi- working station, The coating and compouding can be done by one step.
★ Our machine are using Siemens PLC for easy setting and operation, all parameter can be set by the touch screen.
How the Machine Works? ★ SYLS Series PE Coating and Laminating Machine with Single Extruder
https://saninternational.en.made-in-china.com ★ SEC Series PE Coating Machine with Single Extruder
https://saninternational.en.made-in-china.com ★ SEC Series PE Coating and Laminating Machine with 3 Extruders
https://saninternational.en.made-in-china.com
We are using:
★ ABB Inverter,
★ YASKAWA G7 Inverter
★ SMC Air Cylindar
★ NORGREN Valve
★ OMRON Temperature Controller
★ Hi-Tech Touch Screen
Technical Parameters

Model Items	SYLS-1100
Length of mould lip	1200mm
Width of finished product	500~1150mm
Speed	150m/min
Thickness of PE film	0.01mm~0.08mm
L/D ratio for screw	33:1
Max. diameter of roll rewinding & unwinding	1200mm
Max extrusion quantity	120kg/h
Air consumption	0.8m3/min
Water consumption	0.3m3/min
Power	380V 50Hz, 97kw
Overall size(mm) L×W×H	7,500×7,800×3,200
Weight (kg)	14,000

THE PHOTOS FOR OUR EXHIBITIONS:
