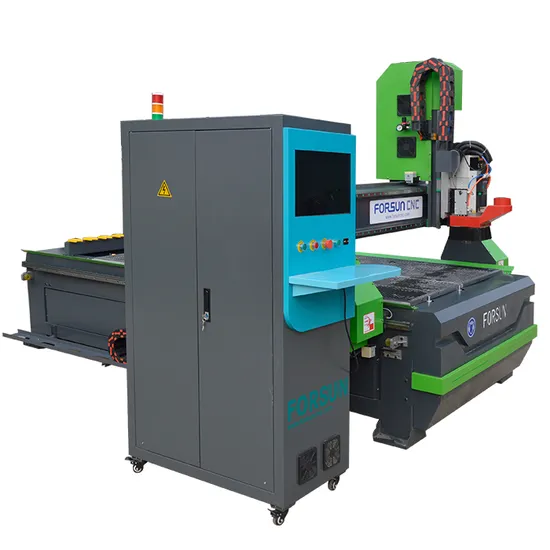

2024 Hot Sale Atc 1325 1530 Heavy Duty Furniture Working CNC Router Machine CNC Router Carving Machine

Product Description

2024 Hot sale ATC 1325 1530 heavy duty furniture working cnc router machine CNC router carving machine
Product Description
What's the feature of our ATC CNC Router Machine?
Ø Effective working area: 1300*2500mm*200mm
Ø 9kw Italy HSD ATC air cooling spindle
Ø 11kw Taiwan Delta inverter
Ø German SIEMENS 808D control system
Ø German SIEMENS servo motor
Ø Linear 10 PCS Tool Magazine
Ø Vacuum & T-slot working table
Ø Taiwan TBI Ball Screw,Helical Rack and Pinion

Detailed Photos
Product Parameters
Technical data of ATC CNC Router

Technical Data of our cnc router machine
NO	Description	Parameter
1	Positioning Accuracy	±0.03/300mm
2	Max. Rapid Travel Rate	80000mm/min
3	Max. Working Speed	45000mm/min
4	Spindle Speed	0-24000RPM
5	Command Language	G Code
6	Flash Memory	512M
7	Collet	ER32
8	X,Y Resolution	<0.03mm
9	Running Environment Temperature	0 - 45 Centigrade
10	Relative Humidity	30% - 75%
11	Packing Size	3520*2280*2100mm
12	N.W.	1500KG
13	G.W.	1700KG

What's the advantage of our ATC CNC Router Machine?

Spindle	Italy HSD Air Cooling Spindle Top brand of the world. Spindle speed: 0-24000RPM.
Inverter	Taiwan Delta Inverter It can output 150% of rated torque at zero speed, and it can have "point to point" and relative distance control functions for position control.
Motor	German SIEMENS servo motor high working efficiency and stable running promised
Control system	SIEMENS 808D Controller Thanks to its panel based design philosophy, and IP65's protection level, the SINUMERIK 808 series is ideal for harsh environments.
Working table	T-slot and Vacuum Table Rigid vacuum table with grids and T-slots maximizes the vacuum hold-down and also enables you to clamp the workpiece in place.
Tool magazine	Linear 10 PCS Tool Magazine The use of an 10 Tool Rotary speeds up tool changes assuring faster times increasing production throughput.

Installation Instructions

What's the benefit of our ATC CNC Router Machine?
1) Mold: wood,wax, wood, gypsum,foams,wax
2) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
3) The wood products: voice box, game cabinets, computer tables, sewing machines table,instruments.
4) Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
5) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.


Packaging & Shipping
What is the package of FORSUN ATC CNC Router Machine?
After Sales Service
What's our service for FORSUN CNC router Machine ?
Guarantee:
1.5 years for the whole machine. Within 18 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 18 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.
Technical support:
1. Technical support by phone, email, WhatsApp, Wechat or Skype around the clock
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas
After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.
Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service
Customer visit

Customer visit of Fiber Laser Cutting Machine for flexible dies
FAQ
1) This is the first time I use this kind of machine, is it easy operate?
There are guide video that show how to use machine and english instruction book send to you with machine.
If there is still have any question, we will provide free professinal guide for you until you could use machine well.
2) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem.
3) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
