Factory Price Binoculars Desktop Educational with Binocular Laboratory Trinocular Stereo 4K Microscope Camera

Factory Price Binoculars Desktop Educational with Binocular Laboratory Trinocular Stereo 4K Microscope Camera

US$680.00-1,120.00 1 Piece (MOQ)

Basic Info.

Model NO.
MCL2004
Number of Cylinder
Binoculars
Mobility
Desktop
Stereoscopic Effect
with Camera
Kind of Light Source
LED Illumination
Shape
Rectangular Prism
Usage
Teaching, Hospital
Principle
Optics
Principle of Optics
Finite Optical System
Illumination
LED Lamp, Brightness Adjustable,Side LED Lights
Column
Round Column
Viewing Head
Seidentopf Binocular
Focusing System
Coaxial Coarse and Fine Adjustment,Fine Division 0
Condenser
Na1.25 Abbe Condenser
Transport Package
Carton
Specification
standard size
Trademark
MeCan
Origin
China (Mainland)
Production Capacity
1000 PCS/Month

Product Description

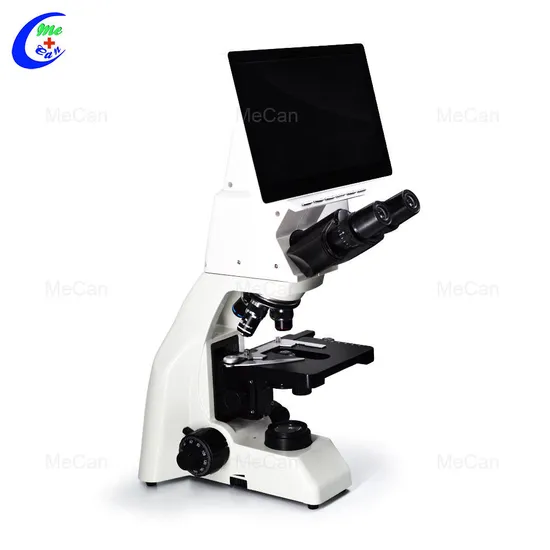

Product DescriptionMedical USB 4K Trinocular Blood Biological Digital Microscope with Screen
Model:MCL-20041.Full HD Display: 10.6" HD LCD screen;
2.Full HD Camera: The highest 12M images ,1080P/60fps HD video with memory card(Max:32G) to store inspection results anytime ,no need to connect to PC.;
3.HDMI HD Output, freely connect to big monitor to anaysis 4.Continuing Zoom Range:0.7X~4.5X, Total magnifications:14X~100X.
5.Wireless Connection:Download pictures or videos from the APP to share or process later data;
6.WDR: Improve video clarity in dark;
7.Worktable Size: 380*250*20mm ,suitable for all kinds of inspection and operation tasks;
8.Multiple Measuring Functions: Crosshair, reticle, degree scale, etc.(Customizable) Product Parameters
Model Parameter
LCD ScreenSize10.6 inch IPS 10.6 Inches IPS
Resolution1366*768
Optical ParameterOptical SystemFinite Optical System
Infinite Optical System
Achromatic Objective4× N.A=0.1 WD=18
10× N.A=0.25 WD=7
40× N.A=0.65 WD=0.53
100× N.A=1.25 WD=0.13
Infinite Semi-Plan Achromatic Objective4× N.A=0.1 WD=16.8
10× N.A=0.25 WD=5.8
40× N.A=0.65 WD=0.43
100× N.A=1.25 WD=0.13
Viewing HeadSeidentopf Binocular Viewing Head Inclined at 30°,Interpupillary 47-78mm
EyepieceWF10×/18
WF10×/20
Focusing SystemCoaxial Coarse and Fine Adjustment,Fine Division 0.002mm,Moving Range 25mm
NosepieceBackward Quadruple Nosepiece
StageDouble Layers Mechanical Stage 140×140mm,Moving Range75×50mm
Rackless double Layers Mechanical Stage 150×139mm,Moving Range75×52mm
CondenserNA1.25 Abbe Condenser
IlluminationS-LED Illumination
Digital parametersPhoto Resolution4592*3072
Camera Pixel1200w
Video Resolution1080p/60fps
Data OutputHDMI
Wireless ConnectionYes(optional)
WDRYes
FunctionAutomatic exposure, exposure offset, automatic white balance, multiple measurement methods, video recording, local storage
(maximum memory 32G)
StorageSD Card
Measurement & PositionYes(Customizable)
External InterfaceProjector/Monitor
The Platform Parameters of Our Lab Microscope:
IlluminationLED Lamp, Brightness Adjustable,Side LED lights
Focus Range60mm
Operating Distance88mm
ColumnRound column
Bracket Size380mm*250mm*20mm
AccessorySD Card
Supply VoltageDC12V
