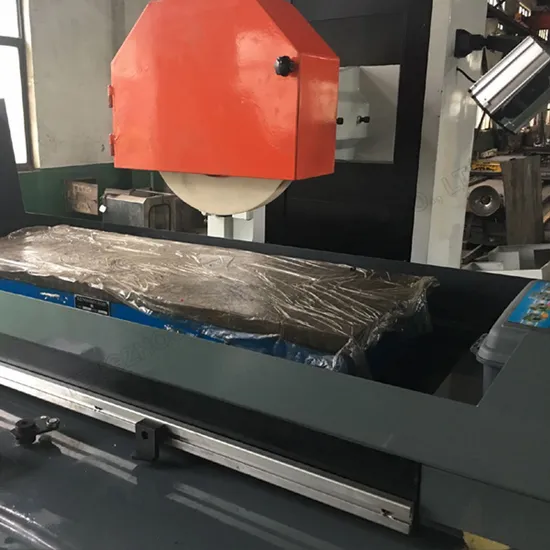

Hydraulic Automatic Surface Grinder Machine My4080
| US$10,000.00-12,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MY4080
Type
Surface Grinding Machine
Processing Object
Metel
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Manual
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Table Size
406X1020mm
Wheel Size
350X40X127mm
Auto Feed
0.1-8mm
Cross Travel
450mm
Longitudinal Travel
1130mm
Transport Package
Plywood Case
Specification
3490kgs
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
8460190000
Production Capacity
10 PCS/Month
Product Description
DESCRIPTION OF GOODSLongitudinal movement is controlled by hydraulic system
Transverse movement is controlled by electric motor
Up and down movement is controlled by lift motor
Adopt the exceeding precise P4 level Harbin bearing
Adopting Taiwan TOYOTA pump 3K25
| STANDARD ACCESSORIES AS FOLLOWS |
| Machine stand pad |
| foot-screw |
| Water tank |
| Electromagnetic chuck |
| Balancing stand |
| Work lamp |
| Inner hexagon spanner |
| Tools and tool box |
| Balancing shaft |
| Wheel dresser |
| Diamond pen |
| Wheel and wheel chuck |
| drainage snake tube |
| flushing bag wire tube |
| MODEL | MY4080 | ||||
| Working table | Table Size (L× W) | mm | 800x400 | ||
| Max movement of working table(L× W) | mm | 900x480 | |||
| T-Slot(number×width) | mm | 3×14 | |||
| Max weight of workpiece | kg | 210kgs | |||
| Grinding wheel | Max distance from spindle center to table surface | mm | 650 | ||
| Wheel Size(Outer diameter×width×Inner diameter) | mm | φ355×40×Φ127 | |||
| Wheel speed | 60HZ | r/min | 1680 | ||
| Feed amount | Longitudinal speed of working table | m/min | 3-25 | ||
| Cross feed(front and rear) on handwheel | Continuously(Variable Transmission) | mm/min | 600 | ||
| Intermittently(Variable Transmission) | mm/times | 0-8 | |||
| Per revolution | mm | 5.0 | |||
| Per graduation | mm | 0.02 | |||
| Vertical(up and down) feed on handwheel | Per revolution | mm | 0.8(1.0) | ||
| Per graduation | mm | 0.01 | |||
| Speed of vertical feed | mm/min | 500 | |||
| Motor power | Spindle motor | Kw | 4 | ||
| Coolant pump motor | W | 125 | |||
| Lifting motor | W | 180 | |||
| Hydraulic motor | kw | 2.2*6 | |||
| Working precision | The parallelism of working surface to base level | mm | 300:0.005 | ||
| Surface roughness | μm | Ra0.4 | |||
| Overall dimension(L×W×H) | mm | 2560x1990x1990 | |||
| weight | kgs | 2750/3150 | |||
