Air Permeability Belt Transport No Move Conveyor Air Slide Fabric

Product Description

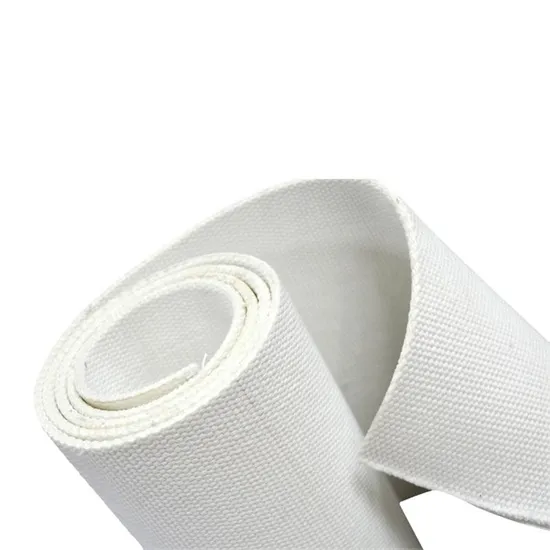

Air Slide Woven Fabric, woven filter cloth
Air slide fabrics are used in various industries for pneumatic conveying, discharge, homogenising and fluidising of powdered or granular materials. They are used on pneumatic conveyors, silos of every type, vehicle trucks and ail-wagons and also in ships.
Thickness, 4mm, 6mm, 8mm
Standard length, up to 500 m (1650 ft. )
Applications, industry, agriculture, fluidising and aeration of bulk powders
Material Structure, high tencity polyester yarn, circular woven in plain weave, one side polyurethane-coating, for maximumair permeability on the uncoated side, specially designed for good air transport
Temperature range: -30C ~ 100 C

Specification	Linear density deviation	Breaking tenacity (cN/dtex)	Elongation at break 22%	Hot air shrinkage (132ºC×15min×0.05g/d)	Twist/meter (T/M)
150D-500D/70f	±3%	>=5.6	±3	<=4%<>	60-200
600D-840D/144f	±3%	>=6.2	±3	<=6%<>	60-200
1000D-1260D/144f	±3%	>=6.2	±3	<=8%<>	40-150
1680D-3000D/288f	±3%	>=6.1	±3	<=10%<>	40-150
4000D-10000D	±3%	>=6.1	±3	<=10%<>	40-100

<=4%<><=6%<><=8%<><=10%<><=10%<>
88/5000
It is used in the belt conveyor belt to play the role of carrying and transporting materials of rubber and fiber, metal composite products, or plastic and fabric composite products. Conveyor belt is widely used in cement, coking, metallurgy, chemical industry, iron and steel and other industries where the conveying distance is short and the conveying volume is small Advantages
No moisture absorption No caking Resistant to rotting and decomposition Complete unloading without residues Consistent fluidization over the complete surface Good resistance to abrasion Low wear and therefore longer life Low shrinkage even when used under hot and humid conditions Working principle
In cement plant:
An Airslide belt is in the middle of a chute. Powder material will come into the chute above Airslide belt. Material will flow to the chute lower side as pneumatic blower down Airslide belt. That's why we say Airslide belt can move powder material because of the wind power. And then, the rest wind will go out from the top of the chute. Through the moving, no parts moved except powder material. So that it can spare more energy and maintain cost, etc.
In fluidization silo:
Our Airslide canvas is installed on the surface of the silo bottom. It is supplied for installation as aeration units on the sloped conical bottoms of bins and silos to aid in the withdrawal of dry relatively free-flowing material.
Each Airslide aeration unit package consists of 200mm open-type. Airslide conveyor units in lengths of 1.5 or 3m depend on the slope length of the conical storage area. Some spoke patterns are normally used with materials which have good fluidization characteristics. Others spoke patterns provide maximum aeration for difficult materials which can be fluidized.

In cement vessel's hold:
The sloped bottom of the cargo hold is covered with fluidizing panels. Our airslide fabric is on the surface of fluidizing panels. Rotary piston blowers supply the panels with oil-free compressed air and make the cement flow to the lowest point, where the discharge gate is installed. Powder and particulate material available the Airslide canvas fabric conveyor belt
Application:
In industry
Power Stations: Filtered dust, Flue ash, discharging flue ash, Coal dust
Building and Construction: Cement, furnace dust, gypsum, limestone, finely ground quartz, Calcium hydroxide, lead monoxide, quicklime, acid crystals, Pure clay, phosphates, magnesite concentrate, finely ground fluorid, production of aluminum
Chemical Industry:Thomas meal (Fertilizer), Rubber compounds, sinter dust, catalysts,Sodium sulfate, Soap powder

In machinery:
Silos / Tanks : Discharging systems, Warehouse units, Mixing equipment, Homogenizing systems
Chute Bottoms: Conveyor systems, Ventilator systems, Aeration systems
Vehicles : Silo truck discharging cones, Railway wagon discharging cones, Vessel aeration & discharging bottoms, Container aeration & discharging bottoms
Powder Coating Machinery
Bottoms for sinter basin
